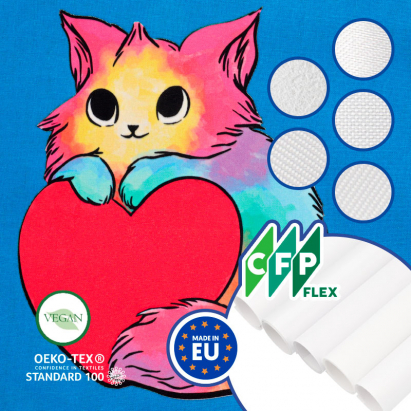

LIBERTY PATCH is a sublimation thermo-adhesivepolyester film for heat textile transfer on light and dark cotton, polyester and their blends
Printable on its textured side
The vinyl is also available with anti-sublimation or blockout properties (S901TSB) which prevents the original garment colour from "sublimating" and contaminating the vinyl colour
Can be cut with a plotter, scissors and a cutter
Oeko-Tex Standard 100 class I certifies that the raw materials used are environmentally friendly, free of PVC, solvents, plasticisers and heavy metals
Made in France by CFP Flex
THINGS TO KEEP IN MIND
For small designs and/or with details it may be convenient to use a high tack application tape (PT 850), which you will find in Related Products
When using a carrier sheet you must remember that, since it is made of polyester, some of the ink may remain on it due to resublimation. To avoid this, we recommend pressing it for a short time (2-3 seconds), removing the carrier from the vinyl, and pressing it again
After printing the vinyl with sublimation ink, it should be left to dry. Transfer it to the garment once the ink is dry to the touch
In the case of nylon, it is advisable to test beforehand
COMPARISON TABLE
Fabric
Canvas
Twill
Nonwoven
Twill
Anti-sublimation canvas
Finish
Gloss
Satin
Matte
Matte
Matte
Supplier code
S901T
S902T
S903T
S904T
S901TBS
Supplier reference
Subli
Subli Satin
Subli Soft
Subli Twill
Subli Blocksub
Thickness (μ)
300
210
280
230
380
SUBLIMATION SETTINGS
CANVAS (S901T), NONWOVEN (S903T), TWILL (S904T) and ANTI-SUBLIMATION CANVAS (S901TSB)
Temperature: 190 °C
Pressure: 5.0 - 6.0 bar [very high pressure]
Time: 50 seconds
Hot peel
SATIN TWILL (S902T)
Temperature: 170 °C
Pressure: 1.0 - 2.0 bar [low pressure]
Time: 80 seconds
Hot peel
Important: before sublimating, preheat the press platens. Press at 170ºC for 30 seconds without anything on it. This way the lower platen will reach the same temperature as the upper platen and the heat distribution will be more even
TRANSFER PARAMETERS
Temperature: 150 °C
Pressure: 2.5 - 3.0 bar [medium pressure]
Time: 20 seconds
APPLICATION INSTRUCTIONS
CANVAS (S901T), NONWOVEN (S903T), TWILL (S904T) and ANTI-SUBLIMATION CANVAS (S901TSB)
Print the design in mirror image on sublimation paper
Preheat the press to 190ºC
Place the HTV in the press with the paper's printed side against it
Press for 50 seconds, very high pressure
Remove the hot sublimation paper
Cut the vinyl with a plotter using a standard blade
Remove the excess vinyl (peeling/weeding)
Preheat the press to 150ºC
Place the garment on the press and pre-press for 4-5 seconds to remove wrinkles and moisture from the fabric
Take the vinyl off its liner and place it on the garment
Cover with protective paper
Press for 20 seconds, medium pressure
SATIN TWILL (S902T)
Print the design in mirror image on sublimation paper
Preheat the press to 170ºC
Heat the platens of the press. Press for 30 seconds without anything else on it. This way the lower platen will reach the same temperature as the upper platen and the heat distribution will be more even
Place the HTV in the press with the paper's printed side against it
Press for 80 seconds, low pressure
Remove the hot sublimation paper
Cut the vinyl with a plotter using a standard blade
Remove the excess vinyl (peeling/weeding)
Preheat the press to 150ºC
Place the garment on the press and pre-press for 4-5 seconds to remove wrinkles and moisture from the fabric
Take the vinyl off its liner and place it on the garment
Cover with protective paper
Press for 20 seconds, medium pressure
WASH RESISTANCE
Wait 24 hours before the first wash
Wash resistance: 60ºC (S901T, S902T, S903T, S904T) and 95ºC (S901TSB) max. 40ºC max. for nylon
Avoid the use of aggressive detergents
STORAGE RECOMMENDATIONS
Store in a warm, dry place, away from direct sunlight
