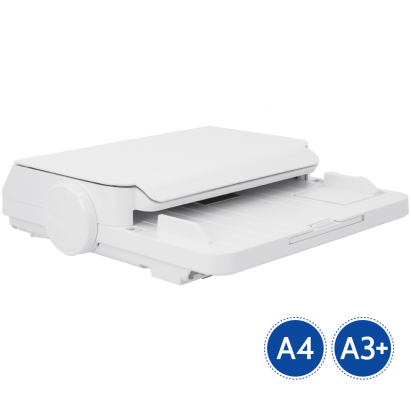

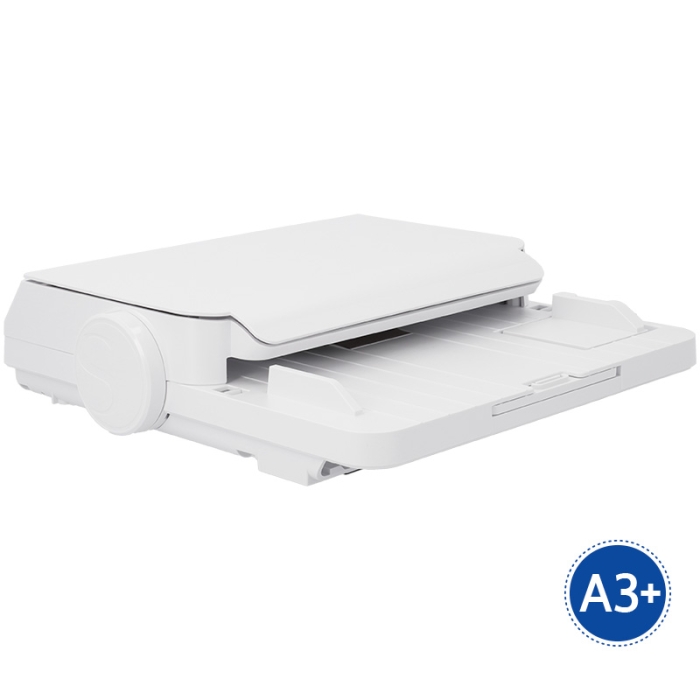

Silhouette Auto Sheet Feeder

Silhouette Auto Sheet Feeder

Auto sheet feeders for Silhouette cutting machines. Perfect for simplifying the bulk cutting process by automatically loading sheet materials into your cutting machine.

  • Allows sheet blocks up to ±4.4 mm thick
  • Suitable for photo paper, sticker paper and other rigid sheet materials
  • Available sizes: A4 (Portrait 3 and 4, Cameo 4 and 5) and A3 Plus (Cameo 4 Plus and Pro, Cameo 5 Plus)

More information


Reward Points
Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program

More information about the Silhouette Auto Sheet Feeder

INDEX

> Description

> Things to keep in mind

> What do the sheet feeders include?

> System requirements

> Instructions for use

> Dimensions (approx.)

DESCRIPTION

  • Can load approximately 20 sheets at a time. Depends on the thickness of the material
  • Unlocks the bar code function in any edition of Silhouette Studio software (usually exclusive to Business Edition). This feature allows you to print and cut different designs on multiple sheets with your cutting machine
  • Compatible with all “Carriage 1” tools
  • Connects to the computer via USB cable

THINGS TO KEEP IN MIND

  • Including a part to adapt the feeder to the Cameo 5 and Cameo 5 Plus plotter
  • Curled or electrostatically charged media may not be used
  • If the media gets stuck, use the 2 side tabs of the feeder to get it out
  • No cutting blanket required
  • Does not work with Bluetooth

WHAT DO THE SHEET FEEDERS INCLUDE?

Power divider cable
Hi-Speed USB 2.0 cable
Positioning base
Safety data sheet

SYSTEM REQUIREMENTS

  • Silhouette Studio Software version 4.5.117 or higher
  • Windows 8.1/ 10/ 10 (or higher) O Mac OS X 10.14 (or higher)
  • 2 GHz processor
  • 4 GB RAM
  • 2 GB available hard disk space
  • USB port

INSTRUCTIONS FOR USE

  1. Fit the base to the bottom of the cutting machine. It has holes to place the feet of the cutting machine
  2. Attach the sheet feeder to the base
  3. Connect the power splitter to the cutting machine and the sheet feeder. Plug the cable into a power source (use the same cable you usually plug your machine into)
  4. Connect the cutting machine to the sheet feeder using the short USB cable
  5. Finally, plug the sheet feeder into the computer using the long USB cable supplied with your cutting machine
  6. Feed the sheets into the top tray of the sheet feeder
  7. Select the type and the number of copies you wish to cut from the Silhouette Studio software. This will send it to the machine for processing
  8. The feeder will load the sheets one by one and eject them below the Auto Sheet Feeder or behind the machine

DIMENSIONS (APPROX.)

Reference no. 049833 049834
Reference Silhouette SHEET-FEEDER-LETTER SHEET-FEEDER-A3PLUS
Model A4 A3 Plus
Sheet format

A4 and US Letter size
(21 x 29.7 cm)

A4 and US Letter size up to A3
(33 x 48 cm)

Suitable cutting
machines

Portrait 3 and 4
Cameo 4 and 5

Cameo 4 Plus and Pro
Cameo 5 Plus

Auto Sheet Feeder (cm) 32 x 31 x 8.5 45 x 37 x 8.5
Weight (kg) 1.210
2.358
