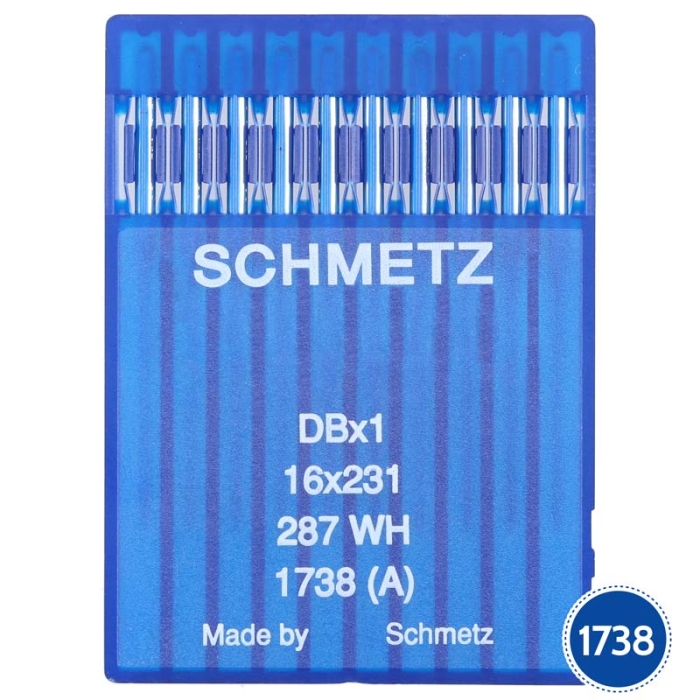

Schmetz Needles System 1738

To watch this video you need to accept marketing cookies.
Schmetz Needles System 1738
Schmetz needles from the system 1738 for domestic, high-speed, and overlock sewing machines.
- 4 types of points: round (R), medium ball (SUK), small ball (SUS), and spear (LR)
- Needle thickness from 60 to 110 Nm

Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program
Related Products
More information about Schmetz Needles System 1738
INDEX
DESCRIPTION
- Needles with a round shank from system 1738, also known as 287 WH, 1738 (A), DBx1, 16x251, 16x231, and SY 2270
- 4 types of points:
- Slightly rounded (R): for general sewing
- Medium ball (SUK): for medium-thickness fabrics
- Small ball (SES): for fine and knit fabrics
- Spear (LR): for leather fabrics
- Each needle displays two numbers: the first (Nm) indicates the thickness in millimetres, and the second (Singer Size) its equivalent in the American system
- Various needle thicknesses to suit different types of fabric:
- 60 - 70 Nm: fine and delicate fabrics such as silk, chiffon, or rayon
- 80 - 90 Nm: medium and heavy fabrics such as denim, corduroy, velvet, or synthetic leather
- 100 Nm: heavy fabrics such as canvas, synthetic leather, wool, or gabardine fabric
- 110 Nm: very heavy fabrics such as loden, canvas, oilcloth, or coat fabrics
THINGS TO KEEP IN MIND
- The presentation format of the needles may differ from that shown in the photographs. The product may be delivered in a plastic box or bag
TECHNICAL DATA
| Ref. | Nm/Size | Point |
| 009365 | 60/8 | R |
| 004140 | 60/8 | SUK |
| 004141 | 65/9 | SUK |
| 004142 | 70/10 | R |
| 004143 | 70/10 | SES |
| 004144 | 70/10 | SUK |
| 004145 | 75/11 | R |
| 004146 | 75/11 | SUK |
| 004147 | 80/12 | R |
| 004148 | 80/12 | SES |
| 004149 | 80/12 | SUK |
| 004152 | 90/14 | R |
| 004153 | 90/14 | SES |
| 004154 | 90/14 | SUK |
| 004157 | 100/16 | R |
| 004158 | 100/16 | SUK |
| 004161 | 100/16 | LR |
| 004162 | 110/18 | R |
| 004163 | 110/18 | SUK |
RECOMMENDATIONS
- Change the needle regularly to avoid damaging fabrics or breaking threads. It is the simplest way to improve stitch quality
- Select the needle thickness according to the thread you use, and the type of point according to the fabric and application
