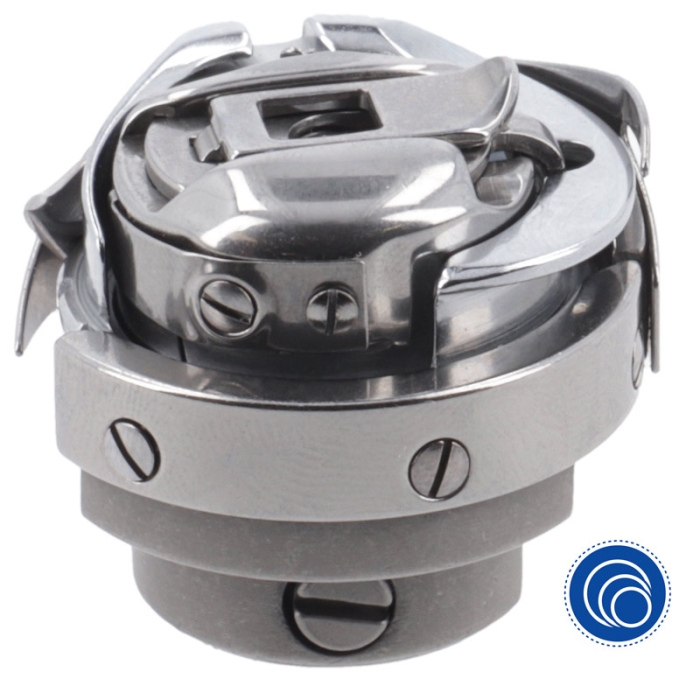

Bobbin Cases, Hooks and Bobbins
Bobbin Cases, Hooks and Bobbins
3 essential accessories to ensure precise stitching in your sewing and embroidery projects.
- 2 different sizes of bobbin holders and hooks: standard and large (jumbo)
- Bobbin holders available in 2 qualities: econo and quality
More information
https://www.brildor.com/en/bobbin-cases-hooks-bobbins-sewing-machines
52295
Bobbin Cases, Hooks and Bobbins
<p><a name="know-more"></a></p>
<h2>More information about the Bobbin Cases, Hooks and Bobbins</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more3">Things to keep in mind</a></p>
<p>> <a href="#know-more4">Bobbin case and hook compatibility</a></p>
<p>> <a href="#know-more2">Dimensions</a></p>
<p> </p>
<p><a name="know-more1"></a></p>
<p><strong>DESCRIPTION</strong></p>
<ul>
<li>Bobbin cases designed to keep the bobbin in the correct position within the sewing machine's hook system. They ensure the thread unwinds evenly and without interruptions</li>
<li>With a blue zigzag-shaped metal piece that holds the thread spool in place and prevents it from shifting. All models except Ref. 003971</li>
<li>The hooks form stitches by catching the upper thread (from the needle) and looping it around the lower thread (contained in the bobbin)</li>
<li>The bobbins keep the lower thread under tension, working together with the bobbin case and hook to form stitches during sewing</li>
<li>All parts are easy to install and replace</li>
</ul>
<p> </p>
<p><a name="know-more3"></a></p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>Ensure to check the dimensions and compatibility with your sewing machine to guarantee a precise fit and optimal performance</li>
<li>Regularly clean each part to avoid issues such as thread jams, skipped stitches, or uneven tension</li>
<li>For the hook with Ref. 003964, the bobbin cases to use are Ref. 003969 and 003970</li>
<li>For the hook with Ref. 003966, the bobbin cases to use are Ref. 003971 and 003972</li>
</ul>
<p> </p>
<p><a name="know-more4"></a></p>
<p><strong>BOBBIN CASE AND HOOK COMPATIBILITY</strong></p>
<table>
<tbody>
<tr>
<td> </td>
<td style="text-align: center;"><strong>Bobbin Case</strong><br><strong> Ø21x14mm Econo<br></strong>Ref. 003969<strong><br></strong></td>
<td style="text-align: center;"><strong>Bobbin Case</strong><br><strong>Ø21x14mm Quality<br></strong>Ref. 003970<strong><br></strong></td>
<td style="text-align: center;"><strong>Bobbin Case</strong><br><strong> Ø26x15mm Econo<br></strong>Ref. 003971<strong><br></strong></td>
<td style="text-align: center;"><strong>Bobbin Case</strong><br><strong> Ø26x15mm Quality <br></strong>Ref. 003972<strong><br></strong></td>
</tr>
<tr>
<td><strong>Hook Ø21mm <br></strong>Ref. 003964<strong><br></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
</tr>
<tr>
<td><strong>Hook Ø26mm <br></strong>Ref. 003966<strong><br></strong></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
</tr>
</tbody>
</table>
<p><a name="know-more2"></a></p>
<p> </p>
<p><strong>DIMENSIONS</strong></p>
<p><strong>BOBBIN CASES</strong></p>
<table>
<tbody>
<tr>
<td><strong>Reference</strong></td>
<td style="text-align: center;"><strong>003969</strong></td>
<td style="text-align: center;"><strong>003970</strong></td>
<td style="text-align: center;"><strong>003971</strong></td>
<td style="text-align: center;"><strong>003972</strong></td>
</tr>
<tr>
<td><strong>Quality</strong></td>
<td style="text-align: center;">Econo</td>
<td style="text-align: center;">Quality</td>
<td style="text-align: center;">Econo</td>
<td style="text-align: center;">Quality</td>
</tr>
<tr>
<td><strong>Outer diameter<span class="naranja-negrita"><sup>* </sup></span>(mm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">Ø21</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø21</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø26</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø26</span></td>
</tr>
<tr>
<td><strong>Inner diameter<span class="naranja-negrita"><sup>** </sup></span>(mm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">Ø4</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø4</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø4</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø4</span></td>
</tr>
<tr>
<td><strong>Height (mm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">14</span></td>
<td style="text-align: center;"><span class="azul-negrita">14</span></td>
<td style="text-align: center;"><span class="azul-negrita">15</span></td>
<td style="text-align: center;"><span class="azul-negrita">15</span></td>
</tr>
<tr>
<td><strong>Weight (g)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">11</span></td>
<td style="text-align: center;"><span class="azul-negrita">11</span></td>
<td style="text-align: center;"><span class="azul-negrita">15</span></td>
<td style="text-align: center;"><span class="azul-negrita">16</span></td>
</tr>
</tbody>
</table>
<p><span style="font-size: 10pt;"><span class="naranja-negrita"><sup>(*)</sup></span> Measurement of the outer edge from side to side</span></p>
<p><span style="font-size: 10pt;"><span class="naranja-negrita"><sup>(**)</sup> </span>Measurement of the central hole of the bobbin case</span></p>
<p><strong>HOOKS</strong></p>
<table>
<tbody>
<tr>
<td><strong>Reference</strong></td>
<td style="text-align: center;"><strong>003964</strong></td>
<td style="text-align: center;"><strong>003966</strong></td>
</tr>
<tr>
<td><strong>Outer diameter (mm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">Ø34</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø39</span></td>
</tr>
<tr>
<td><strong>Inner diameter (mm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">Ø22</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø27</span></td>
</tr>
<tr>
<td><strong>Shaft diameter (mm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">Ø4</span></td>
<td style="text-align: center;"><span class="azul-negrita">Ø4</span></td>
</tr>
<tr>
<td><strong>Depth (mm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">9</span></td>
<td style="text-align: center;"><span class="azul-negrita">10</span></td>
</tr>
<tr>
<td><strong>Height (mm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">26</span></td>
<td style="text-align: center;"><span class="azul-negrita">29</span></td>
</tr>
<tr>
<td><strong>Weight (g)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">65</span></td>
<td style="text-align: center;"><span class="azul-negrita">83</span></td>
</tr>
</tbody>
</table>
<p><strong>BOBBINS</strong></p>
<table>
<tbody>
<tr>
<td><strong>Outer diameter (mm)</strong></td>
<td><span class="azul-negrita">Ø21</span></td>
</tr>
<tr>
<td><strong>Inner diameter (mm)</strong></td>
<td><span class="azul-negrita">Ø6</span></td>
</tr>
<tr>
<td><strong>Height (mm)</strong></td>
<td><span class="azul-negrita">9</span></td>
</tr>
<tr>
<td><strong>Weight (g)</strong></td>
<td><span class="azul-negrita">236</span></td>
</tr>
</tbody>
</table>
