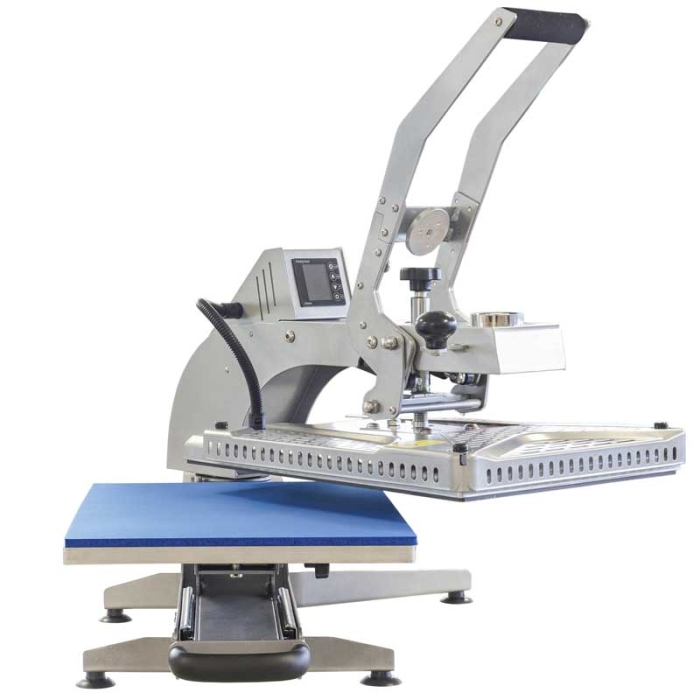

Rotating and Removable Magnetic Press Mate 450 Pro 40x50cm and Plates
Semi-automatic press for thermal transfers on textiles and rigid materials.
Manual closure with automatic opening by magnet, no compressor
Standard base and heat plate size: 40 x 50 cm
Removable base plate: Facilitates equipment and swapping the plate for another
Rotating heat plate. Prevents burns
Additional base plates available separately
More information
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about the Mate 450 Pro 40x50cm magnetic swing-away and pull-out heat press and its platens
INDEX
> Description
> Keep in mind
> Press measurements
> User manual
> Accessories
> Interchangeable platens
> Interchangeable platen measurements
> Technical data
> Warranty
DESCRIPTION
Semi-automatic : heat press with manual closing and automatic opening via an electromagnetic anchorHydraulic shock absorbers: offer smooth and safe machine closing and openingPull-out base : facilitates equipping or changing the platenSwing-away heat platen : prevents potential burnsAdjustable heat platen height : allows the height of the heat platen to be set at 5-10 cm from the base platen. Suitable for the curing process in DTF and the drying of pre-treatment in DTG Manual pressure adjustment : by turning the wheel located on the upper part of the heat platen according to the material to be printedBase platen with pad : provides a uniform transfer and protects the base platen LCD touchscreen panel : temperature and time settings. Includes a counterAudible alarm : Emits an acoustic signal at the end of the printing processStable structure : resistant and robust. Non-slip feet, one of which is longer to provide greater stability when rotating the heat platenCE/UKCA Certificates (SGS Audited) : certifies compliance with safety and quality standards in the EU and the United Kingdom, endorsed by SGS
KEEP IN MIND
The heat platen is not interchangeable, except in case of a fault
PRESS MEASUREMENTS
Closed press (cm) 42 x 47 x 68
Press with base platen extended 42 x 81 x 95
Open press with base platen closed 42 x 81 x 68
Packaging (cm) 42 x 92 x 70
Net weight (kg) 62
Gross weight (kg) 67
USER MANUAL
Mate 450 Pro Heat Press (Spanish) (.pdf - 0.69MB)
Mate 450 Pro Heat Press (English) (.pdf - 1.1MB)
ACCESSORIES
Lower Heat Platen (Ref. 056706)
Platen size: 40 x 50 cm
Heating area: 38 x 38 cm
Applies heat from below, improving thermal transfer and reducing pressing time
Facilitates adhesion on thick, multi-layered, or textured materials
Suitable for thick vinyls, 3D, patches... Improves adhesion and prevents design deformation
Time and temperature controller for the lower platen
Includes a Teflon cover and a 38 x 38 cm protective silicone pad
INTERCHANGEABLE PLATENS
Simple fixing with manual screws
Made of cast aluminium
Get other sizes and shapes to customise different items:
Labels: small textiles such as patches, fabric labels, handkerchiefs...
Sleeves: suitable for threading t-shirt sleeves
Trousers: appropriate for any leg length
Small garments: suitable for baby clothes, bandanas... or rigid items
Trainers: allows for the customisation of 2 trainers at once
Plates: sized for flat plates up to Ø18 cm
Caps: suitable for printing 4 caps at the same time
T-shirts: T-shirt-shaped structure. Includes a Teflon cover
Polo shirts: with a groove for placing the buttons and collar of shirts. Includes a Teflon cover
2 sleeves: facilitates printing 2 sleeves at once. Includes a Teflon cover
4 in 1: platen with grooves for printing garments with zips or buttons, such as jackets, shirts, polo shirts, and even labels
Can coolers: can customise 8 can coolers, or similar items, at once. Does not include a silicone pad to facilitate the complete printing of the coolers
Drying platen: for use in techniques such as drying DTG and screen printing inks or for curing in DTF and DTG . Iron structure with ventilation holes and a porous foam pad that facilitates breathability
INTERCHANGEABLE PLATEN MEASUREMENTS
Ref. 036186 036188 036187 036189 036190 053435 053437 053436 055428 055430 056313 053438 053592
Model Labels
1 sleeve
Trousers
Small
Trainers
Plates
Caps
T-shirts
Polo shirts
2 sleeves
4 in 1
Can
Drying
Base 12 x 12 12 x 45 18 x 38 30 x 35 14 x 34 Ø18 x 2 38 x 38 40 x 50 40 x 50 40 x 50 40 x 50 40 x 50 40 x 50
Platen thickness (cm) 2 2 2 2 2 1.5 4.5 1.5 1.5 1.5 1.5 0.4 3
Pad Silicone
Silicone
Silicone
Silicone
Silicone
Open
Open
Open
Open
Open
Open
Not
Silicone with
Cover included No
No
No
No
No
No
No
Yes
Yes
Yes
No
No
No
Pad 8 8 8 8 8 8 8 8 8 8 8 - 12
TECHNICAL DATA
Press type Magnetic / Swing-away
Base platen type Pull-out
Controller LCD V2
Pressure adjustment Manual
Base platen measurements (cm) 40 x 50
Maximum thickness for pressing (cm) 2
Pad thickness (cm) 8
Side opening angle (°) 145
Max. temperature (°C | °F) 232 | 450
Maximum pressure (kg) 450
Temperature accuracy (°C) ±4
Maximum time for sleep mode activation (min) 120
Timer (Sec) 0-999
Voltage (V - Hz) 110 - 60 | 220 - 50
Power (W) 1800 - 2200
Certifications CE/UKCA (SGS Audited)
WARRANTY
More Information
Ref.
953284
Print area (cm)
40 x 50
Power (W)
1800
Pressure regulation
Manual
Opening
Automatic
Closing
Manual
