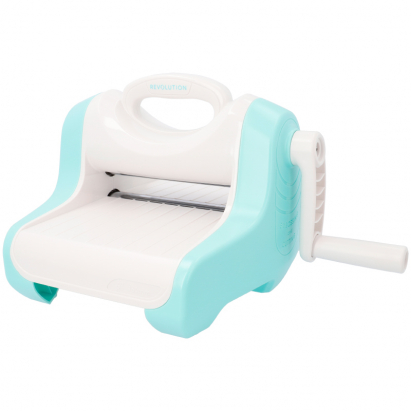

More information about the Revolution die-cutting and embossing machine by We R Memory Keepers and its accessories
Ideal for project life, die cuts, party decorations, cards, photo albums, envelopes, labels, packaging, and more.
Mechanism with 1 top and 1 bottom roller that will apply pressure and cut or emboss the material. Operated by a side crank.
Magnetic base on both sides. Prevents the die from moving when running it through the rollers.
Includes 1 clear die plate to use the machine as a die cutter. You can see through it and make sure the die is in the right position.
It also includes 1 embossing plate with the appropriate folders and accessories.
Suitable for die-cutting paper, cardboard and EVA foam. Can also be used for embossing paper, cardboard and aluminium foil.
Apart from the accessories that come with the machine, you can purchase the following shape dies separately: banner (Ref. 044939), tag (Ref. 044940), card (Ref. 044945) and assorted (Ref. 044946). Ref. 044945 includes an embossing piece.
The machine’s base has non-slip rubber to place it on a surface and prevent it from moving.
Compact and portable. Top grip for easy on-the-go crafting.
Delivered in a cardboard box.
THINGS TO KEEP IN MIND
The crank handle comes unassembled. It includes a hex key, screw and washer to place in the machine.
Roll plate through the machine back and forth for best results. Turn the crank forwards and backwards as many times as necessary.
WHAT DOES THIS MACHINE INCLUDE?
1
Revolution Tool
1
Platform
1
Magnetic Mat
1
Die Plate
1
Embossing plate
1
Instruction Manual
DIMENSIONS (APPROX.)
Machine
26.5 x 20.5 x 30 cm
Platform
15.5 x 23.1 x 1.9 cm
Magnetic Mat
15.2 x 23 x 0.3 cm
Die Cutting Plate
15.2 x 22.1 x 0.3 cm
Embossing Plate
15.3 x 22.9 x 0.06 cm
Max. Work Space
15.5 cm (6")
Packaging
36 x 24.7 x 29.5 cm
Gross weight (machine)
3.479 kg
Gross weight
4.914 kg

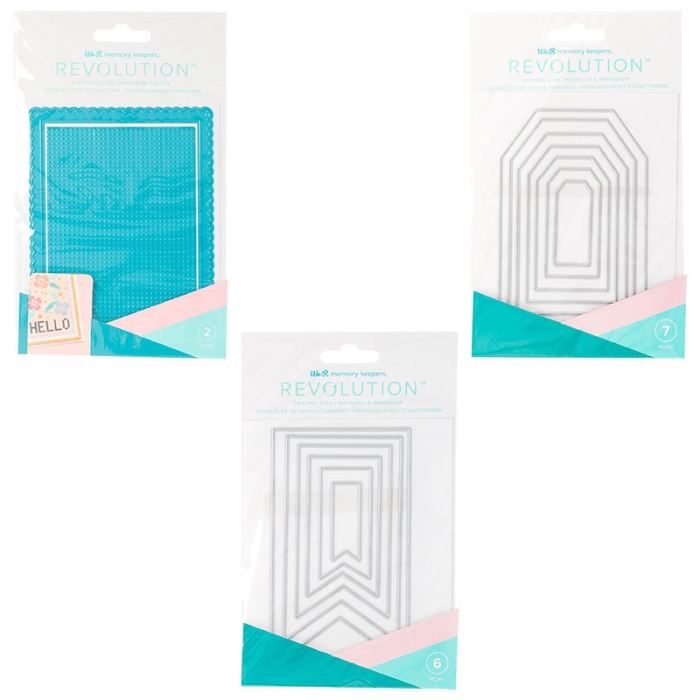

AVAILABLE DIES
Reference no.
Shape
Units
044939
Banner
6
044940
Tag
7
044945
Card(*)
2
044946
Assorted
16
044992
Heart
11
(*) 2-piece die. The frame is die-cut, and the rectangle has embossed dots creating a cross-stitch finish.
INSTRUCTIONS FOR USE
Make a sandwich: place the magnetic mat on the platform and the material you want to die-cut or emboss on top of it.
Then place the die. If you are going to emboss, put the folder instead.
Place the transparent plate for cutting or embossing, depending on the job you want to do.
Position the sandwich on the base of the machine and turn the handle so that the rollers start to rotate.
When it comes out of the back of the device, remove the transparent plate to reveal the result.
