Graphtec Vinyl Cutters Blades
Graphtec Vinyl Cutters Blades

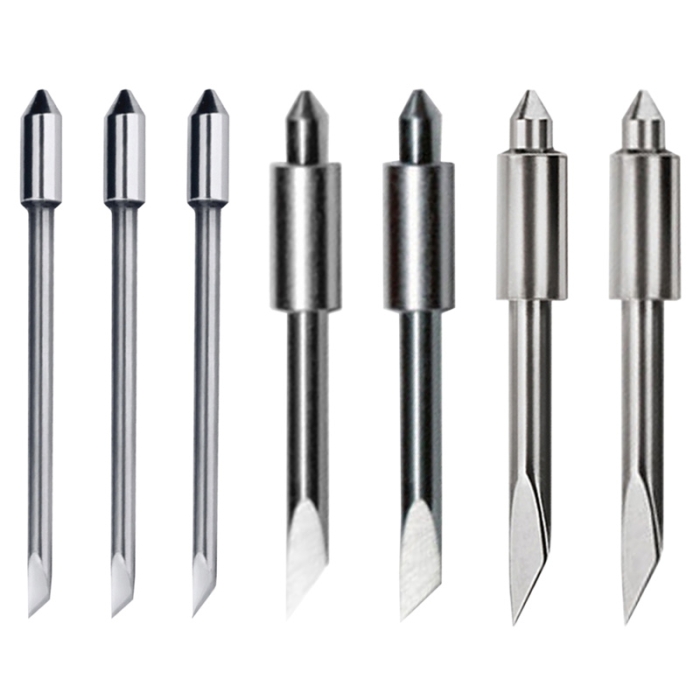

Original Graphtec blades from the CB09 and CB15 series, for use in Graphtec cutting plotters.
More information
https://www.brildor.com/en/graphtec-vinyl-cutters-blades
21757
Graphtec Vinyl Cutters Blades
<p><a name="know-more"></a></p>
<h2>More information about the Graphtec Vinyl Cutters Blades</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more2">Things to keep in mind</a></p>
<p>> <a href="#know-more3">Recommendations</a></p>
<p>> <a href="#know-more4">Technical data</a></p>
<p> </p>
<p class="enlace"><a id="know-more1"></a> </p>
<p><strong>DESCRIPTION</strong></p>
<ul>
<li>Different blade width sizes depending on the model: <span class="azul-negrita">0.9 mm</span> (CB09) and <span class="azul-negrita">1.5 mm</span> (CB15)</li>
<li>The blade cutting head is made of cemented carbide. This material provides high hardness and good wear resistance</li>
<li>The CB15 model has a larger diameter, allowing it to cut thicker materials</li>
<li>Blades compatible with Graphtec cutting plotters: CE6000Plus, CE6000, CE7000, CE8000, FC8600, FC9000, CE LITE-50, FC4500, FC2250, FCX2000, FCX4000</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>The greater the blade angle, the deeper it will penetrate vertically, allowing it to cut thicker materials</li>
<li>Conduct preliminary tests on the placement and adjustment of the blades before starting production</li>

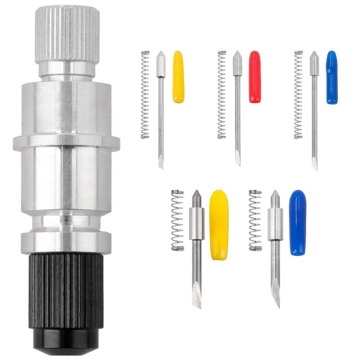

<li>We also offer <strong>compatible blades</strong> for your Graphtec cutting plotter, which you can find in <strong>Related Products</strong></li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more3"></a> </p>
<p><strong>RECOMMENDATIONS</strong></p>
<ul>
<li>Keep the blade clean. Accumulation of debris will hinder rotation and impair the cutting process</li>
<li>Make cuts with the appropriate depth. Avoid cutting the vinyl carrier paper or liner</li>
<li>If the blade is properly adjusted, you will extend its lifespan</li>
<li>Ensure you select the correct tool when changing it. The offset of each blade is predefined in the plotter</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more4"></a> </p>
<p><strong>TECHNICAL DATA</strong></p>
<table class="datos-tecnicos">
<tbody>
<tr>
<th style="width: 93.7812px; text-align: center;">Ref. BRILDOR</th>
<th style="width: 92.0938px; text-align: center;">Ref. Graphtec</th>
<th style="width: 71.2812px; text-align: center;">Cutting angle</th>
<th style="width: 94.0312px; text-align: center;">Diameter (mm)</th>
<th style="width: 103.812px; text-align: center;">Application</th>
</tr>
<tr>
<td style="text-align: center;">038363</td>
<td style="text-align: center;">CB09E</td>
<td style="text-align: center;"><span class="azul-negrita">45º</span></td>
<td style="text-align: center;"><span class="azul-negrita">0.9</span></td>
<td style="text-align: center;">General use - Material up to 0.25 mm thick</td>
</tr>
<tr>
<td style="text-align: center;">032496</td>
<td style="text-align: center;">CB09UB</td>
<td style="text-align: center;"><span class="azul-negrita">45º</span></td>
<td style="text-align: center;"><span class="azul-negrita">0.9</span></td>
<td style="text-align: center;">General use - Material up to 0.25 mm thick</td>
</tr>
<tr>
<td style="text-align: center;">033599</td>
<td style="text-align: center;">CB09UB-K60</td>
<td style="text-align: center;"><span class="azul-negrita">60º</span></td>
<td style="text-align: center;"><span class="azul-negrita">0.9</span></td>
<td style="text-align: center;">Thinner material 0.05 mm</td>
</tr>
<tr>
<td style="text-align: center;">033600</td>
<td style="text-align: center;">CB15U</td>
<td style="text-align: center;"><span class="azul-negrita">45º</span></td>
<td style="text-align: center;"><span class="azul-negrita">1.5</span></td>
<td style="text-align: center;">Thick material 200-500 g/mm<sup>2</sup></td>
</tr>
<tr>
<td style="text-align: center;">033601</td>
<td style="text-align: center;">CB15UA</td>
<td style="text-align: center;"><span class="azul-negrita">45º</span></td>
<td style="text-align: center;"><span class="azul-negrita">1.5</span></td>
<td style="text-align: center;">High-intensity reflective material 0.5 mm</td>
</tr>
<tr>
<td style="text-align: center;">033603</td>
<td style="text-align: center;">CB15U-K30</td>
<td style="text-align: center;"><span class="azul-negrita">30º</span></td>
<td style="text-align: center;"><span class="azul-negrita">1.5</span></td>
<td style="text-align: center;">Thicker material 1.1 mm thick </td>
</tr>
<tr>
<td style="text-align: center;">033602</td>
<td style="text-align: center;">CB15UA-K30</td>
<td style="text-align: center;"><span class="azul-negrita">30º</span></td>
<td style="text-align: center;"><span class="azul-negrita">1.5</span></td>
<td style="text-align: center;">High-intensity reflective material 1 mm</td>
</tr>
</tbody>
</table>
