Blades compatible with Graphtec cutting plotters and their blade holders.
Available for materials: thin (30º), standard (45º), and thick (60º).

More information



Reward Points
Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program

More information about the Compatible Blade Holders and Blades - Graphtec Vinyl Cutter

INDEX

> Description

> Things to keep in mind

> Recommendations

> Specifications

> Measurements

DESCRIPTION

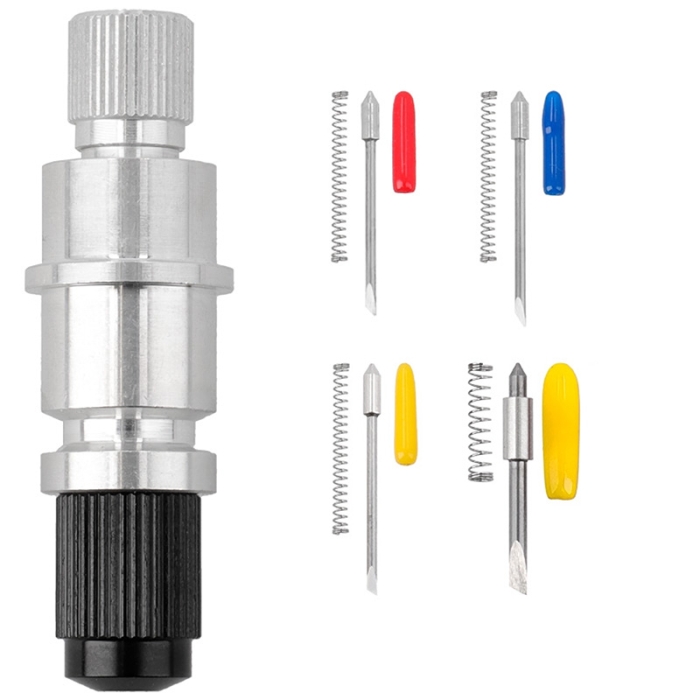

  • Different blade width sizes depending on the model: 0.9 mm (CB09) and 1.5 mm (CB15)
  • The CB09 and CB15 blades are not interchangeable. They require their respective blade holders
  • The cutting head of the blades is made of cemented carbide. This material provides high hardness and good wear resistance
  • The CB15 model has a larger diameter, allowing for cutting thicker materials
  • Aluminium alloy blade holders with adjustable cutting height

THINGS TO KEEP IN MIND

  • Ensure the blade is correctly fitted into the blade holder
  • The greater the blade angle, the deeper it will penetrate vertically, allowing for cutting thicker materials
  • The colour of the protective cap helps identify its angle: yellow for 30º, red for 45º, and blue for 60º
  • Conduct preliminary tests on blade placement and adjustment before starting production

RECOMMENDATIONS

  • Keep the blade and the inside of the blade holder clean. Accumulation of debris inside can hinder rotation and affect the cutting process
  • Make cuts with the appropriate depth. Avoid cutting through the vinyl carrier paper or liner
  • If the blade is properly adjusted, it will extend its lifespan
  • Ensure you select the correct tool when changing it. The offset of each blade is predefined in the plotter

SPECIFICATIONS

Ref. Brildor Model Cutting Angle Diameter (mm) Application Examples
050586 CB09 30º 0.9 Thin materials Window films
035531 CB15 30º 1.5
035529 CB09 45º 0.9 General use Flex vinyl and signage
035532 CB15 45º 1.5
035530 GT-BH09
for CB09
60º 0.9

Thick materials

Sandblast, reflective, flock vinyl, and card stock
035530 GT-BH15
for CB15
60º 1.5

















MEASUREMENTS

Blades (mm) Ø0.9/1.5 x 19
Blade Holders (mm)

Ø16.55 x 52

Gross Blade Weight (g) 16
Net Blade Weight (g) 2
Gross Blade Holder Weight (g) 16
Net Blade Holder Weight (g) 12
Additional Information
Ref. 923160
