Mini heat press for customising small or irregular surfaces with heat-requiring techniques such as DTF, sublimation, transfer, vinyl...
- 3 temperature levels
- Includes insulating base and protective cover
- Heating plate size: 6.1 x 10.5 cm
- Purchase the compatible protective cover separately
More information
https://www.brildor.com/en/gp-1-mini-heat-press
54399

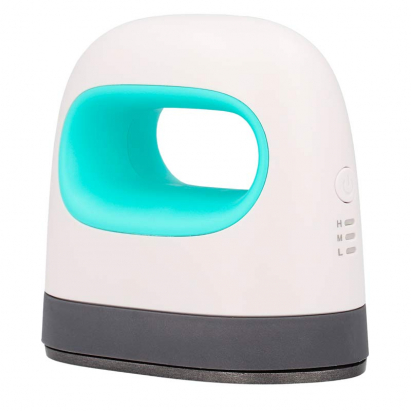

GP-1 Mini Heat Press
<p><a name="know-more"></a></p>
<h2>More information about the GP-1 Mini Heat Press</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more2">Things to keep in mind</a></p>
<p>> <a href="#know-more7">Temperature settings</a></p>
<p>> <a href="#know-more8">Instructions for use</a></p>
<p>> <a href="#know-more9">Usage recommendations</a></p>
<p>> <a href="#know-more10">Protective carrying case</a></p>
<p>> <a href="#know-more3">User manual</a></p>
<p>> <a href="#know-more4">Technical data</a></p>
<p>> <a href="#know-more5">Press dimensions</a></p>
<p>> <a href="#know-more11">Case dimensions</a></p>
<p>> <a href="#know-more6">Certificates and warranty</a></p>
<p> </p>
<p><a name="know-more1"></a></p>
<p><strong>DESCRIPTION</strong></p>
<ul>
<li>Compact, lightweight, and easy-to-carry heat press. Ideal for personalising shoes, caps, plush toys, clothing...</li>
<li>3 selectable temperature levels with a button: low (1 light), medium (2 lights), and high (3 lights)</li>
<li>Heat plate with a pointed tip for reaching difficult areas. Heats up quickly</li>
<li>Automatic shut-off after <span class="azul-negrita">10 min</span> of inactivity</li>
<li>Ergonomic handle for comfortable and safe handling</li>
<li>Operates with a European electrical plug</li>
<li>Drawstring closure protective pouch</li>
<li>Insulating base with non-slip feet to rest the press when not in use</li>
</ul>
<p> </p>
<p><a name="know-more2"></a></p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>Although it has an automatic shut-off, it is recommended to unplug it after use for safety</li>
</ul>
<p> </p>
<p><a name="know-more7"></a></p>
<p><strong>TEMPERATURE SETTINGS</strong></p>
<table>
<tbody>
<tr>
<td><strong>Temperature</strong></td>
<td style="text-align: center;"><strong>Low </strong><br><strong>(L)</strong></td>
<td style="text-align: center;"><strong>Medium</strong><br><strong>(M)</strong></td>
<td style="text-align: center;"><strong>High</strong><br><strong>(H)</strong></td>
</tr>
<tr>
<td><strong>Light indicator</strong></td>
<td style="text-align: center;">1 bar</td>
<td style="text-align: center;">2 bars</td>
<td style="text-align: center;">3 bars</td>
</tr>
<tr>
<td><strong>Degrees (ºC ≈ ºF)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">140</span> ≈ <span class="azul-negrita">284</span></td>
<td style="text-align: center;"><span class="azul-negrita">160 </span><strong>≈</strong> <span class="azul-negrita">320</span></td>
<td style="text-align: center;">
<p><span class="azul-negrita">190 </span><strong>≈</strong> <span class="azul-negrita">374</span></p>
</td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more8"></a></p>
<p><strong>INSTRUCTIONS FOR USE</strong></p>
<ul>
<li>To turn on: hold the button for <span class="azul-negrita">3 seconds</span>. The red light indicates heating; the green light indicates the temperature is reached</li>
<li>Select the temperature:
<ul>
<li>1 press: low</li>
<li>2 presses: medium</li>
<li>3 presses: high</li>
</ul>
</li>
<li>Use a timer to control the pressing time according to the material being customised</li>
</ul>
<p> </p>
<p><a name="know-more9"></a></p>
<p><strong>USAGE RECOMMENDATIONS</strong></p>
<ul>
<li>Always place on the insulating base when not in use</li>
<li>Keep out of reach of children</li>
<li>Do not immerse in water or use with wet hands</li>
<li>Do not use outdoors or near flammable materials</li>
<li>Do not leave unattended while turned on</li>
<li>Unplug when not in use or before cleaning</li>
<li>Do not use extension cords. Only connect to grounded outlets</li>
</ul>
<p> </p>
<p><a name="know-more10"></a></p>
<p><strong>PROTECTIVE CARRYING CASE</strong></p>
<ul>
<li>Rigid case compatible with the Cricut EasyPress 3 Mini and its previous model, now <span class="rojo-negrita">discontinued</span> (Ref. 038668)</li>
<li>Black plastic exterior resistant to impacts, scratches, splashes, and dust. Soft velvet-lined interior</li>
<li>With zipper closure and hand strap for easy transport</li>
<li>Internal mesh pocket for storing small accessories</li>
<li>Includes a velcro strap for cable organisation</li>
</ul>
<p> </p>
<p><a name="know-more3"></a></p>
<p><strong>USER MANUAL</strong></p>
<ul>
<li><a href="https://tinyurl.com/298jk22b" target="_blank" rel="noopener">GP-1 Mini Transfer Press</a> (.pdf - 0,13 MB)</li>
</ul>
<p> </p>
<p><a name="know-more4"></a></p>
<p><strong>TECHNICAL DATA</strong></p>
<table>
<tbody>
<tr>
<td><strong>Type of press</strong></td>
<td>Manual</td>
</tr>
<tr>
<td><strong>Voltage (V) </strong></td>
<td><span class="azul-negrita">220</span></td>
</tr>
<tr>
<td><strong>Power (W) </strong></td>
<td><span class="azul-negrita">250</span></td>
</tr>
<tr>
<td><strong>Frequency (Hz) </strong></td>
<td><span class="azul-negrita">60</span></td>
</tr>
<tr>
<td><strong>Temperature (ºC) </strong></td>
<td><span class="azul-negrita">140</span> (low)<br><span class="azul-negrita">190</span> (medium)<br><span class="azul-negrita">255</span> (high) </td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more5"></a></p>
<p><strong>PRESS DIMENSIONS</strong></p>
<table>
<tbody>
<tr>
<td><strong>Press (cm)</strong></td>
<td><span class="azul-negrita">6.1 x 10.5</span></td>
</tr>
<tr>
<td><strong>Heat plate dimensions (cm)</strong></td>
<td><span class="azul-negrita">6.1 x 10.5</span></td>
</tr>
<tr>
<td><strong>Cable length (cm)</strong></td>
<td><span class="azul-negrita">170</span></td>
</tr>
<tr>
<td><strong>Packaging (cm)</strong></td>
<td><span class="azul-negrita">16 x 15.5 x 9</span></td>
</tr>
<tr>
<td>
<p><strong>Weight (g)</strong></p>
</td>
<td><span class="azul-negrita">600</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more11"></a></p>
<p><strong>CASE DIMENSIONS</strong></p>
<table>
<tbody>
<tr>
<td><strong>Exterior (cm)</strong></td>
<td><span class="azul-negrita">17 x 12.5 x 8</span></td>
</tr>
<tr>
<td><strong>Interior (cm)</strong></td>
<td><span class="azul-negrita">16 x 11 x 6</span></td>
</tr>
<tr>
<td><strong>Weight (g)</strong></td>
<td><span class="azul-negrita">121</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more6"></a></p>
<p><strong>CERTIFICATES AND WARRANTY</strong></p>
<ul>
<li>CE certification ensures this press meets the technical requirements demanded in the European Union</li>
<li>As stipulated by law in: <a href="https://www.brildor.com/en/general-terms-and-conditions-for-the-sale#warranty" target="_blank" rel="noopener">General Terms and Conditions for the Sale of Goods</a></li>
</ul>
