2 ways of setting temperature and time: simple (pre-set parameters) or advanced (choosing parameters within a range)

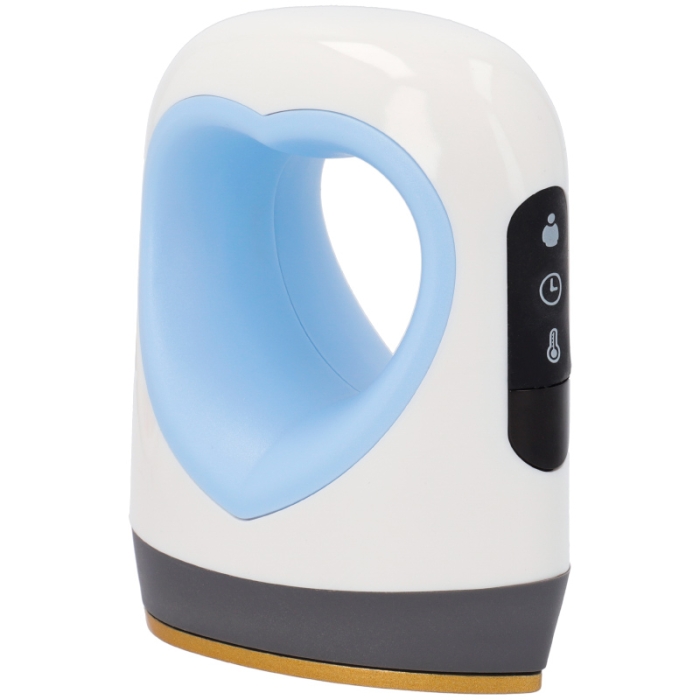

Control panel with buttons and display screen
Ergonomic heart-shaped handle
CE marking guarantees that this machine meets the technical requirements of the European Union
Warranty: 3 years against manufacturing defects
THINGS TO KEEP IN MIND
For sublimation on irregular hollow shapes such as hats or shoes, it is recommended to fill them or use supports to keep them firm and ensure even heat distribution
If you want to switch from advanced mode to simple mode, turn off the machine and long press the time or temperature button, depending on the desired setting, for 5 seconds until ON appears on the display
WHAT DOES THIS PRESS INCLUDE?
Safety base
1
Pad (15 x 13 cm)
1
Spray bottle (50 ml)
1
Carry bag
1
User manual
1
CONTROL PANEL
3 buttons with different functions:
Man icon: power on and off
Time icon: time setting and (+) button
Thermometer icon: temperature setting and (-) button
By pressing the time and the temperature icon at the same time for 3 seconds while the press is off, you can switch between ºC and ºF
SIMPLE MODE INSTRUCTIONS FOR USE
Plug the press and switch it on by pressing the on/off button (man icon) for 3 seconds. The display will show a green light
Access the temperature setting by pressing the thermometer button
Use the clock icon as a (+) button and the thermometer icon as a (-) button to choose the temperature. There are 4 levels available: 140ºC/ 284ºF, 165ºC / 329ºF,185ºC / 365ºF and 210ºC / 410ºF
Wait for the selected value to blink 4 times, and the press will set automatically
Access the time setting by pressing the clock button
Use the clock icon as a (+) button and the thermometer icon as a (-) button to choose the time within a range of 10 to 120 seconds in 5-second intervals
Wait for the selected value to blink 4 times, and the press will set automatically
You will hear a beep once the press has reached the selected temperature. Press the on/off button to activate the timer
Press the on/off button if you want to stop the machine before the set time is over
Hold press the on/off button for 3 seconds to turn it off
ADVANCED MODE INSTRUCTIONS FOR USE
Connect the press to the mains
To select the temperature, press the thermometer icon button for 5 seconds after switching off the press. The display will show OFF
Press the on/off button (man icon) for 3 secondsto turn the press on. The display will show a green light
Press the thermometer icon button to access the temperature setting
Use the clock icon as a (+) button and the thermometer icon as a (-) button to choose the time within a range of 60ºCto 210ºC(140ºF to 410ºF)
Wait for the selected value to blink 4 times, and the press will set automatically
Turn off the machine by pressing the on/off button for 3 seconds
To select the time, press the clock icon button for 5 secondsafter switching off the press. The display will show OFF
Press the on/off button (man icon) for 3 seconds to turn the press on. The display will show a green light
Press the clock icon button to access the time setting
Use the clock icon as a (+) button and the thermometer icon as a (-) button to choose the time within a range of 10to999 seconds
Wait for the selected value to blink 4 times, and the press will set automatically
You will hear a beep once the press has reached the selected temperature. Press the on/off button to activate the timer
Press the on/off button if you want to stop the machine before the set time is over
Hold press the on/off button for 3 seconds to turn it off
https://www.brildor.com/en/mini-heart-heat-press-craft-express48373Mini Heart Heat Press - Craft Express<p><a name="know-more"></a></p>
<h2>More information about the Craft Express Mini Heart Heat Press</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more2">Things to keep in mind</a></p>
<p>> <a href="#know-more3">What does this press include?</a></p>
<p>> <a href="#know-more4">Control buttons</a></p>
<p>> <a href="#know-more5">Simple mode instructions for use</a></p>
<p>> <a href="#know-more6">Advanced mode instructions for use</a></p>
<p>> <a href="#know-more7">Technical details</a></p>
<p> </p>
<p><a name="know-more1"></a></p>
<p><strong>DESCRIPTION</strong></p>
<ul>
<li>Small, light and <strong>portable</strong> heat press</li>
<li>2 ways of setting temperature and time: <strong>simple</strong> (pre-set parameters) or <strong>advanced</strong> (choosing parameters within a range)</li>
<li><strong>Control panel</strong> with buttons and display screen</li>
<li><strong>Ergonomic</strong> heart-shaped <strong>handle</strong></li>
<li><strong>CE marking</strong> guarantees that this machine meets the technical requirements of the European Union</li>
<li><strong>Warranty:</strong> 3 years against manufacturing defects</li>
</ul>
<p> </p>
<p><a name="know-more2"></a></p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>For sublimation on <strong>irregular hollow shapes</strong> such as hats or shoes, it is recommended to fill them or use supports to keep them firm and ensure even heat distribution</li>
<li>If you want to switch from <strong>advanced mode</strong> to <strong>simple mode</strong>, turn off the machine and long press the <strong>time or temperature button</strong>, depending on the desired setting, for <strong><span class="azul-negrita">5 seconds</span></strong> until <strong>ON</strong> appears on the display</li>
</ul>
<p> </p>
<p><a name="know-more3"></a></p>
<p><strong>WHAT DOES THIS PRESS INCLUDE?</strong></p>
<table>
<tbody>
<tr>
<td>Safety base</td>
<td>1</td>
</tr>
<tr>
<td>Pad (<span class="azul-negrita">15 x 13 cm</span>)</td>
<td>1</td>
</tr>
<tr>
<td>Spray bottle (<span class="azul-negrita">50 ml</span>)</td>
<td>1</td>
</tr>
<tr>
<td>Carry bag</td>
<td>1</td>
</tr>
<tr>
<td>User manual</td>
<td>1</td>
</tr>
</tbody>
</table>
<p> </p>
<p><a name="know-more4"></a></p>
<p><strong>CONTROL PANEL<br></strong></p>
<p>3 buttons with different functions:</p>
<ul>
<li><strong>Man icon</strong>: power on and off</li>
<li><strong>Time icon</strong>: time setting and (+) button</li>
<li><strong>Thermometer icon</strong>: temperature setting and (-) button</li>
</ul>
<p>By pressing the <strong>time </strong>and the <strong>temperature icon</strong> at the same time for <strong><span class="azul-negrita">3 seconds</span></strong> while the <strong>press is off</strong>, you can switch between <strong><span class="azul-negrita">ºC</span></strong> and <strong><span class="azul-negrita">ºF</span></strong></p>
<p> </p>
<p><a name="know-more5"></a></p>
<p><strong>SIMPLE MODE INSTRUCTIONS FOR USE<br></strong></p>
<ol>
<li>Plug the press and switch it on by pressing the <strong>on/off button</strong> (man icon) for <strong><span class="azul-negrita">3 seconds</span></strong>. The display will show a green light<span class="azul-negrita"><br></span></li>
<li>Access the <strong>temperature</strong> setting by pressing the <strong>thermometer button</strong></li>
<li>Use the <strong>clock icon</strong> as a (+) button and the <strong>thermometer icon </strong>as a (-) button to choose the temperature. There are 4 levels available: <strong><span class="azul-negrita">140ºC</span></strong>/ <strong><span class="azul-negrita">284ºF</span></strong>, <strong><span class="azul-negrita">165ºC </span></strong>/ <strong><span class="azul-negrita">329ºF</span></strong>,<strong><span class="azul-negrita">185ºC </span>/ <span class="azul-negrita">365ºF</span></strong> and <strong><span class="azul-negrita">210ºC </span>/ <span class="azul-negrita">410ºF</span></strong></li>
<li>Wait for the selected value to blink 4 times, and the press will set <strong>automatically</strong></li>
<li>Access the <strong>time</strong> setting by pressing the <strong>clock button</strong></li>
<li>Use the <strong>clock icon</strong> as a (+) button and the <strong>thermometer icon</strong> as a (-) button to choose the time within a range of <strong><span class="azul-negrita">10</span></strong> to <strong><span class="azul-negrita">120 seconds</span></strong> in <strong><span class="azul-negrita">5-second</span></strong> intervals</li>
<li>Wait for the selected value to blink 4 times, and the press will set <strong>automatically</strong></li>
<li>You will hear a beep once the press has reached the selected temperature. Press the <strong>on/off button</strong> to activate the timer</li>
<li>Press the <strong>on/off button</strong> if you want to stop the machine before the set time is over</li>
<li>Hold press the <strong>on/off button</strong> for <span class="azul-negrita">3 seconds</span> to turn it off</li>
</ol>
<p> </p>
<p><a name="know-more6"></a></p>
<p><strong>ADVANCED MODE INSTRUCTIONS FOR USE<br></strong></p>
<ol>
<ol>
<li>Connect the press to the mains</li>
<li>To select the <strong>temperature</strong>, press the <strong>thermometer icon button</strong> for <strong><span class="azul-negrita">5 seconds</span></strong> after <strong>switching off the press</strong>. The display will show <strong><strong>OFF</strong></strong></li>
<li>Press the <strong><strong>on/off button </strong></strong>(man icon) for <strong><span class="azul-negrita">3 seconds</span> </strong>to <strong><strong>turn the press on</strong>. </strong>The display will show a green light</li>
<li>Press the <strong><strong>thermometer icon button to</strong></strong> access the <strong><strong>temperature </strong></strong>setting</li>
<li>Use the <strong><strong>clock icon </strong></strong>as a (+) button and the <strong><strong>thermometer icon </strong></strong>as a (-) button to choose the time within a range of <strong><span class="azul-negrita">60ºC</span> </strong>to <strong><span class="azul-negrita">210ºC</span> </strong>(<strong><span class="azul-negrita">140ºF </span></strong>to <strong><span class="azul-negrita">410ºF</span></strong>)</li>
<li>Wait for the selected value to blink 4 times, and the press will set <strong><strong>automatically</strong></strong></li>
<li>Turn off the machine by pressing the <strong><strong>on/off button </strong></strong>for <strong><span class="azul-negrita">3 seconds</span></strong></li>
<li>To select the <strong><strong>time</strong>, </strong>press the <strong><strong>clock icon button </strong></strong>for <strong><span class="azul-negrita">5 seconds</span> </strong>after <strong><strong>switching off the press</strong>.</strong> The display will show <strong><strong><strong>OFF</strong></strong></strong></li>
<li>Press the <strong>on/off button</strong> (man icon) for <strong><span class="azul-negrita">3 seconds</span></strong> to <strong>turn the press on</strong>. The display will show a green light</li>
<li>Press the <strong>clock icon button</strong> to access the <strong>time</strong> setting</li>
<li>Use the <strong>clock icon</strong> as a (+) button and the <strong>thermometer icon</strong> as a (-) button to choose the time within a range of <span class="azul-negrita"><span class="azul-negrita">10</span> </span>to<span class="azul-negrita"> <span class="azul-negrita">999 seconds</span><br></span></li>
<li>Wait for the selected value to blink 4 times, and the press will set <strong>automatically</strong></li>
<li>You will hear a beep once the press has reached the selected temperature. Press the <strong>on/off button</strong> to activate the timer</li>
<li>Press the <strong>on/off button</strong> if you want to stop the machine before the set time is over</li>
<li>Hold press the <strong>on/off button</strong> for <span class="azul-negrita">3 seconds</span> to turn it off</li>
</ol>
</ol>
<p> </p>
<p><a name="know-more7"></a></p>
<p><strong>TECHNICAL DETAILS<br></strong></p>
<table>
<tbody>
<tr>
<td>Maximum temperature (ºC / ºF)</td>
<td><span class="azul-negrita">200</span> / <span class="azul-negrita">392<br></span></td>
</tr>
<tr>
<td>Time range (s)</td>
<td><span class="azul-negrita">0-999<br></span></td>
</tr>
<tr>
<td>Voltage (V / Hz)</td>
<td><span class="azul-negrita">220</span> / <span class="azul-negrita">50<br></span></td>
</tr>
<tr>
<td>Power (W)</td>
<td><span class="azul-negrita">300<br></span></td>
</tr>
<tr>
<td colspan="2"><strong>DIMENSIONS</strong><span class="azul-negrita"><br></span></td>
</tr>
<tr>
<td>Press (cm)</td>
<td><span class="azul-negrita">10 x 11 x 5.5<br></span></td>
</tr>
<tr>
<td>Heat platen (cm)</td>
<td><span class="azul-negrita"><strong>5.7 x 8.8</strong></span></td>
</tr>
<tr>
<td>Base (cm)</td>
<td><span class="azul-negrita">8.7 x 4 x 11.8<br></span></td>
</tr>
<tr>
<td>Carry bag (cm)</td>
<td><span class="azul-negrita">22 x 25.5<br></span></td>
</tr>
<tr>
<td>Press weight (g)</td>
<td><span class="azul-negrita">411<br></span></td>
</tr>
</tbody>
</table>https://www.brildor.com/media/catalog/product/p/l/plancha-caft-express-mini.jpg39.9outofstock39.939.900000https://www.brildor.com/media/catalog/product/p/l/plancha-caft-express-mini.jpg487345306153747/Heat Presses/Heat Presses/Special Heat Presses/Arts & Crafts/Arts & Crafts/Machines2022-07-29T09:02:03+0000
