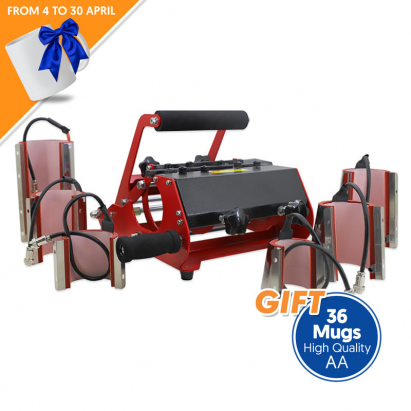

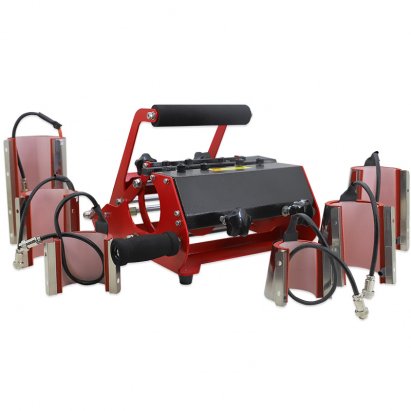

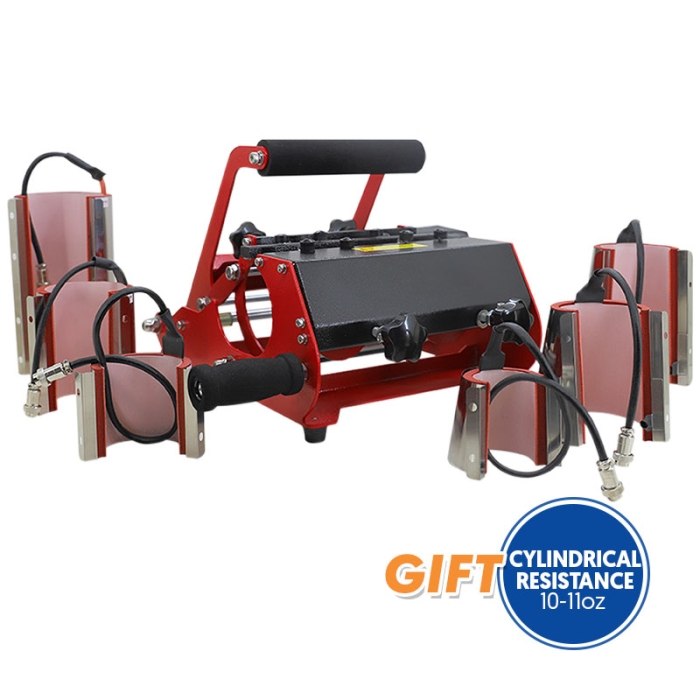

Includes 6 heating elements of different sizes: 1.5 oz, 2.5 oz, 6-9 oz, 12 oz, 17 oz, 12-15 oz. Cylindrical heating elements of other sizes available separately: 11 oz (long) and 10-11 oz
Easily interchangeable. Simply tighten or loosen the screws manually
The 6-9 oz, 10-11 oz, 12 oz, 17 oz and 12-15 oz heating elements are of high quality
Flat, wide, and dense heating wire that fully covers the surface of the heating element and ensures fast and uniform heat transfer
Interior silicone pad that allows pressure to be applied without damaging the surface of the object
Maximum flexibility to adapt to the surface of the object
3rd generation male connector

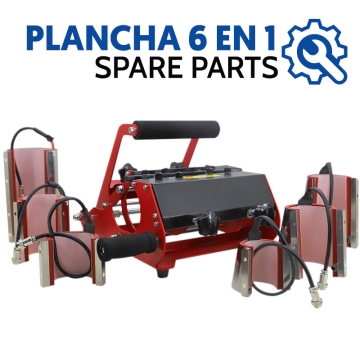

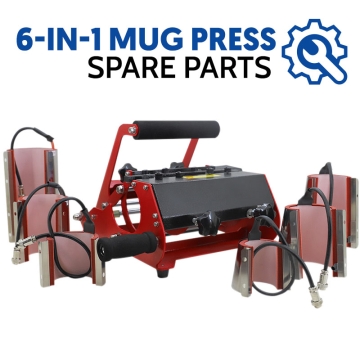

In Related Products you will find replacements for these heating elements
THINGS TO KEEP IN MIND
The heating elements of the BT-T5.1 and Combo Brildor BT-C5.1 (Ref. 000709) andBT-C8.1 (Ref. 004025) presses are compatible with this press, but not vice versa
The 10-11oz heating element Ref. 029823 is also compatible with the following mug press models: KT-5.1 (Ref. 034522) and BT-T5.1 (Ref. 031507)
The fabric lining of the long cylindrical heating element 12-15 oz may detach or form bubbles in areas that are not in contact with the object during heat transfer. To prevent this:
Always use it with objects that, due to their size, can be in contact with most of its interior surface. For example: bottles, jars, vases, etc.
TECHNICAL DATA
Press model
6-in-1 mug press
Press type
Manual/Mugs
Controller
Digital LCD screen model GY-04
Voltage (V)
220
Frequency (Hz)
60
Power (W)
130 - 260
Timer (s)
0 - 480
Temperature range (°C | °F)
0-225 | 0-437
Temperature precision
±0.5%
PRESS DIMENSIONS
Press (cm)
61 x 43 x 30
Packaging (cm)
58 x 36 x 36
Net weight (kg)
11.50
Gross weight (kg)
16.30
INCLUDED HEATING ELEMENTS DIMENSIONS
Dimensions provided by the manufacturer are for reference only. It is recommended to perform tests on the heating element with the product to be customized before starting production.
CYLINDRICAL
Capacity (oz)
A (cm)
B (cm)
Pad thickness (cm)
Cable (cm)
REFERENCE REPLACEMENT
1.5
14
8.5
1
50
----
6-9
21.98
13.3
1
24
032269
12-15
23
22
1
26
039237
CONICAL
Capacity (oz)
A (cm)
B (cm)
C (cm)
Pad thickness (cm)
Cable (cm)
REFERENCE REPLACEMENT
2.5
9.5
8
15
1
51
----
12
17
11.7
27
1
27
032270
17
17.5
16.4
23.5
1
27
032271
ADDITIONAL HEATING ELEMENTS DIMENSIONS
Dimensions provided by the manufacturer are for reference only. It is recommended to perform tests on the heating element with the product to be customized before starting production.
