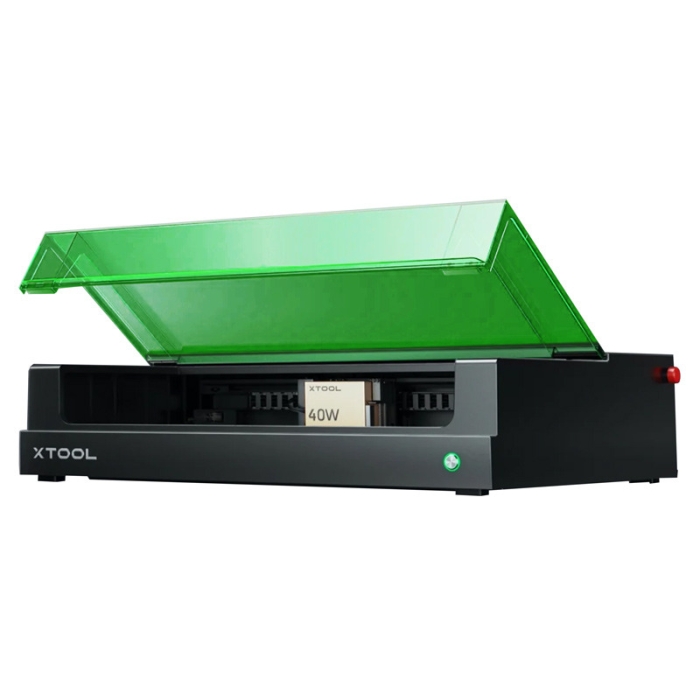

xTool S1 Diode Laser Cutting and Engraving Machines
<p><a name="know-more"></a></p>
<h2>More information about xTool S1 Diode Laser Cutting and Engraving Machines</h2>
<p> </p>
<p><strong>CONTENTS</strong></p>
<p>> <a href="#know-more1">Features</a></p>
<p>> <a href="#know-more2">Things to keep in mind</a></p>
<p>> <a href="#know-more3">What is included with the laser machine?</a></p>
<p>> <a href="#know-more4">Accessories</a></p>
<p>> <a href="#know-more0">What is included in the xTool S1 bundles?</a></p>
<p>> <a href="#know-more5">Accessory dimensions</a></p>
<p>> <a href="#know-more6">Support material</a></p>
<p>> <a href="#know-more7">Some materials that can be cut and engraved</a></p>
<p>> <a href="#know-more12">Warranty</a></p>
<p>> <a href="#know-more8">Technical specifications</a></p>
<p>> <a href="#know-more9">Related posts</a></p>
<p class="enlace"><a id="know-more1"></a> </p>
<p><strong>FEATURES</strong></p>
<ul>
<li><strong>Compact desktop design</strong>: offers all the features of a professional laser cutting and engraving machine for the personalisation sector</li>
<li><strong>Versatile:</strong> easily interchangeable modules for engraving metals. Engraves cylindrical, spherical, and curved surfaces...</li>
<li><strong>High laser power:</strong> eight <span class="azul-negrita">5.5 W</span> lasers combined in a single module provide power comparable to CO2 machines</li>
<li><strong>Autofocus:</strong> the head automatically descends, detects the distance to the material with the sensor, and sets the optimal laser height</li>
<li><strong>Dynamic focus:</strong> perfect for curved surfaces. Uses multipoint and digitises 3D objects. The electric Z-axis dynamically fine-tunes positioning</li>
<li><strong>Pin-Point Positioning:</strong> system uses real-time precise coordinates for exact, error-free placement. Digitally reproduces the object's outline without distortion</li>
<li><strong>Batch production:</strong> recognises the position of one or more objects and processes them in a single setup, reducing working time</li>
<li><strong>Honeycomb panel:</strong> allows air circulation to prevent stains caused by smoke during engraving or cutting</li>
<li><strong>Smart Air Assist:</strong> intelligent air assistant providing <span class="azul-negrita">30 L/min</span> airflow for cleaner, mark-free cutting</li>
<li><strong>User-friendly software:</strong> integrated AI, 3D model creation, and design editing tools. Also compatible with LightBurn software</li>
<li><strong>Four-level safety:</strong> five-sensor system that provides audible alerts and stops the machine upon flame detection. Alerts if the lid is opened, or if the machine is moved or tilted. Emergency stop button</li>
<li><strong>Lid with protective glass:</strong> complies with Class I laser safety standards, blocking laser light during operation</li>
<li><strong>Integrated air extraction system:</strong> includes a fan that expels smoke through the extraction tube (included). The tube must be directed outside the room</li>
<li><strong>Status indicator light button:</strong> indicates machine progress, lid lock, connection status, etc.</li>
<li><strong>Connectivity:</strong> Wi-Fi connection, USB port, PC connection port</li>
<li><strong>CE marking:</strong> label certifying that this machine meets all legal marketing requirements within the European Union</li>
</ul>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>Accessories are purchased separately and are not included with the machine</li>
<li>For enclosed workspaces with little ventilation, it is recommended to purchase the SafetyPro AP2 air filter. Replacements available in <strong>Related Products</strong></li>
</ul>
<p class="enlace"><a id="know-more3"></a> </p>
<p><strong>WHAT IS INCLUDED WITH THE LASER MACHINE?</strong></p>
<table>
<tbody>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>40 W diode laser module</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Distance sensor</td>
</tr>
<tr>
<td><span class="azul-negrita">1<br /></span></td>
<td>Honeycomb panel</td>
</tr>
<tr>
<td><span class="azul-negrita">1<br /></span></td>
<td>Smart Air Assist</td>
</tr>
<tr>
<td><span class="azul-negrita">2</span></td>
<td>Safety keys</td>
</tr>
<tr>
<td><span class="azul-negrita">11</span></td>
<td>M3*8 screws</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Screwdriver</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Storage box</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Smoke extraction tube</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Power cable</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Sample material pack</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>User manual</td>
</tr>
</tbody>
</table>
<p class="enlace"><a id="know-more4"></a> </p>
<p><strong>ACCESSORIES</strong></p>
<p><strong>SafetyPro AP2 Air Filter</strong></p>
<ul>
<li>Compact and efficient design: high-power motor and quiet operation (<span class="azul-negrita">55 dB</span>). Ideal for domestic and professional environments</li>
<li>Optimal filtration mode depending on material</li>
<li>6-layer filtration system: <br />
<ul>
<li>SuperCyclone filter: captures large particles. Extends pre-filter life by 10 times</li>
<li>Pre-filter: traps dust and lint, preventing them from reaching higher-efficiency filters</li>
<li>Medium efficiency filter: captures medium-sized particles such as pollen and mould spores, improving air quality</li>
<li>Activated carbon layer: absorbs harmful gases</li>
<li>Ultra-dense carbon mesh: absorbs up to 97.97% of odours, improving air quality</li>
<li>HEPA filter: capable of capturing at least 99.97% of particles 0.3 microns or larger</li>
</ul>
</li>
<li>Easy to clean and reuse: removable magnetic door design. Facilitates filter removal, washing, and replacement</li>
<li>Automatic on/off via Bluetooth connection</li>
<li>Clean the cyclone every 3–6 months. You can check its condition through the viewing window on the top of the purifier</li>
<li>Includes extraction tube, pipe connectors, and clamp</li>
</ul>
<p><strong>2W Infrared Laser Module</strong></p>
<ul>
<li>Allows engraving of materials not suitable for diode laser: acrylics, metals (gold, silver, stainless steel, iron, etc.)</li>
<li>Wavelength of <span class="azul-negrita">1064 nm</span></li>
<li>Ultra-small laser dots of <span class="azul-negrita">0.03 x 0.03 mm</span>. Provides near-photographic engraving resolution</li>
<li>Easily installed in the machine without special tools</li>
</ul>
<p><strong>Riser Base</strong></p>
<ul>
<li>Increases the machine's maximum working height from <span class="azul-negrita">42 mm</span> to <span class="azul-negrita">125 mm</span></li>
<li>Easy to fit. Placed under the machine without disassembly</li>
<li>Required for use with the rotary accessory</li>
</ul>
<p><strong>RA2 Pro Rotary Accessory</strong></p>
<ul>
<li>Engraves objects by rotating them precisely, on spherical and cylindrical shapes such as mugs, rings, bottles, etc.</li>
<li>Includes 4 different adapters for objects: roller rotation, chuck, sphere, and ring</li>
<li>2 cables to connect to xTool machines. Use the one compatible with your model</li>
<li>Requires the riser base for use</li>
</ul>
<p><strong>RA2 Pro Rotary Accessory Kit</strong></p>
<ul>
<li>Expands the capabilities of the RA2 Pro rotary accessory:
<ul>
<li><strong>More precise focus:</strong> the laser level marks the central axis on the piece held by the RA2 Pro, improving engraving quality</li>
<li><strong>Engrave in different positions:</strong> allows the object held by the RA2 Pro to be tilted up to <span class="azul-negrita">26º</span>. Achieve perfect alignment on conical pieces, engrave inside rings, etc.</li>
<li><strong>More convenient batch production:</strong> positioning pieces help move the RA2 Pro and position it in the same place without losing engraving parameters</li>
</ul>
</li>
<li>Easily installed on the rotary accessory, no additional tools required</li>
</ul>
<p><strong>Fire Safety Set</strong></p>
<ul>
<li>Detects, alerts with an audible alarm, and automatically extinguishes fire</li>
<li>Cuts off electricity to stop the machine. Then releases CO2 gas to put out the fire</li>
<li>Easy to install and use. Includes a user manual with detailed instructions</li>
<li>Operates with 4 bottles of non-toxic, odourless CO2 gas included in the set</li>
<li>Bottles are easy to replace after each use. Replacements available in <strong>Related Products</strong></li>
</ul>
<p><strong>Screen positioner for screen printing kit</strong></p>
<ul>
<li>Keeps the <a href="https://www.brildor.com/en/xtool-laser-screen-printing-basic-kit" target="_blank" rel="noopener">xTool screen printing kit </a>screen fixed and always in the same position </li>
<li>Prevents movement or displacement during engraving</li>
<li>Useful for multi-colour screen printing designs that require exact alignment between screens</li>
<li>Easily installed inside the machine</li>
</ul>
<p class="enlace"><a id="know-more0"></a> </p>
<p><strong>WHAT IS INCLUDED IN THE XTOOL S1 BUNDLES?</strong></p>
<p>We offer 3 bundle options: the <strong>xTool S1 Rotary Bundle</strong>, the <strong>xTool S1 Rotary Kit + 1064nm IR Bundle</strong>, and the <strong>xTool S1 All-in-one SafetyPro Bundle.</strong></p>
<table>
<tbody>
<tr>
<td><strong>xTool Bundle</strong></td>
<td style="text-align: center;"><strong>Rotary </strong></td>
<td style="text-align: center;"><strong>Rotary Kit +<br />1064nm IR</strong></td>
<td style="text-align: center;"><strong>All-in-1 <br />SafetyPro</strong></td>
</tr>
<tr>
<td><strong>Ref.</strong></td>
<td style="text-align: center;">056906</td>
<td style="text-align: center;">056907</td>
<td style="text-align: center;">056908</td>
</tr>
<tr>
<td><strong>XTool S1 40W<span class="naranja-negrita">*</span></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
</tr>
<tr>
<td><strong>Riser base</strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
</tr>
<tr>
<td><strong>RA2 Pro rotary accessory</strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
</tr>
<tr>
<td><strong>2W infrared module</strong></td>
<td style="text-align: center;"><span class="rojo-negrita">✗</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="rojo-negrita">✗</span></td>
</tr>
<tr>
<td><strong>SafetyPro AP2 filter</strong></td>
<td style="text-align: center;"><span class="rojo-negrita">✗</span></td>
<td style="text-align: center;"><span class="rojo-negrita">✗</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
</tr>
</tbody>
</table>
<p><sup><span class="naranja-negrita">(*)</span></sup> Includes the same as when purchasing the <a href="#know-more3">xTool S1 machine</a> separately.</p>
<p class="enlace"><a id="know-more5"></a> </p>
<p><strong>ACCESSORY DIMENSIONS</strong></p>
<table>
<tbody>
<tr>
<td><strong>Reference</strong></td>
<td style="text-align: center;"><strong>054912</strong><strong><span class="item-sku"><br /></span></strong></td>
<td style="text-align: center;"><strong>055777<br /></strong></td>
<td style="text-align: center;"><strong><span class="item-sku">054913</span></strong></td>
<td style="text-align: center;"><strong><span class="item-sku">051399</span></strong></td>
<td style="text-align: center;"><strong>055178</strong><strong><span class="item-sku"><br /></span></strong></td>
<td style="text-align: center;"><strong>055915</strong></td>
</tr>
<tr>
<td><strong>Accessory</strong></td>
<td style="text-align: center;">IR 2W laser<br />module</td>
<td style="text-align: center;">SafetyPro AP2<br />air filter</td>
<td style="text-align: center;">Riser<br />base</td>
<td style="text-align: center;">Rotary<br />accessory</td>
<td style="text-align: center;">Rotary accessory<br />kit</td>
<td style="text-align: center;">Fire safety<br />set</td>
</tr>
<tr>
<td><strong>Size (cm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">11.4 x 71.15 x 77.2<br /></span></td>
<td style="text-align: center;"><span class="azul-negrita">29 x 49.1 x 54.2</span></td>
<td style="text-align: center;"><span class="azul-negrita">76.5 x 56.1 x 94</span></td>
<td style="text-align: center;"><span class="azul-negrita">32 x 13.8 x 10.5</span></td>
<td style="text-align: center;"><span class="azul-negrita">26 x 16.5 x 10.5<br /></span></td>
<td style="text-align: center;"><span class="azul-negrita">25 x 7.5 x 10.5</span></td>
</tr>
<tr>
<td><strong>Packing (cm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">18 x 13 x 13<br /></span></td>
<td style="text-align: center;"><span class="azul-negrita">20.7</span></td>
<td style="text-align: center;"><span class="azul-negrita">82.2 x 61.7 x 15.6</span></td>
<td style="text-align: center;"><span class="azul-negrita">47 x 19.5 x 10</span></td>
<td style="text-align: center;"><span class="azul-negrita">19.2 x 31.5 x 11.3<br /></span></td>
<td style="text-align: center;"><span class="azul-negrita">40.5 x 11 x 33.5</span></td>
</tr>
<tr>
<td><strong>Net weight (kg)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">0.56<br /></span></td>
<td style="text-align: center;"><span class="azul-negrita">14</span></td>
<td style="text-align: center;"><span class="azul-negrita">6.8</span></td>
<td style="text-align: center;"><span class="azul-negrita">2.6</span></td>
<td style="text-align: center;"><span class="azul-negrita">1.03<br /></span></td>
<td style="text-align: center;"><span class="azul-negrita">0.51</span></td>
</tr>
</tbody>
</table>
<p class="enlace"><a id="know-more6"></a> </p>
<p><strong>SUPPORT MATERIAL</strong></p>
<ul>
<li>Scan the QR code you will receive with your equipment to access all the material for the installation, use, and maintenance of this machine. At the link, you can download instructions, manuals, and even tutorial videos</li>
</ul>
<p class="enlace"><a id="know-more7"></a> </p>
<p><strong>SOME MATERIALS THAT CAN BE CUT AND ENGRAVED</strong></p>
<p>Please note the diode laser does not engrave on transparent, translucent, or light-coloured materials.</p>
<table>
<tbody>
<tr>
<td><strong>Material</strong></td>
<td style="text-align: center;"><strong>Engrave</strong></td>
<td style="text-align: center;"><strong>Cut</strong></td>
</tr>
<tr>
<td><strong>Paper<br /></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
</tr>
<tr>
<td><strong>Wood<br /></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
</tr>
<tr>
<td><strong>Limewood</strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
</tr>
<tr>
<td><strong>Pine</strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
</tr>
<tr>
<td><strong>Walnut</strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
</tr>
<tr>
<td><strong>Corrugated cardboard</strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
</tr>
<tr>
<td><strong>Cork</strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
</tr>
<tr>
<td><strong>Black acrylic<br /></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
</tr>
<tr>
<td><strong>Leather<br /></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
</tr>
<tr>
<td><strong>Rubber</strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><span class="verde-negrita"><strong><span class="rojo-brildor">✗</span></strong></span></td>
</tr>
<tr>
<td><strong>Anodised metal</strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
</tr>
<tr>
<td><strong>Felt</strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
</tr>
<tr>
<td><strong>Slate<br /></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
</tr>
<tr>
<td><strong>Ceramic</strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
</tr>
<tr>
<td><strong>Dark glass</strong></td>
<td style="text-align: center;"><span class="verde-negrita">✔</span></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
</tr>
</tbody>
</table>
<p class="enlace"><a id="know-more12"></a> </p>
<p><strong>WARRANTY</strong></p>
<ul>
<li>As stipulated by law in: <a href="https://www.brildor.com/en/general-terms-and-conditions-for-the-sale#warranty" target="_blank" rel="noopener">General Terms and Conditions for the Sale of Goods</a></li>
</ul>
<p class="enlace"><a id="know-more8"></a> </p>
<p><strong>TECHNICAL SPECIFICATIONS</strong></p>
<table width="567">
<tbody>
<tr>
<td><strong>Laser type</strong></td>
<td>Diode</td>
</tr>
<tr>
<td><strong>Laser power (W)</strong></td>
<td><span class="azul-negrita">40</span></td>
</tr>
<tr>
<td><strong>Laser safety</strong></td>
<td>Class I</td>
</tr>
<tr>
<td><strong>Laser spot (mm)</strong></td>
<td><span class="azul-negrita">0.08 × 0.10</span></td>
</tr>
<tr>
<td><strong>Laser speed (mm/s)</strong></td>
<td><span class="azul-negrita">600</span></td>
</tr>
<tr>
<td><strong>Movement precision (mm)</strong></td>
<td><span class="azul-negrita"> 0.01</span></td>
</tr>
<tr>
<td><strong>Max. material thickness (mm)</strong></td>
<td>up to<span class="azul-negrita"> 18</span></td>
</tr>
<tr>
<td><strong>Working area (cm)</strong></td>
<td><span class="azul-negrita">49.7 x 31.7</span></td>
</tr>
<tr>
<td><strong>Max. working height<br />(without riser base) (mm)</strong></td>
<td>up to <span class="azul-negrita">42</span></td>
</tr>
<tr>
<td><strong>Max. working height<br />(with riser base) (mm)</strong></td>
<td>up to <span class="azul-negrita">125</span></td>
</tr>
<tr>
<td><strong>Voltage (V)</strong></td>
<td><span class="azul-negrita">25</span></td>
</tr>
<tr>
<td><strong>Connection</strong></td>
<td>Wi-Fi, USB,</td>
</tr>
<tr>
<td><strong>File formats</strong></td>
<td>SVG, DXF, JPG, JPEG, PNG, BMP</td>
</tr>
<tr>
<td><strong>Operating systems<br /></strong><strong>(Desktop | Mobile)</strong></td>
<td>Windows 10 / macOS / iPadOS / Android / iOS</td>
</tr>
<tr>
<td><strong>Compatible software</strong></td>
<td>xTool Creative Space / LightBurn</td>
</tr>
<tr>
<td><strong>Machine (cm)</strong></td>
<td><span class="azul-negrita">76.5 x 56.1 x 18.3</span></td>
</tr>
<tr>
<td><strong>Honeycomb panel (cm)</strong></td>
<td><span class="azul-negrita">56.5 x 37.5 x 2.7</span></td>
</tr>
<tr>
<td><strong>Smart Air Assist (cm)</strong></td>
<td><span class="azul-negrita">41.2 x 13.5 x 10.54</span></td>
</tr>
<tr>
<td><strong>Packing (cm)</strong></td>
<td><span class="azul-negrita">85 x 65 x 27.5</span></td>
</tr>
<tr>
<td><strong>Net weight (kg)</strong></td>
<td><span class="azul-negrita">20</span></td>
</tr>
<tr>
<td><strong>Gross weight (kg)</strong></td>
<td><span class="azul-negrita">24.80</span></td>
</tr>
</tbody>
</table>
<p class="enlace"><a id="know-more9"></a> </p>
<p><strong>RELATED POSTS</strong></p>
<p><a href="https://www.brildor.com/blog/es/materiales-maquina-laser-todo-necesitas-saber/" target="_blank" rel="noopener">Materials for your laser machine: Everything you need to know</a></p>
<p><a href="https://www.brildor.com/blog/es/elige-maquina-laser-xtool-perfecta-guia/" target="_blank" rel="noopener">Choose like an expert! Find your perfect xTool laser machine with this guide</a></p>
https://www.brildor.com/media/catalog/product/m/a/maquina-laser-xtools1-sus-accesorios-d23.jpg
2166.38
instock
0
2166.38
5
4.8
5
https://www.brildor.com/media/catalog/product/m/a/maquina-laser-xtools1-sus-accesorios-d23.jpg
en_43191
en_50120
en_51085
en_51174
en_51819
en_51904
en_52380
en_52953
en_53087
en_53114
en_53203
/Laser
/Laser/Machines and Accessories
/Grabado
/Offers
2024-07-08T11:17:52+0000
