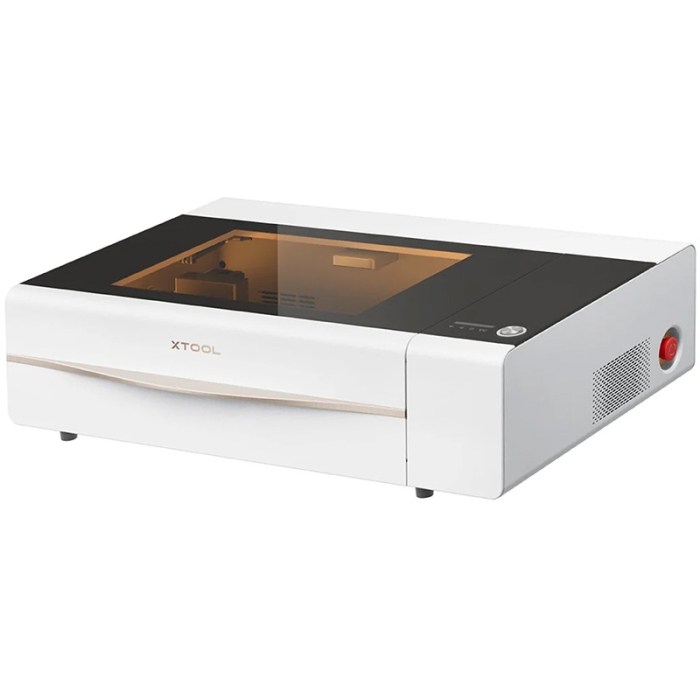

xTool P2S CO2 Laser Cutting and Engraving Machines
<p><a name="know-more"></a></p>
<h2>More information about xTool P2S CO2 Laser Cutting and Engraving Machines</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Features</a></p>
<p>> <a href="#know-more2">Things to keep in mind</a></p>
<p>> <a href="#know-more9">xTool P2 vs P2S Model Comparison</a></p>
<p>> <a href="#know-more3">What is included with the laser machine?</a></p>
<p>> <a href="#know-more4">Accessories</a></p>
<p>> <a href="#know-more11">What do the xTool P2S bundles include?</a></p>
<p>> <a href="#know-more5">Accessory dimensions</a></p>
<p>> <a href="#know-more10">User manual</a></p>
<p>> <a href="#know-more6">Support materials</a></p>
<p>> <a href="#know-more8">Some materials that can be cut and engraved</a></p>
<p>> <a href="#know-more13">Warranty</a></p>
<p>> <a href="#know-more7">Technical specifications</a></p>
<p>> <a href="#know-more12">Related posts</a></p>
<p class="enlace"><a id="know-more1"></a> </p>
<p><strong>FEATURES</strong></p>
<ul>
<li><strong>Compact desktop design</strong>: combines all the functionalities of a professional cutting and engraving machine for sectors such as crafts, jewellery, advertising, stationery, and glassware</li>
<li><strong>Versatile</strong>: capable of cutting materials up to <span class="azul-negrita">20 mm</span> thick and engraving on curved surfaces without additional accessories</li>
<li><strong>Optimised air extraction system</strong>: fan and air pump with higher performance for cleaner, more precise, and faster cuts
<ul>
<li><strong>Double-layer fan</strong>: one layer extracts dust, smoke, and debris generated during engraving or cutting. The other pushes it out through the extraction tube (included)</li>
<li><strong>Double-cylinder air pump</strong>: doubles the stability of the airflow during cutting or engraving. Materials remain clear of debris during cutting, optimising laser precision and efficiency</li>
</ul>
</li>
<li><strong>2 integrated HD cameras</strong>: provide real-time images and previews of the work area, allowing full control
<ul>
<li><strong>Short-range camera</strong>: integrated into the head. Provides a detailed preview of the object and makes it easy to position the design</li>
<li><strong>Panoramic camera</strong>: gives a complete view of the work area. Also automatically detects different objects for batch engraving</li>
</ul>
</li>
<li><strong>Laser alignment system</strong>: visual guide for precise laser path alignment. Faster initial setup</li>
<li><strong>Mass production with design variations</strong>: reduces working time by processing multiple designs simultaneously in a single batch</li>
<li><strong>AutoPassthrough™ technology</strong>: enables precise cutting and engraving on extra-long materials (up to <span class="azul-negrita">2997 mm</span> long)</li>
<li><strong>LiDar technology</strong>: precise autofocus with accuracy up to <span class="azul-negrita">0.001 inches</span>. Ensures the laser is always at the optimal height during engraving and cutting, even for materials of different thicknesses or uneven surfaces</li>
<li><strong>More precise engraving on curved cylinders</strong>: allows for more precise and detailed engravings on cylindrical and curved surfaces</li>
<li><strong>Safe</strong>: enclosed design, AI fire detection system, access control key, automatic lid lock during use, emergency stop button, multiple alert system: monitors temperature, cooling system, water levels, etc.</li>
<li><strong>Class IV safety</strong>: protective glass in the lid and lock during operation. Alerts in case of incidents and immediate emergency stop button</li>
<li><strong>X-axis acceleration</strong>: faster movements. Increases efficiency in laser engraving and cutting</li>
<li><strong>Internal water cooling</strong>: maintains the correct operating temperature to prevent component overheating</li>
<li><strong>Easy and quick maintenance</strong>:
<ul>
<li><strong>Removable fan</strong>: makes cleaning and maintenance easier. Just press a button. No tools required</li>
<li><strong>Magnetic filter</strong>: captures dust and particles, protecting internal components and maintaining air quality. Easy to clean and/or replace</li>
<li><strong>Error-proof laser mirror</strong>: ensures precise laser alignment after cleaning. Repositions itself with a single movement</li>
</ul>
</li>
<li><strong>Status light indicators</strong>: notify about the machine's work progress, lid lock, connection status, and coolant temperature</li>
<li><strong>Connectivity</strong>: Wi-Fi connection, USB port, PC connection port, and Ethernet</li>
<li><strong>CE Marking:</strong> label certifying that this machine complies with all legal marketing requirements within the European Union</li>
</ul>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>Accessories are purchased separately, not included with the machine</li>
</ul>
<p class="enlace"><a id="know-more9"></a> </p>
<p><strong>XTOOL P2 AND P2S MODEL COMPARISON</strong></p>
<table>
<tbody>
<tr>
<td> </td>
<td style="text-align: center;"><strong>P2<br /></strong></td>
<td style="text-align: center;"><strong>P2S</strong></td>
</tr>
<tr>
<td><strong>Smoke extractor (CFM)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">145</span></td>
<td style="text-align: center;"><span class="azul-negrita">233.3</span></td>
</tr>
<tr>
<td><strong>Fan speed (RPM)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">7000</span></td>
<td style="text-align: center;"><span class="azul-negrita">14000</span></td>
</tr>
<tr>
<td><strong>Fan blades</strong></td>
<td style="text-align: center;"><span class="azul-negrita">1</span></td>
<td style="text-align: center;"><span class="azul-negrita">2</span></td>
</tr>
<tr>
<td><strong>Air assist (Kpa)</strong></td>
<td style="text-align: center;">
<p><span class="azul-negrita">150</span></p>
</td>
<td style="text-align: center;"><span class="azul-negrita">200</span></td>
</tr>
<tr>
<td><strong>Cylinders</strong></td>
<td style="text-align: center;"><span class="azul-negrita">1</span></td>
<td style="text-align: center;"><span class="azul-negrita">2</span></td>
</tr>
<tr>
<td><strong>Optical path indicator</strong></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
<tr>
<td><strong>3D cylinder engraving</strong></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
<tr>
<td><strong>Batch processing<br />of different designs</strong></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
<tr>
<td><strong>X-axis acceleration (m/s<sup>2</sup>)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">3200</span></td>
<td style="text-align: center;"><span class="azul-negrita">6400</span></td>
</tr>
<tr>
<td><strong>Quick release button</strong></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
<tr>
<td><strong>Filter screen</strong></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
<tr>
<td><strong>Error-proof mirror</strong></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
</tbody>
</table>
<p class="enlace"><a id="know-more3"></a> </p>
<p><strong>WHAT IS INCLUDED WITH THE LASER MACHINE?</strong></p>
<table>
<tbody>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Ventilation tube</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Funnel</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Antifreeze liquid bottle</td>
</tr>
<tr>
<td><span class="azul-negrita">4</span></td>
<td>Clamps</td>
</tr>
<tr>
<td><span class="azul-negrita">2</span></td>
<td>Test material packs</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Screwdriver</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>M3*22 screw</td>
</tr>
<tr>
<td><span class="azul-negrita">2</span></td>
<td>M3*6 screws</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Allen key</td>
</tr>
<tr>
<td><span class="azul-negrita">2<br /></span></td>
<td>USB drives</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Power cable</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>USB cable (type C)</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Quick guide</td>
</tr>
<tr>
<td><span class="azul-negrita">1<br /></span></td>
<td>Self-check guide</td>
</tr>
<tr>
<td><span class="azul-negrita">1</span></td>
<td>Safety instructions</td>
</tr>
</tbody>
</table>
<p class="enlace"><a id="know-more4"></a> </p>
<p><strong>ACCESSORIES<br /></strong></p>
<p><strong>SafetyPro AP2 air filter</strong></p>
<ul>
<li>Compact and efficient design: high-power motor and quiet operation (<span class="azul-negrita">55 dB</span>). Ideal for home and professional spaces</li>
<li>Optimal filtration mode depending on the material</li>
<li>6-layer filtration system included: <br />
<ul>
<li>SuperCyclone filter: captures large particles. Extends pre-filter lifespan by 10 times</li>
<li>Pre-filter: traps dust and lint, preventing them from reaching higher-efficiency filters</li>
<li>Medium-efficiency filter: traps medium-sized particles such as pollen and mould spores, improving air quality</li>
<li>Activated carbon layer: absorbs harmful gases</li>
<li>Ultra-dense carbon mesh: absorbs odours up to 97.97%, improving air quality</li>
<li>HEPA filter: capable of trapping at least 99.97% of particles 0.3 microns or larger</li>
</ul>
</li>
<li>Easy to clean and reuse: removable magnetic door design. Makes it easy to remove, wash, and replace filters</li>
<li>Automatic on/off via Bluetooth connection</li>
<li>Clean the cyclone every 3–6 months. You can check its status through the viewing window on the top of the purifier</li>
<li>Includes extraction tube, pipe connectors, and clamp</li>
</ul>
<p><strong>Riser base</strong></p>
<ul>
<li>Increases the maximum machine height from <span class="azul-negrita">74 mm</span> up to <span class="azul-negrita">215 mm</span> high</li>
<li>Incorporates slots at different height levels to place the removable tray</li>
<li>Easy to fit. Placed under the machine, no need to disassemble</li>
<li>Includes a side storage compartment</li>
<li>Required for use with the automatic feeder or rotary accessory</li>
</ul>
<p><strong>RA2 Pro rotary accessory</strong></p>
<ul>
<li>Engraves objects by rotating them with precision, on spherical and cylindrical shapes such as mugs, rings, bottles, etc.</li>
<li>Allows engraving of objects up to <span class="azul-negrita">42 mm</span> without needing the riser base</li>
<li>Includes 4 different adapters for objects: roller rotation, chuck, sphere, and ring</li>
</ul>
<p><strong>RA2 Pro rotary accessory kit</strong></p>
<ul>
<li>Expands the capabilities of the RA2 Pro rotary accessory:
<ul>
<li><strong>More precise focus</strong>: the laser level marks the central axis on the piece held by the RA2 Pro, improving engraving quality</li>
<li><strong>Engrave in different positions</strong>: allows you to tilt the object held by the RA2 Pro up to <span class="azul-negrita">26º</span>. Achieve perfect alignment on conical pieces, engrave inside rings, etc.</li>
<li><strong>More convenient series production</strong>: location pieces help to move and reposition the RA2 Pro in the same place without losing engraving parameters</li>
</ul>
</li>
<li>Easily installed on the rotary accessory, no additional tools required</li>
</ul>
<p><strong>Honeycomb panel</strong></p>
<ul>
<li>Cuts and engraves objects larger than <span class="azul-negrita">15 mm</span> in size without them falling into the tray or burning</li>
<li>Handle design for easy handling</li>
<li>Thin frame to maximise the usable cutting area</li>
<li>Structure allows air circulation, preventing smoke stains</li>
<li>Supports up to <span class="azul-negrita">5 kg</span> of weight</li>
<li>Non-slip pads on the base prevent movement</li>
<li>Includes 4 magnetic pins to hold material and 1 cleaning brush</li>
</ul>
<p><strong>Automatic feeder</strong></p>
<ul>
<li>Expands the work area up to <span class="azul-negrita">1000 × 500 mm</span></li>
<li>Adds more rails and increases the work area up to <span class="azul-negrita">3000 x 500 mm</span></li>
<li>Engraves and cuts long materials in one go</li>
<li>Rollers automatically move the material without interruptions</li>
<li>Easy installation, rails attach to the riser base (purchased separately) without tools</li>
<li>Requires the riser base for use</li>
</ul>
<p><strong>Additional rails</strong></p>
<ul>
<li>By adding to the automatic feeder, increases the work area length by <span class="azul-negrita">1 m</span></li>
<li>Easily attach to the feeder. The rail buckles fit together</li>
</ul>
<p><strong>Clamping clips – Pack of 4 units</strong></p>
<ul>
<li>Secure the material during machine operation</li>
<li>Easy to place. Attach to the metal sheets in the work area</li>
<li>Hold materials up to <span class="azul-negrita">12 mm</span> thick</li>
</ul>
<p><strong>Fire suppression set</strong></p>
<ul>
<li>Automatically detects and extinguishes fire, emitting an acoustic alarm. Also includes a manual activation mode for greater control</li>
<li>Cuts off electrical power to switch off the machine. Then releases CO2 gas to extinguish the fire</li>
<li>Easy to install and use. Includes a user manual with detailed instructions</li>
<li>Works with 4 bottles of non-toxic, odourless CO2 gas, included in the set. Easily replaced after each use</li>
<li>Includes sensor hub to detect fire</li>
</ul>
<p class="enlace"><a id="know-more11"></a> </p>
<p><strong>WHAT DO THE XTOOL P2S BUNDLES INCLUDE?</strong></p>
<p>We offer 3 options: the <strong>xTool P2S + AP2 Filter</strong> value pack, the <strong>xTool P2S Versatile Bundle</strong> and the <strong>xTool P2S All-in-1 Bundle</strong>.</p>
<p>On our website, you will also find <a href="https://www.brildor.com/en/xtool-p2s-f1-ultra-laser-machines-saving-packs" target="_blank" rel="noopener">saving packs</a> that combine the <strong data-start="56" data-end="69">xTool P2S</strong> with the <strong>xTool</strong> <strong data-start="77" data-end="83">F1</strong> or <strong data-start="86" data-end="98">F1 Ultra</strong>.</p>
<table>
<tbody>
<tr>
<td><strong> </strong></td>
<td style="text-align: center;"><strong>Versatile<br />Bundle</strong></td>
<td style="text-align: center;"><strong>Versatile<br />Bundle</strong></td>
<td style="text-align: center;"><strong>All-in-1<br />Bundle</strong></td>
<td style="text-align: center;"><strong>All-in-1<br />Bundle</strong></td>
</tr>
<tr>
<td><strong>Ref</strong>.</td>
<td style="text-align: center;">056397</td>
<td style="text-align: center;">056400</td>
<td style="text-align: center;">056398</td>
<td style="text-align: center;">056399</td>
</tr>
<tr>
<td><strong>XTool P2S</strong><span class="naranja-negrita">*</span></td>
<td style="text-align: center;">White</td>
<td style="text-align: center;">Black</td>
<td style="text-align: center;">White</td>
<td style="text-align: center;">Black</td>
</tr>
<tr>
<td><strong>Riser base</strong></td>
<td style="text-align: center;">White</td>
<td style="text-align: center;">Black</td>
<td style="text-align: center;">White</td>
<td style="text-align: center;">Black</td>
</tr>
<tr>
<td><strong>RA2 Pro rotary accessory</strong></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
<tr>
<td><strong>Automatic feeder</strong></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
<tr>
<td><strong>SafetyPro AP2 filter</strong></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
</tbody>
</table>
<p><span class="naranja-negrita"><sup>(*)</sup> </span>Includes the same items as when purchasing the <a href="#know-more3">xTool P2S machine</a> separately.</p>
<p class="enlace"><a id="know-more5"></a> </p>
<p><strong>ACCESSORY DIMENSIONS</strong></p>
<table>
<tbody>
<tr>
<td><strong>Reference</strong></td>
<td style="text-align: center;"><strong>055777<br /></strong></td>
<td style="text-align: center;"><strong><span class="item-sku">054142</span></strong></td>
<td style="text-align: center;"><strong><span class="item-sku">051399</span></strong></td>
<td style="text-align: center;"><strong>055178</strong></td>
<td style="text-align: center;"><strong><span class="item-sku">054143</span></strong></td>
<td style="text-align: center;"><strong><span class="item-sku">054144</span></strong></td>
<td style="text-align: center;"><strong><span class="item-sku">054145</span></strong></td>
<td style="text-align: center;"><strong>055177<span class="item-sku"><br /></span></strong></td>
</tr>
<tr>
<td><strong>Accessory</strong></td>
<td style="text-align: center;">SafetyPro AP2<br />air filter</td>
<td style="text-align: center;">Riser base</td>
<td style="text-align: center;">Rotary<br />accessory</td>
<td style="text-align: center;">Rotary accessory<br />kit<strong><br /></strong></td>
<td style="text-align: center;">
<p>Honeycomb<br />panel</p>
</td>
<td style="text-align: center;">Automatic<br />feeder</td>
<td style="text-align: center;">Additional<br />rails</td>
<td style="text-align: center;">Clamping<br />clips</td>
</tr>
<tr>
<td><strong>Size (cm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">29 x 49.1 x 54.2</span></td>
<td style="text-align: center;"><span class="azul-negrita">100 x 59 x 17.5</span></td>
<td style="text-align: center;"><span class="azul-negrita">32 x 13.8 x 10.5</span></td>
<td style="text-align: center;"><span class="azul-negrita">26 x 16.5 x 10.5</span></td>
<td style="text-align: center;"><span class="azul-negrita">58.7 x 33 x 2.3</span></td>
<td style="text-align: center;"><span class="azul-negrita">68.7 x 25.5 x 23</span></td>
<td style="text-align: center;"><span class="azul-negrita">76.8 x 12.5 x 18.5</span></td>
<td style="text-align: center;"><span class="azul-negrita">2 x 2 x 2.3<br /></span></td>
</tr>
<tr>
<td><strong>Packing (cm)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">20.7</span></td>
<td style="text-align: center;"><span class="azul-negrita">82 x 34.5 x 27</span></td>
<td style="text-align: center;"><span class="azul-negrita">47 x 19.5 x 10</span></td>
<td style="text-align: center;"><span class="azul-negrita">19.2 x 31.5 x 11.3</span></td>
<td style="text-align: center;"><span class="azul-negrita">68 x 37.4 x 9.5</span></td>
<td style="text-align: center;"><span class="azul-negrita">76.9 x 20 x 13.5</span></td>
<td style="text-align: center;"><span class="azul-negrita">3 x 64 x 11.5</span></td>
<td style="text-align: center;"><span class="azul-negrita">8.6 x 2.1 x 4<br /></span></td>
</tr>
<tr>
<td><strong>Net weight (kg)</strong></td>
<td style="text-align: center;"><span class="azul-negrita">14</span></td>
<td style="text-align: center;"><span class="azul-negrita">11</span></td>
<td style="text-align: center;"><span class="azul-negrita">2.6</span></td>
<td style="text-align: center;"><span class="azul-negrita">1.03</span></td>
<td style="text-align: center;"><span class="azul-negrita">2.03</span></td>
<td style="text-align: center;"><span class="azul-negrita">8</span></td>
<td style="text-align: center;"><span class="azul-negrita">3.5</span></td>
<td style="text-align: center;"><span class="azul-negrita"> 25</span></td>
</tr>
</tbody>
</table>
<p class="enlace"><a id="know-more10"></a> </p>
<p><strong>USER MANUAL</strong></p>
<p><a href="https://hidrive.ionos.com/lnk/UnNcP5JWv" target="_blank" rel="noopener">xTool P2S laser engraver user manual (.pdf – 11.3 MB)</a></p>
<p class="enlace"><a id="know-more6"></a> </p>
<p><strong>SUPPORT MATERIALS</strong></p>
<ul>
<li>Scan the QR code you will receive with your equipment to access all materials for installation, use, and maintenance of this printer. The link allows you to download instructions, manuals, colour profiles, and even video tutorials</li>
</ul>
<p class="enlace"><a id="know-more8"></a> </p>
<p><strong>SOME MATERIALS THAT CAN BE CUT AND ENGRAVED</strong></p>
<p>Information provided by the manufacturer for <strong>guidance purposes</strong>. It may vary depending on the composition of the material, so it is recommended to carry out prior tests.</p>
<p>See <a href="https://support.xtool.com/article/1716#e957ffa1a284a6fda3062cfd8993a514e" target="_blank" rel="noopener">here</a> for all the materials you can engrave and cut.</p>
<table>
<tbody>
<tr>
<td><strong>Material</strong></td>
<td><strong>Thickness (mm)</strong></td>
<td><strong>Cut</strong></td>
<td><strong>Engrave</strong></td>
</tr>
<tr>
<td><strong>Limewood</strong></td>
<td style="text-align: center;"><span class="azul-negrita">3 – 12</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
<tr>
<td><strong>Pine</strong></td>
<td style="text-align: center;"><span class="azul-negrita">3 – 12</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
<tr>
<td><strong>Walnut</strong></td>
<td style="text-align: center;"><span class="azul-negrita">3 – 20</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
<tr>
<td><strong>Corrugated cardboard</strong></td>
<td style="text-align: center;"><span class="azul-negrita">3.5</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
<tr>
<td><strong>Vulcanised fibre<br /></strong></td>
<td style="text-align: center;"><span class="azul-negrita">3 – 12<br /></span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
<tr>
<td><strong>Cork</strong></td>
<td style="text-align: center;"><span class="azul-negrita">5 – 12</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
<tr>
<td><strong>Acrylics</strong></td>
<td style="text-align: center;"><span class="azul-negrita">3 – 12</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
<tr>
<td><strong>Rubber</strong></td>
<td style="text-align: center;"><span class="azul-negrita">2.3</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
<tr>
<td><strong>Anodised metal</strong></td>
<td style="text-align: center;">-</td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
<tr>
<td><strong>White glass</strong></td>
<td style="text-align: center;"><span class="azul-negrita">4</span></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
<tr>
<td><strong>EVA</strong></td>
<td style="text-align: center;"><span class="azul-negrita">5 – 10</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
<tr>
<td><strong>Felt</strong></td>
<td style="text-align: center;"><span class="azul-negrita">5 – 9</span></td>
<td style="text-align: center;"><strong><span class="rojo-brildor">✗</span></strong></td>
<td style="text-align: center;"><span class="verde-negrita">✓</span></td>
</tr>
</tbody>
</table>
<p class="enlace"><a id="know-more13"></a> </p>
<p><strong>WARRANTY</strong></p>
<ul>
<li>As stipulated by law in: <a href="https://www.brildor.com/en/general-terms-and-conditions-for-the-sale#warranty" target="_blank" rel="noopener">General Terms and Conditions for the Sale of Goods</a></li>
</ul>
<p class="enlace"><a id="know-more7"></a> </p>
<p><strong>TECHNICAL SPECIFICATIONS</strong></p>
<table>
<tbody>
<tr>
<td><strong>Laser type</strong></td>
<td>CO2</td>
</tr>
<tr>
<td><strong>Laser power (W)</strong></td>
<td><span class="azul-negrita"> 55</span></td>
</tr>
<tr>
<td><strong>Laser safety</strong></td>
<td>Class IV<span class="azul-negrita"><br /></span></td>
</tr>
<tr>
<td><strong>Laser spot (mm)</strong></td>
<td><span class="azul-negrita"> 0.15 x 0.2<br /></span></td>
</tr>
<tr>
<td><strong>Laser speed (mm/s)</strong></td>
<td><span class="azul-negrita">600<br /></span></td>
</tr>
<tr>
<td><strong>Movement precision (mm)</strong></td>
<td><span class="azul-negrita">0.01</span></td>
</tr>
<tr>
<td><strong>Z-axis movement (mm)<br /></strong></td>
<td><span class="azul-negrita">75<br /></span></td>
</tr>
<tr>
<td><strong>Max. material thickness (mm)</strong></td>
<td>up to<span class="azul-negrita"> 20<br /></span></td>
</tr>
<tr>
<td><strong>Image resolution (DPI)</strong></td>
<td><span class="azul-negrita">1000<br /></span></td>
</tr>
<tr>
<td><strong>Vision accuracy (mm)</strong></td>
<td><span class="azul-negrita">0.3<br /></span></td>
</tr>
<tr>
<td><strong>Camera pixels (MP)</strong></td>
<td><span class="azul-negrita">16<br /></span></td>
</tr>
<tr>
<td><strong>Work area (cm)</strong></td>
<td><span class="azul-negrita">60 x 30.5<br /></span></td>
</tr>
<tr>
<td><strong>Max. work height (without riser base) (mm)</strong></td>
<td>up to <span class="azul-negrita">71</span></td>
</tr>
<tr>
<td><strong>Max. work height (with riser base) (mm)</strong></td>
<td>up to <span class="azul-negrita">215<br /></span></td>
</tr>
<tr>
<td><strong>Max. work length (mm)</strong></td>
<td><span class="azul-negrita">3000</span></td>
</tr>
<tr>
<td><strong>Cooling system capacity (L)</strong></td>
<td><span class="azul-negrita">1.4<br /></span></td>
</tr>
<tr>
<td><strong>Air assist (Kpa)</strong></td>
<td><span class="azul-negrita">200</span></td>
</tr>
<tr>
<td><strong>Exhaust fan (CFM)</strong></td>
<td><span class="azul-negrita">233.3</span></td>
</tr>
<tr>
<td><strong>Operating temperature (ºC)</strong></td>
<td><span class="azul-negrita">10–30</span></td>
</tr>
<tr>
<td><strong>Storage temperature (ºC)</strong></td>
<td><span class="azul-negrita">10–45</span></td>
</tr>
<tr>
<td><strong>Connection</strong></td>
<td>Wi-Fi, USB, Ethernet</td>
</tr>
<tr>
<td><strong>File formats</strong></td>
<td>SVG, DXF, JPG, JPEG, PNG, BMP</td>
</tr>
<tr>
<td><strong>Operating systems</strong><br /><strong>(Desktop | Mobile)</strong></td>
<td>Windows / macOS / iPadOS</td>
</tr>
<tr>
<td><strong>Compatible software</strong></td>
<td>xTool Creative Space / LightBurn</td>
</tr>
<tr>
<td><strong>Machine (cm)</strong></td>
<td><span class="azul-negrita">100 x 63.9 x 26.8</span></td>
</tr>
<tr>
<td><strong>Packing (cm)</strong></td>
<td><span class="azul-negrita">111 x 71.5 x 33</span></td>
</tr>
<tr>
<td><strong>Net weight (kg)</strong></td>
<td><span class="azul-negrita">45</span></td>
</tr>
<tr>
<td><strong>Gross weight (kg)</strong></td>
<td><span class="azul-negrita">50</span></td>
</tr>
</tbody>
</table>
<p class="enlace"><a id="know-more12"></a> </p>
<p><strong>RELATED POSTS</strong></p>
<p><a href="https://www.brildor.com/blog/es/materiales-maquina-laser-todo-necesitas-saber/" target="_blank" rel="noopener">Materials for your laser machine: Everything you need to know</a></p>
<p><a href="https://www.brildor.com/blog/es/elige-maquina-laser-xtool-perfecta-guia/" target="_blank" rel="noopener">Choose like an expert! Find your perfect xTool laser machine with this guide</a></p>
<p><a href="https://www.brildor.com/blog/es/crea-pendientes-acrilicos-laser-co2/" target="_blank" rel="noopener">Get inspired and create acrylic earrings with the precision of the xTool CO2 laser machine</a></p>
<p><a href="https://www.brildor.com/blog/es/transforma-negocio-maquinas-laser-xtool/" target="_blank" rel="noopener">Transform your business with xTool laser machines</a></p>
https://www.brildor.com/media/catalog/product/m/a/maquina-corte-laser-co2-xtool-p2s-d22.jpg
4958
instock
0
4958
0
0
0
https://www.brildor.com/media/catalog/product/m/a/maquina-corte-laser-co2-xtool-p2s-d22.jpg
51174
51318
51819
52126
52380
53087
53147
53203
/Laser
/Laser/Maquinaria
/Grabado
/Offers
2024-10-24T10:16:31+0000
