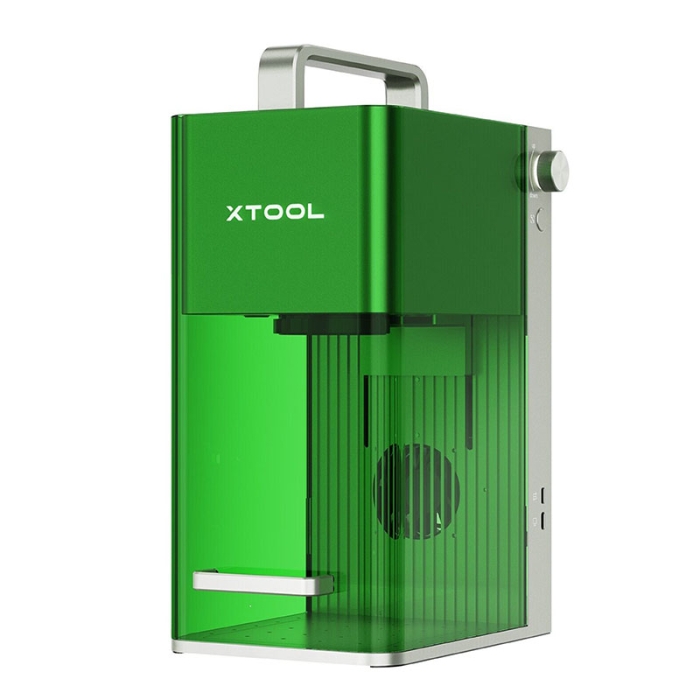

More information about the xTool F1 Portable Laser Engraving Machine Diode and Infrared

CONTENTS

> Features

> Things to keep in mind

> What does the laser machine include?

> Accessories

> What do the xTool F1 bundles include?

> Accessory dimensions

> User manual

> Warranty

> Technical specifications - xTool F1 comparison table

> Materials that can be engraved

> Materials that can be cut

> Related posts

FEATURES

• Modern design: small, lightweight and compact laser engraver. Perfect for working anywhere, in a shop or at a fair, in full view of the customer
• Dual laser: diode and infrared in the same head. Selectable in the software, with no need to swap machine parts or use tools
• Versatile: uses 2 different laser technologies, expanding the range of products you can personalise. The diode laser engraves almost all common materials (wood, ceramic, leather, etc.). The infrared (IR) engraves plastic and metals (gold, silver, stainless steel, etc.)
• Portable: engrave on a desktop using the base or without it, placing the machine directly on the product you wish to personalise
• Galvo technology: fixed head, does not move as in other machines. The laser light moves by reflecting in the mirrors inside the head
• Speed and precision: thanks to the galvo system, engraves with great speed and higher quality in every detail. Stamps complex designs in high, almost photographic, resolution
• Intuitive software: simple interface with integrated AI for creating and editing designs with a variety of tools
• Automatic and manual focus: can be adjusted manually by turning the machine’s focus knob. It can also be set automatically by indicating the thickness of the material in the application
• Built-in air system: includes a fan that extracts smoke via an easy-to-install extraction tube (included). The tube should be directed outside
• Laser cutting: can cut certain materials up to 8 mm thick after engraving
• Safe: if the machine is running and the cover is lifted, the laser stops. In addition, the cover blocks harmful laser light and smoke emissions
• Protective cover: complies with Class IV laser safety standards, blocking laser light during operation
• Preview: the design can be displayed on the product before starting the engraving
• Connectivity: Wi-Fi connection for file transfer and remote production monitoring from a computer, tablet or mobile
• CE marking: label certifying that this machine meets all legal requirements for marketing within the European Union

THINGS TO KEEP IN MIND

• The diode laser does not engrave on transparent, translucent or light-coloured materials such as acrylics, glass, etc. For these materials, we recommend using a CO2 laser machine
• Only one laser can be used at a time. The type of laser is selected in the application
• Accessories are not included with the machine. They are purchased separately
• The laser head has a protective cap. Remember to remove it before starting to use the machine and replace it when finished to prevent dirt build-up
• For engraving certain products, the cover must be raised. In Related Products you will find safety glasses for this purpose
• In Related Products you will find spare parts for the machine and the air filter

WHAT DOES THE LASER MACHINE INCLUDE?

ACCESSORIES

Desktop Air Purifier Filter

• Just as portable and small as the engraver. Perfect if your workspace lacks ventilation
• Consists of 2 parts. The HEPA H13 filter and the activated carbon filter are combined in a single unit.

  • Pre-filter: captures larger particles
  • HEPA H13 filter: retains 99.97% of particles with impurities
  • Activated carbon filter: absorbs harmful gases and unpleasant odours
• It is recommended to check the pre-filter regularly and replace it when more than 70% of its surface is covered with impurities
• Replacement of the parts will depend on usage time and visible wear
• Also includes an extraction tube and 2 spare pre-filters
• Replacements for the Desktop Air Purifier filter are available in Related Products

Sliding extension base

• Expands the working area up to 4 times (11.5 x 40 cm)
• Includes 5 clamps for stability and securing materials or objects
• Perfect for batch engraving in a single session

RA2 Pro rotary accessory

• 4-in-1 for engraving objects with high precision and spherical or cylindrical shapes such as mugs, rings, Christmas baubles, bottles, etc.
• Includes roller rotation, chuck, sphere and ring
• 2 cables to connect to xTool machines. Use the one compatible with your model

RA2 Pro rotary accessory kit

• Expands the capabilities of the RA2 Pro rotary accessory:
  • More precise focus: the laser level indicates the central axis on the piece held by the RA2 Pro, improving engraving quality
  • Engrave in different positions: allows the object held by the RA2 Pro to be tilted up to 26º. Achieve perfect alignment on conical pieces, engrave inside rings, etc.
  • More convenient batch production: location pieces allow you to move the RA2 Pro and position it in the same place without losing engraving parameters
• Easily installed on the rotary accessory, no additional tools required

Button switch

• Very useful for batch production. Press the button to operate the machine remotely, without having to move
• 4-in-1 functions. Start, pause, restart engraving or repeat the task
• Cable length: 1 m

Foot pedal switch

• Very useful for batch production. Step on the pedal to operate the machine remotely, without having to move
• 4-in-1 functions. Start, pause, restart engraving or repeat the task
• Cable length: 2.45 m
• The pedal reduces hand fatigue during long working sessions

WHAT DO THE XTOOL F1 BUNDLES INCLUDE?

We offer 2 options: the xTool F1 + Slide Extension and the xTool F1 Deluxe Bundle.

On our website you will also find value packs that combine the xTool F1 with the xTool P2S.

^(*) Includes the same items as when purchasing the xTool F1 machine separately.

ACCESSORY DIMENSIONS

USER MANUAL

xTool F1 Laser Engraver (.pdf - 6.74 MB)

WARRANTY

• As stipulated by law in: General Terms and Conditions for the Sale of Goods

TECHNICAL SPECIFICATIONS - XTOOL F1 COMPARISON TABLE

MATERIALS THAT CAN BE ENGRAVED

Information provided by the manufacturer for guidance purposes. It may vary depending on the composition of the material, so prior testing is recommended.

See here for all materials you can engrave.

^*Materials containing PVC cannot be engraved with a laser, as they would emit toxic fumes that would also damage the machine

MATERIALS THAT CAN BE CUT WITH THE DIODE LASER

Although it is mainly designed for engraving, the diode laser can cut certain materials
