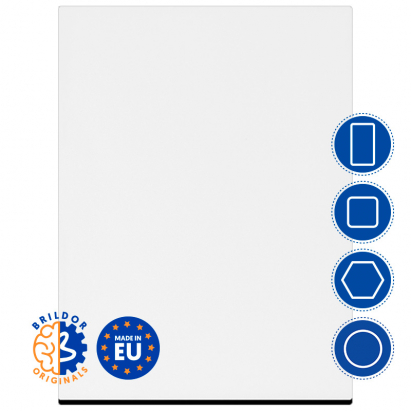

Sublimation Fridge Magnets - MDF - Geometric Shapes Collection
Fridge magnets in geometric shapes you can personalise using dye sublimation printing.
- Made of 3 mm printable white gloss MDF
- Includes adhesive magnetic sheet to fix it to the wood and make the magnet
- Unit of sale: pack of 5 magnets
More information
Our availability is not enough?
Let us know how much you need
I WANT MORE
More information about the MDF sublimation fridge magnets with geometric shapes
INDEX
> Things to keep in mind
> Dimensions
> Recommended instructions and parameters for sublimation printing
THINGS TO KEEP IN MIND
- The printable side of the magnet has a protective film that must be removed before sublimation
- The edges may contain some residue from the laser cutting. We recommend cleaning them with a damp cloth before handling them

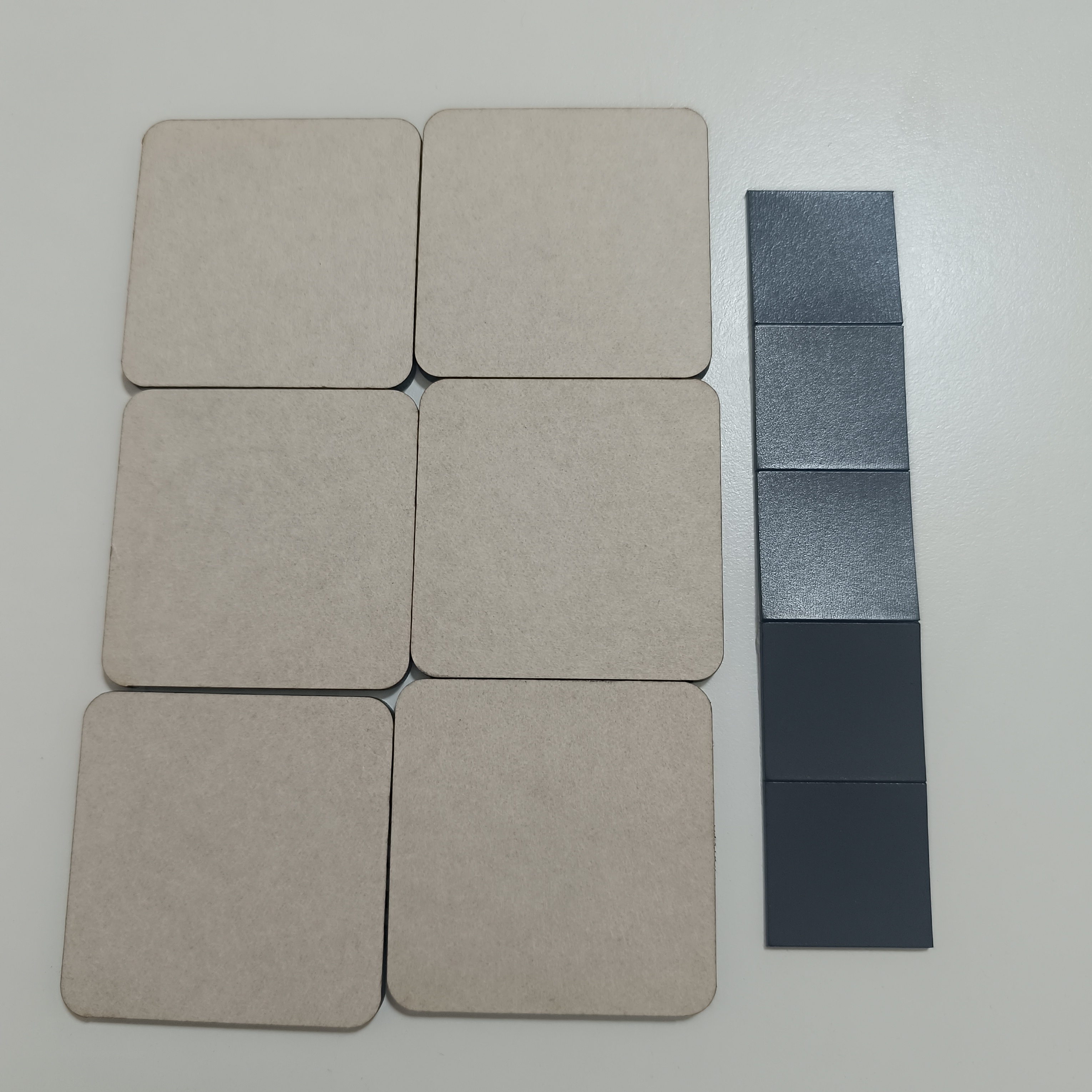

- The supplied magnet sheets are square. They measure 2.5 x 2.5 cm and are 1.2 mm thick
- You can also personalise them using the laser engraving technique
DIMENSIONS
| Shape |
Round
|
Round |
Round
|
Square |
Square
|
Square
|
Square |
Hexagon
|
Rectangular
|
Rectangular
|
Rectangular
|
| Reference no |
051062 |
039085 |
051063 |
051059 |
051060 |
038299 |
039817 |
041086 |
039084 |
051061 |
039818 |
Thickness (mm)
|
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3
|
3 |
Size/Print
area (cm)
|
Ø5 |
Ø6 |
Ø7 |
5 x 5 |
6 x 6 |
7 x 7 |
10 x 10 |
7 x 6 |
6 x 8 |
9 x 12
|
10 x 15 |
Magnet weight (g)
|
10
|
13 |
16
|
11.5
|
16.4
|
20 |
35 |
11
|
20 |
48.8
|
55 |
Pack weight (g)
|
50
|
63 |
80
|
56
|
82
|
101 |
179 |
69
|
101 |
244
|
283 |

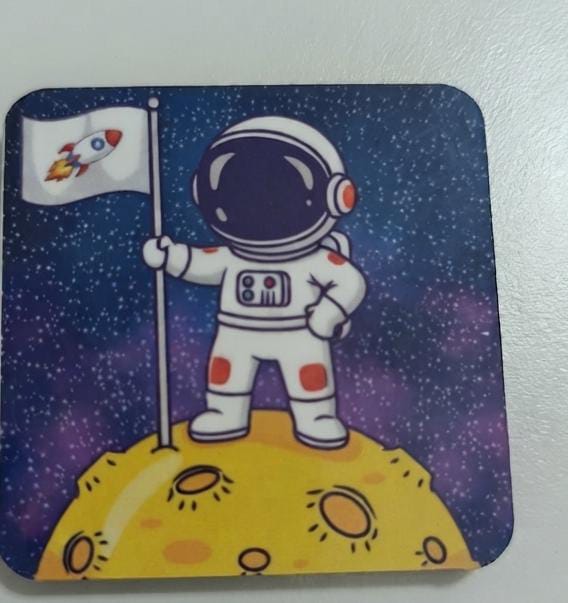

RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATION PRINTING
- Print the design in mirror image
- Preheat the oven to 180ºC
- Peel off the transparent film protecting the magnet’s printable side
- Place the magnet on the lower platen of the press and the paper's printed side against it. Fix them with heat-resistant tape
- Press for 60 seconds, medium pressure
- With the help of a protective glove, remove the finished sublimated magnet
- Carefully peel off the paper
- Remove the protective paper from the adhesive sheet and stick it to the back of the magnet
More Information
| Ref. |
926296 |
| Thickness (mm) |
3 |
| Colour |
White, Brown |
| Surface material |
Wood |
| Items |
Magnets, Sheets |
| Accessory details |
Magnet |
| Marking techniques |
Dye sublimation |
