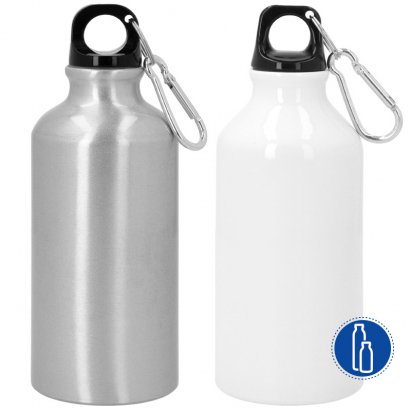

Sublimation Aluminium Water Bottles
Water bottle with screw cap and hand carabineer clip you can personalise with dye sublimation printing .
Can be printed using a mug heat press or oven

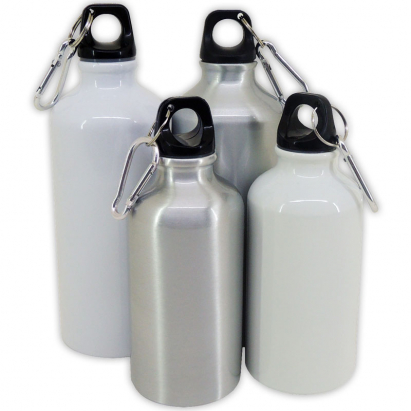

White or silver gloss finish aluminium
Available in 400 ml or 600 ml
Packed in an individual white box
More information
Our availability is not enough?
Let us know how much you need
Request Notice
VACUUM-FREE OVEN SUBLIMATION WITH HEAT SHRINK BAGS
More information about the sublimation aluminium water bottles
INDEX
> Description
> Dimensions (approx.)
> Recommended instructions and parameters for sublimation printing
DESCRIPTION
Black plastic cap, BPA Free
With metal ring and carabiner to attach to a bag or backpack
Can be personalised using a mug heat press with 6-9 oz heating element ( 10-11 oz heating element for the 600 ml bottle)
Or with a sublimation oven using Ref. 034179 (400 ml) or Ref. 034180 (600 ml) clamp, silicone sheets or heat shrink bags
Easy to wash, lightweight and very durable
DIMENSIONS (APPROX.)
Reference no.
032569
032570
033314
033315
Colour
White
Silver
White
Silver
Capacity (oz ≈ ml)
14 ≈ 400
14 ≈ 400
20 ≈ 600
20 ≈ 600
Dimensions (cm)
Ø6.5 x 17.5
Ø6.5 x 17.5
Ø7.3 x 21.5
Ø7.3 x 21.5
Print area (cm)
19 x 9
19 x 9
21 x 12
21 x 12
RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATION PRINTING
WITH A WITH A MUG HEAT PRESS
Print the design in mirror image
Preheat the press to 200ºC
Remove the lid from the bottle
Stick the printed part of the paper on the bottle with heat-resistant tape
Insert the bottle into the mug press
Press for 120 seconds , medium-heavy pressure
Remove the newly printed bottle using a protective glove
Carefully peel off the paper
WITH A SUBLIMATION OVEN
Print the design in mirror image
Preheat the oven to 180ºC
Remove the lid from the bottle
Stick the printed part of the paper on the bottle with heat-resistant tape
Place and adjust the wrap around it, or insert it in a heat shrink bag and create a vacuum with a heat gun. You can also use a silicone sheet
Sublimate inside the oven for 6 minutes
Using a protective glove, remove the wrap, the silicone sheet, or the bag, depending on the accessory you used
Carefully remove the paper from the bottle
More Information
Ref.
949622
Dimensions (mm)
Ø65 x 175 - Ø73 x 215
Print area (mm)
190 x 90 - 210 x 120
Colour
White, Silver
Surface material
Aluminium
Items
Bottles
Accessory details
Ring, Carabiner
Marking techniques
Dye sublimation
