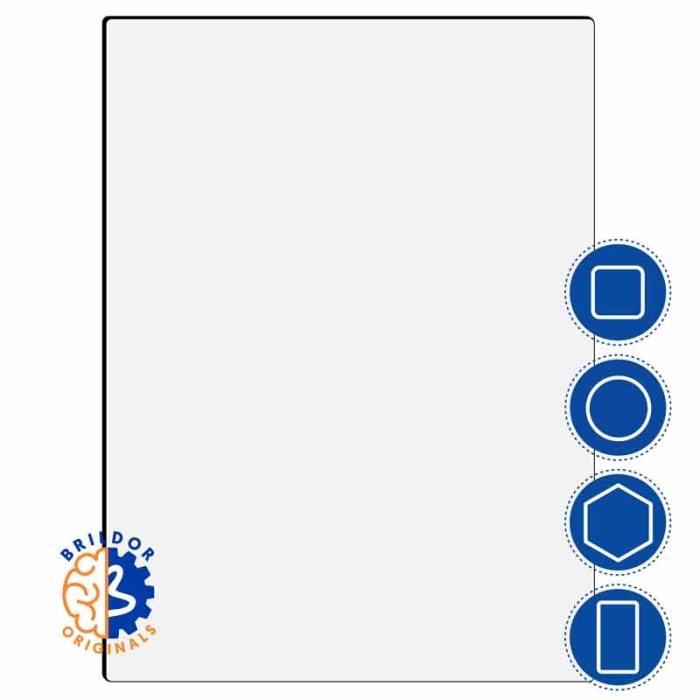

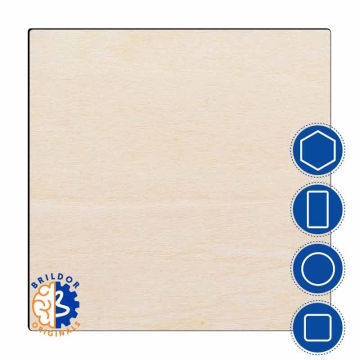

Sublimable MDF3 Wooden Magnets – Geometric Shapes
Fridge magnets with customisable geometric shapes for sublimation.
- 3 mm thick MDF wood, gloss finish
- Includes self-adhesive magnet
- Straight or rounded corners (Radius 1, 2 and 5 mm)
More information about Sublimable MDF3 Wooden Magnets – Geometric Shapes
INDEX
> Recommended sublimation instructions and parameters
DESCRIPTION
- White sublimable face. Reverse side in light or dark brown, depending on the batch
- Magnetic sheet with adhesive to attach to the wood once sublimated
- Can also be personalised with laser engraving
IMPORTANT INFORMATION
- The customisable side has a protective film that must be removed before sublimation. Some magnets have an additional paper layer on the film for extra protection. This can be easily removed
- Replacement magnetic sheets are available in Related Products
DIMENSIONS
| Ref. | 051059 | 057426 | 051060 | 057427 | 038299 | 057428 | 039817 | 057425 | 039084 | 057424 | 051061 | 039818 | 051062 | 039085 | 051063 | 041086 |
| Shape | Square | Square | Square | Square | Square | Square | Square | Rectangle | Rectangle | Rectangle | Rectangle | Rectangle | Round | Round | Round | Hexagon |
| Curvature (mm) | 2 | 5 | 2 | 5 | 1 | 5 | 2 | 5 | 1 | 5 | 1 | 2 | - | - | - | - |
| Print area (cm) | 5 x 5 | 5 x 5 | 6 x 6 | 6 x 6 | 7 x 7 | 7 x 7 | 10 x 10 | 6 x 4.5 | 6 x 8 | 6 x 8 | 9 x 12 | 10 x 15 | Ø5 | Ø6 | Ø7 | 7 x 6 |
| Thickness (mm) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Magnet (mm) | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 |
RECOMMENDED SUBLIMATION INSTRUCTIONS AND PARAMETERS
Parameters provided as a guide. It is recommended to carry out preliminary tests to make the necessary adjustments before starting production.
- Print the design in mirror mode
- Heat the press to 180 ºC
- Remove the transparent plastic film protecting the sublimable side of the magnet
- Place the magnet on the base of the press and the printed side of the paper on top of the magnet. Secure with heat-resistant tape
- Close the press with medium pressure for 60 seconds
- With the help of a protective glove, remove the freshly sublimated magnet
- Carefully remove the paper
- Remove the protective paper from the adhesive sheet and stick it to the back of the magnet
| Ref. | 926296 |
|---|---|
| Thickness (mm) | 3 |
| Surface material | Wood |
| Items | Magnets, Sheets |
| Accessory details | Magnet |
| Marking techniques | Dye sublimation |
