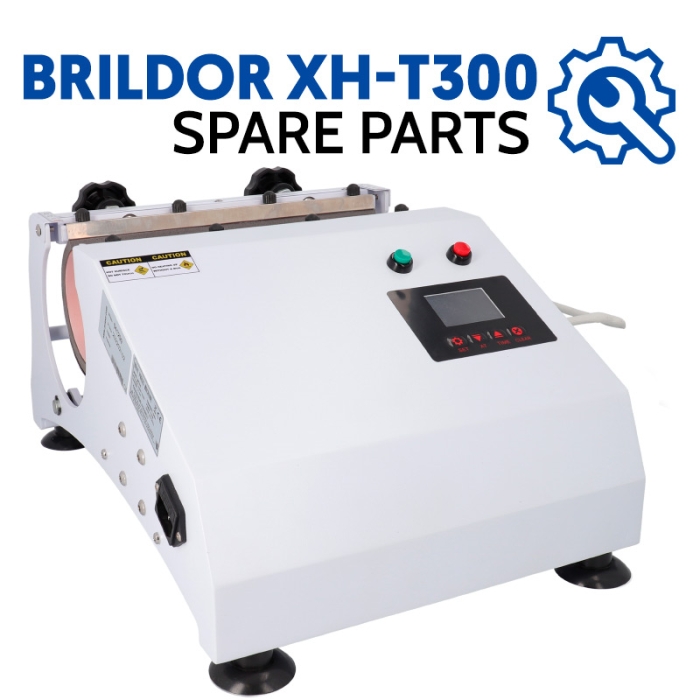

Spare Parts for Brildor XH-T300 Cylindrical Object Heat Press
Spare Parts for Brildor XH-T300 Cylindrical Object Heat Press

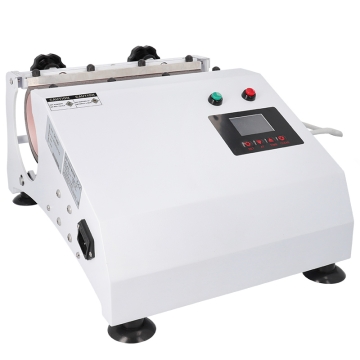

Spare parts for the Brildor XH-T300 automatic cylindrical object heat press, now discontinued (Ref. 041299).
More information
More information about the Spare Parts for Brildor XH-T300 Cylindrical Object Heat Press
INDEX
> Description of the spare parts
> How to choose the right heating element?
> Measurements
> User manual
> Warranty
DESCRIPTION
Heating element with 3rd generation male connector
Easily interchangeable. Simply tighten or loosen the screws by hand
Wide and dense heat conductor with fine granulation. Ensures fast and even heat transfer
Silicone pad interior to adapt and avoid damaging the surface of the object
Cylindrical heating elements of 2.5 oz , 6-9 oz , 11 oz and 15 oz that allow you to personalise 2 mugs simultaneously or cylindrical objects up to 27 cm in length
Conical heating elements of 12 oz and 17 oz
Compatible only with Brildor XH series mug and cylindrical object heat presses. Installing these elements in other machines may cause faults, even irreparable damage
Manufactured from high-quality material
Video tutorial: How to choose the right heating element?
MEASUREMENTS
CYLINDRICAL SPARE HEATING ELEMENT
Ref. Shape Capacity A (cm) B (cm) Weight (g)
041300 Cylindrical
2.5 14.5
27
609g
041301 Cylindrical
6-9 20.5
27
814g
041305 Cylindrical
11 23
27
867g
041302 Cylindrical
15 23.5 11 924
CONICAL SPARE HEATING ELEMENT
Ref. Shape Capacity A B C Weight
041303 Conical
12
17
12
23.5
367
041304 Conical
17
17
16
24
483
USER MANUAL
Brildor XH-T300 Automatic Cylindrical Object Heat Press Manual (.pdf - 0.655 MB)
WARRANTY
Heating elements: 3 months
The period starts from the invoice date.
Questions
No questions found for this product.
Be the first to ask a question!
