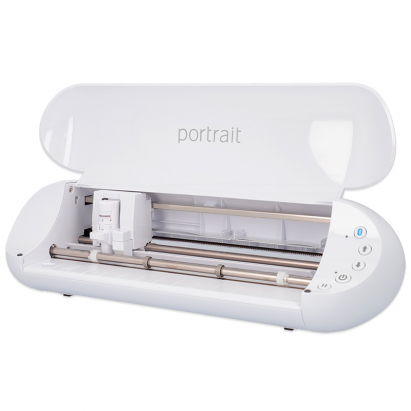

Silhouette Portrait 3: a compact, portable, and lightweight vinyl cutter. Perfect for crafts, scrapbooking, sign making, labelling and small format graphic design projects.
Cuts vinyl, cardstock, paper, some types of fabric and much more
Pop-out cutting feature
Auto-adjustable cutting blade and automatic tool detection
Max. cutting width: 20.3 x 30 cm (with mat) and 20.3 cm x 3 m (without mat)
Incorporates self-adjusting blade with just 1 click (auto-blade) thanks to the automatic tool detection system that makes it easy to adjust and set the blade
Includes pop-out cut technology, which allows you to cut paper and cardstock without the need for a cutting mat
Cuts up to 2 mm-thick materials with an optical sensor for Print & Cut jobs and Bluetooth® connection for managing cutting files without any cable
Easy to use and set up. No special tools nor prior skills are required
Perfect to use at home, in shops and in tight workspaces
Suitable to cut and die-cut letters and designs from a wide range of materials: vinyl, cardstock, fabric transfer, paper, stencil material, and more
Highly versatile. You can work on projects in sizes from 20.3 cm wide up to 3 metres long without the need of a cutting mat
For optimal results, we recommend using an auto sheet feeder to cut materials over 18.3 cm long
If you replace the blade with a pen, it becomes possible to draw on the support instead of cutting it. Suitable for A4 and US letter sizes
Can cut around previously printed designs (Print & Cut function). Perfect for T-shirt designers that work with transfer paper and printable vinyl. Can also be used to make stickers or decals
Compatible with tools marked with the number 1
Free Silhouette Studio Software with a multitude of functions for cutting and creating custom designs. Features include indicating the cutting parameters according to the selected material and automatically adjusting the blade
You can send the files from the software to the Portrait 3 with a USB cable, via Bluetooth or with an SD card
Includes 1 blue adapter to use the Silhouette sketch pens. Compatible tools and additional blade adapters must be purchased separately
In Related Products you will find a blade holder, cutting mats (Ref. 920339 and Ref. 920340) and the Silhouette Studio Software
COMPARISON CHART: PORTRAIT 2 vs PORTRAIT 3
TECH SPECS
PORTRAIT 2
PORTRAIT 3
Max. cutting depth (with standard blade)
2 mm
2 mm
Blade
Self-adjusting
Self-adjusting (1 click)
Automatic Tool Detection
No
Yes
Blade adapters
Not required
Required (*)
Max. cutting area (with mat)
20.3 x 30.5 cm
20.3 x 30.5 cm
Max. cutting area (matless)
20.3 x 18.3 cm
20.3 x 18.3 cm
Print & Cut feature
Yes
Yes
Draw/Sketch
Yes
Yes
Cutting force
210 gf
210 gf
Bluetooth® connectivity
Yes
Yes
PixScan compatibility
Yes
Yes
Roll feeder compatibility
Yes
Yes
3 mm Kraft Blade compatibility
No
No
USB 2.0 port (High-Speed)
Yes
Yes
Silhouette Studio Software
Yes
Yes
Compatible with Mac OS and PC
Yes
Yes
2-year warranty against manufacturing defects
Yes
Yes
(*) Must be purchased separately
DIMENSIONS (APPROX.)
Cutting machine
42 x 13.9 x 10.8 cm
Weight (without accessories)
1.63 kg
Weight (with accessories)
1.97 kg
Packaging
45 x 21.5 x 20 cm
WHAT DOES THE SILHOUETTE PORTRAIT 3 INCLUDE?
Silhouette Portrait 3
1
Autoblade (1 Click)
1
Blade adjuster
1
Blue adapter for Silhouette sketch pens
1
Cutting mat 20.3 x 30.5 cm
1
Power adapter
1
USB cord
1
Silhouette Studio Software(*)
1
Free digital designs
100
25 USD gift card (**)
1
2-year warranty against manufacturing defects
----
(*) The entire registration and installation process must be done from https://www.silhouetteamerica.com/setup/en/
(**) Available for use in the Silhouette Design Store within 1 month following registration of your Portrait 3.
THINGS TO KEEP IN MIND
We will not accept the return of this machine if the serial number has been registered or the software has been downloaded from the manufacturer's website as this will permanently and irreversibly link the machine to the customer
The serial number does not need to be registered on the manufacturer's website to check the correct operation of the machine. It is recommended to run tests before setup
