Stamping Machine and Accessories
Stamping Machine and Accessories

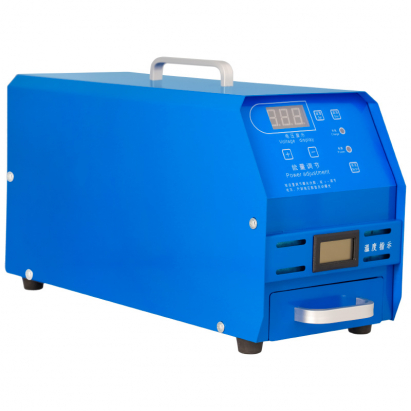

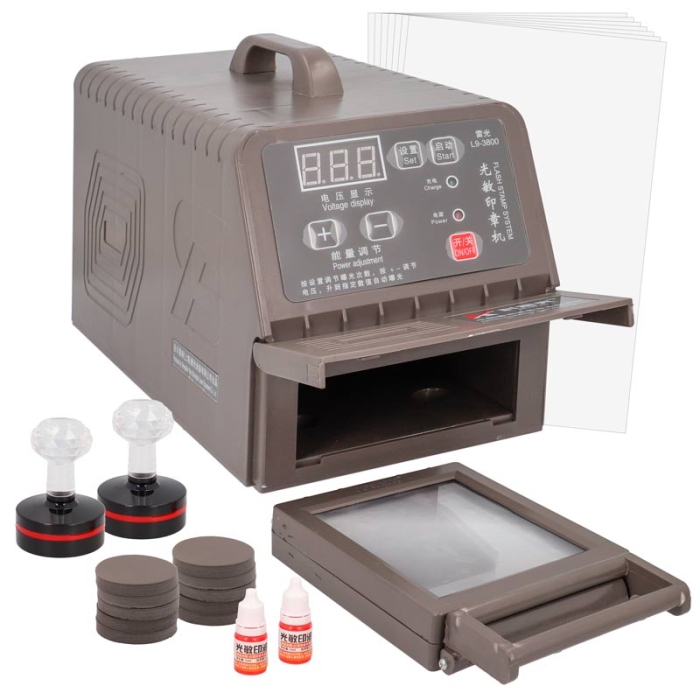

Stamp-making machine that uses UV light.

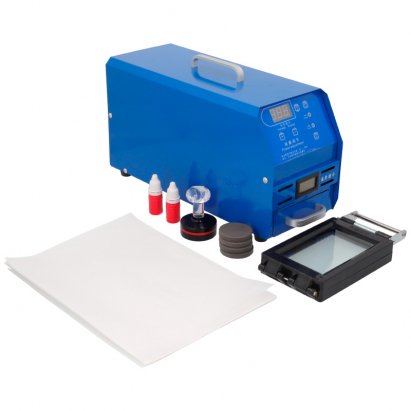

Includes all necessary materials to start working:
- Stamps
- Inks
- Film
- Greaseproof paper
You can purchase additional self-inking stamps in various shapes and sizes separately.
More information
https://www.brildor.com/en/rubber-stamp-making-machine-accessories
50426
Stamping Machine and Accessories
<p class="enlace"><a id="know-more"></a> </p>
<h2>More information about the Stamping Machine</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#know-more1">Description</a></p>
<p>> <a href="#know-more8">Things to keep in mind</a></p>
<p>> <a href="#know-more7">What material does this machine include?</a></p>
<p>> <a href="#know-more9">Additional stamps with refillable ink handle</a></p>
<p>> <a href="#know-more2">Technical data</a></p>
<p>> <a href="#know-more3">Recommended usage instructions</a></p>
<p>> <a href="#know-more4">Approximate dimensions</a></p>
<p>> <a href="#know-more6">Approximate dimensions of additional stamps</a></p>
<p> </p>
<p class="enlace"><a id="know-more1"></a> </p>
<p><strong>DESCRIPTION</strong></p>
<ul>
<li>Allows you to offer your own stamp customisation service at a low cost</li>
<li>Easy and quick to install and use. Customise stamps immediately</li>
<li>Print the design on the sulphurised paper, place it on the pad with the film and insert it into the exposure box, the machine will do the rest</li>
<li>The printed design acts as a negative. Areas not exposed to UV light form the stamp</li>
<li>Control buttons to adjust exposure voltage</li>
<li>Display with ambient temperature and voltage indicator</li>
<li>Includes a handle for easy transport</li>
<li>Stamps with refillable ink handle available in various shapes</li>

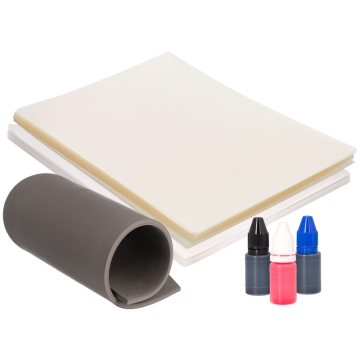

<li>You can purchase more film, paper, and inks in various colours in <strong>Related Products</strong>. You will also find the <strong>photosensitive pad</strong> in sheet format of <span class="azul-negrita">44.5 x 18 cm</span>, make stamps of the desired size and shape by cutting the sheet with CO2 laser, cutter, or scissors</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more8"></a> </p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>The design must be printed on sulphurised paper with a <strong>laser printer</strong></li>
<li>For the correct operation of this machine, only photosensitive pads should be used</li>
<li>Ensure the photosensitive exposure box is clean before use</li>
<li>Keep the machine turned off when not in use</li>
<li>The stamping machine shown in the video is a previous model to the current one, however, both share the same features</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more7"></a> </p>
<p><strong>WHAT MATERIAL DOES THIS MACHINE INCLUDE?</strong></p>
<table>
<tbody>
<tr>
<td style="text-align: right;"><span class="azul-negrita">1</span></td>
<td><strong>Exposure box</strong></td>
</tr>
<tr>
<td style="text-align: right;"><span class="azul-negrita">2</span></td>
<td><strong>Stamp handles </strong><span class="azul-negrita">Ø45 mm</span></td>
</tr>
<tr>
<td style="text-align: right;"><span class="azul-negrita">10</span></td>
<td><strong>Round stamp pads </strong></td>
</tr>
<tr>
<td style="text-align: right;"><span class="azul-negrita">20</span></td>
<td><strong>A4 film sheets</strong></td>
</tr>
<tr>
<td style="text-align: right;"><span class="azul-negrita">20</span></td>
<td><strong>A4 sulphurised paper sheets</strong></td>
</tr>
<tr>
<td style="text-align: right;"><span class="azul-negrita">2</span></td>
<td><strong>Red ink bottles <span class="azul-negrita">5 ml</span></strong></td>
</tr>
<tr>
<td style="text-align: right;"><span class="azul-negrita">1</span></td>
<td><strong>Power cable</strong></td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more7"></a> </p>
<p><strong>ADDITIONAL STAMPS WITH REFILLABLE INK HANDLE</strong></p>
<ul>
<li>Self-inking stamps. No ink pad or pads needed</li>
<li>Top unscrews with a hole for refilling with liquid ink</li>
<li>Includes bottom cap to cover the pad and prevent ink stains</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more2"></a> </p>
<p><strong>TECHNICAL DATA</strong></p>
<table>
<tbody>
<tr>
<td><strong>Power (V)</strong></td>
<td><span class="azul-negrita">220</span></td>
</tr>
<tr>
<td><strong>Frequency (Hz)</strong></td>
<td><span class="azul-negrita">50</span></td>
</tr>
<tr>
<td><strong>Power (W)<br></strong></td>
<td><span class="azul-negrita">80 - 120</span></td>
</tr>
<tr>
<td><strong>Maximum output energy (J)</strong></td>
<td><span class="azul-negrita">3800</span></td>
</tr>
<tr>
<td><strong>Number of lamps (tubes)<br></strong></td>
<td><span class="azul-negrita">1-3</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more3"></a> </p>
<p><strong>RECOMMENDED USAGE INSTRUCTIONS</strong></p>
<ul>
<li>Print your design in black on sulphurised paper with your <strong>laser printer</strong>. Do not print in mirror mode</li>
<li>Cut the film and printed paper to the size of the stamp</li>
<li>Open the exposure box</li>
<li>First place the stamp pad</li>
<li>Then place the film and finally the printed paper face down</li>
<li>Close the exposure box and place it inside the tray</li>
<li>Close the tray and turn on the machine</li>
<li>Adjust the voltage value to around <span class="azul-negrita">400 V</span></li>
<li>Wait for the machine to charge until you see a flash</li>
<li>Remove the exposure box</li>
<li>Insert the stamp into its handle</li>
<li>Cover the stamp surface with ink</li>
<li>Let it absorb the ink for a few seconds</li>
<li>Remove excess ink from the surface</li>
</ul>
<p> </p>
<p class="enlace"><a id="know-more4"></a> </p>
<p><strong>APPROXIMATE DIMENSIONS</strong></p>
<table>
<tbody>
<tr>
<td><strong>Stamping machine (cm)</strong></td>
<td><span class="azul-negrita">29 x 14 x 18</span></td>
</tr>
<tr>
<td><strong>Packaging (cm)</strong></td>
<td><span class="azul-negrita">35 x 20 x 25</span></td>
</tr>
<tr>
<td><strong>Stamp pads (cm)</strong></td>
<td><span class="azul-negrita">Ø4.2 x 0.8</span></td>
</tr>
<tr>
<td><strong>Exposure screen (mm)</strong></td>
<td><span class="azul-negrita">11 x 7.1</span></td>
</tr>
<tr>
<td>
<p><strong>Exposure box (cm)</strong></p>
</td>
<td><span class="azul-negrita">21 x 10.1 x 2.9</span></td>
</tr>
<tr>
<td>
<p><strong>Stamp holder (cm)</strong></p>
</td>
<td><span class="azul-negrita">Ø5 x 7</span></td>
</tr>
<tr>
<td>
<p><strong>Weight (kg)</strong></p>
</td>
<td><span class="azul-negrita">3</span></td>
</tr>
</tbody>
</table>
<p> </p>
<p class="enlace"><a id="know-more6"></a> </p>
<p><strong>APPROXIMATE DIMENSIONS OF ADDITIONAL STAMPS</strong></p>
<table>
<tbody>
<tr>
<td style="text-align: center;"><strong>Reference</strong></td>
<td style="text-align: center;"><strong>Name</strong></td>
<td style="text-align: center;"><strong>Units</strong></td>
<td style="text-align: center;"><strong>Dimensions</strong></td>
<td style="text-align: center;"><strong>Weight (g)</strong></td>
</tr>
<tr>
<td style="text-align: center;"><strong>049279</strong></td>
<td style="text-align: center;">Round stamp</td>
<td style="text-align: center;">1 stamp</td>
<td style="text-align: center;"><span class="azul-negrita">Ø4.5 x 0.8 cm</span></td>
<td style="text-align: center;"><span class="azul-negrita">50</span></td>
</tr>
<tr>
<td style="text-align: center;"><strong>049281</strong></td>
<td style="text-align: center;">Oval stamp</td>
<td style="text-align: center;">1 stamp</td>
<td style="text-align: center;"><span class="azul-negrita">4.6 x 3.4 x 0.8 cm</span></td>
<td style="text-align: center;"><span class="azul-negrita">44</span></td>
</tr>
<tr>
<td style="text-align: center;"><strong>049280</strong></td>
<td style="text-align: center;">Rectangular stamp</td>
<td style="text-align: center;">1 stamp</td>
<td style="text-align: center;"><span class="azul-negrita">6.3 x 2.7 x 0.8 cm</span></td>
<td style="text-align: center;"><span class="azul-negrita">58</span></td>
</tr>
</tbody>
</table>
