Pen Holders for Silhouette Vinyl Cutters

Pen Holders for Silhouette Vinyl Cutters

Adapters for pens, markers, or pencils, designed for drawing with Silhouette vinyl cutters.

  • Each adapter includes nozzles of different sizes
  • To know which adapter to use with your plotter, check its compatibility

More information

Reward Points
Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program

More information about the Pen Holders for Silhouette Vinyl Cutters

INDEX

> Description

> Things to keep in mind

> Compatibility with Silhouette plotters

> Nozzle dimensions

> Instructions for use

DESCRIPTION

  • Accessory that enhances the capabilities of the plotter. In addition to cutting, it is possible to sketch or draw the edges of a design

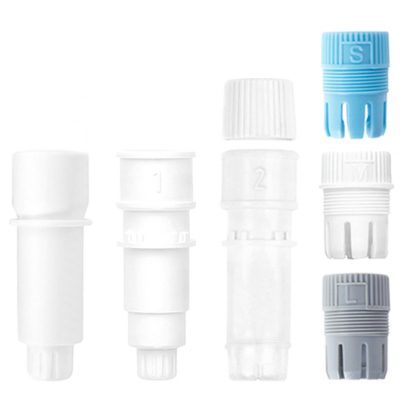

  • Nozzles of 3 different diameters, 4 sizes for the C-type adapter. To use with any pen, marker, or pencil, regardless of brand, type, or colour
  • Only the type C adapter allows cutting and drawing without changing tools. Use a blade in carriage 1 and the pen holder in carriage 2
  • Presented in a blister pack with a display hanger

THINGS TO KEEP IN MIND

  • Each type of adapter is marked with a number indicating which carriage of the plotter it should be used with. Except for type A which can be placed in both carriages
  • You can use the type A pen holder with new plotter models using the Silhouette Blue blade adapter. See Related Products

COMPATIBILITY WITH SILHOUETTE PLOTTERS

Type A
Type B
Type C
Carriage 1 | 2 Carriage 1 Carriage 2
Cameo 5* Cameo Pro MK-II Cameo Pro MK-II
Cameo 5 Plus* Cameo 5 Cameo 5
Cameo 4* Cameo 5 Plus Cameo 5 Plus
Cameo 4 Plus* Cameo 4 Curio 2
Cameo 4 Pro* Cameo 4 Plus
Cameo 3 Cameo 4 Pro
Cameo 2 Portrait 4
Cameo 1 Portrait 3
Portrait 2* Curio 2
Portrait 1*
Curio 1

(*) Requires the Blue Silhouette blade adapter

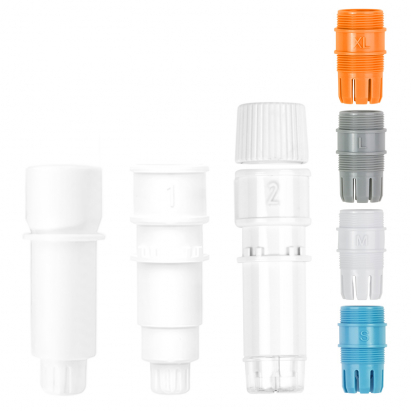

NOZZLE DIMENSIONS

Size Colour
Diameter
S - Small Blue 8 mm
M - Medium White 9 mm
L - Large Grey 11 mm
XL - Extra Large Orange 12 mm

INSTRUCTIONS FOR USE

  • Choose the nozzle size that best fits the pen (marker or pencil) you are going to draw with
  • Insert the nozzle into the pen. The flexible or adaptable end of the nozzle should face the tip of the pen
  • Remove the lower cap of the adapter
  • Insert the pen into the adapter so that the nozzle is fully inserted inside it. Screw to secure the two pieces. The tip of the pen should protrude from the adapter
  • Insert the adapter with the pen into the plotter's carriage
  • Using the Silhouette Studio® software, load the design and make the necessary adjustments related to the material you are going to draw on
  • The plotter will draw the design you have created on the chosen surface
Additional Information
Ref. 952657
