More information about the Heart Badges - 57x52mm

INDEX

> Description

> Things to keep in mind

> Templates for customisation

> How to customise badges with the Evolution, Automatic Electric and Pneumatic machines?

> Related posts

DESCRIPTION

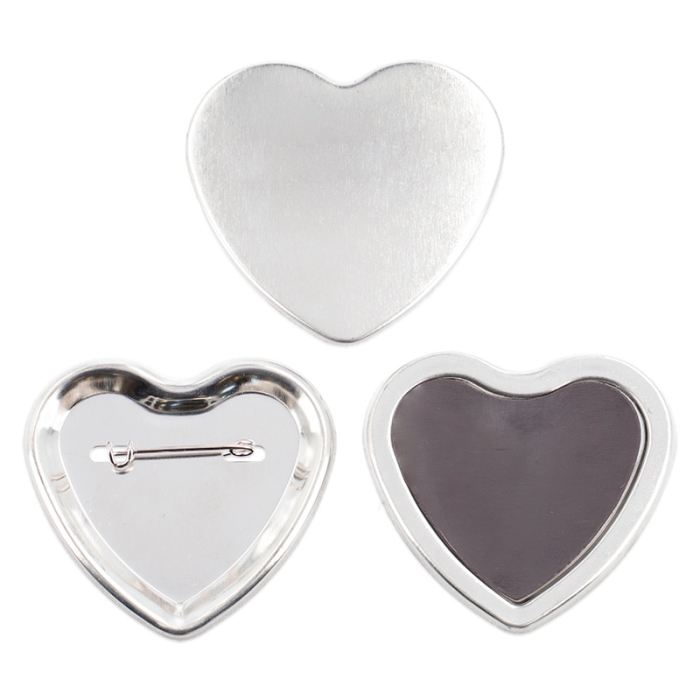

• 1 complete badge consists of:

  • 1 transparent protective sheet (acetate)
  • 1 front metal plate for placing the design
  • 1 rear metal plate, which varies depending on the model
• Chrome steel mould measuring 57 x 52 mm, highly durable + set includes:

  • 20 pin badges
  • 20 magnet badges

THINGS TO KEEP IN MIND

• Compatible with any assembly machine, as long as the shape and size of the badge match
• The magnet for the magnet badges is supplied separately. It is flexible and comes with adhesive to attach it to the back plate
• Each bag of badges includes 20 or 200 complete badge sets (front + back + acetate)
• Both the badges and the mould are compatible with the Evolution, Automatic Electric and Pneumatic assembly machines

TEMPLATES FOR CUSTOMISATION

To view the templates, open the PDF file using Photoshop. Remember to activate the layers:

Special shape badge templates (.pdf - 3.4 MB)

HOW TO CUSTOMISE HEART BADGES WITH THE EVOLUTION, AUTOMATIC ELECTRIC AND PNEUMATIC MACHINES?

STEP 1: Print the design

• Always use a template with cut and bleed guides
• Ensure the design has a margin for folding
• Print on 100–110 g/m² paper for an optimal finish

STEP 2: Cut out the design

• Cut along the outermost edge of the template
• You can use scissors, a die cutter or a plotter depending on the volume and precision required

STEP 3: Assemble the badge

• Install the heart-shaped mould 57 x 52 mm
• Part A of the mould:

  • Place the front plate (sharp edge facing down)
  • Position the cut-out design on top
  • Add the protective sheet
  • Rotate the base to align Part A with the upper part
  • Press the lever and lift it back up
• Part B of the mould:
  • Place the back plate with the sharp edge facing up, aligning it with the pin
  • Rotate the base to align it with the upper part
  • Press the lever again
  • Your badge is now ready
  • For the magnet model, stick the magnet to the back of the badge
