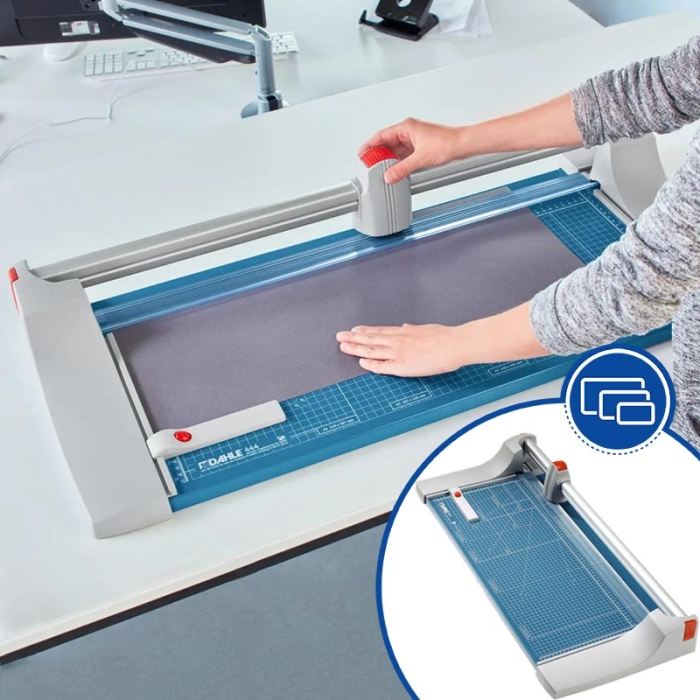

Dahle Rotary Paper Trimmers
Dahle Rotary Paper Trimmers
Dahle rotary paper trimmers with metal table for cutting paper.
Includes circular blade with automatic pressing at both angle stops and at the cutting point.
- Basic and premium models for cutting paper in (DIN) formats: A0, A1, A2 and A3
- Precise rectangular cut at 90º
- Replacement cutting heads available
More information
More information about Dahle Rotary Paper Trimmers
INDEX
> Description
> Technical data
DESCRIPTION
- Easy and convenient system for perfect cutting, with adjustable rear stop
- Self-sharpening circular steel blades
- Easy replacement of the cutting head
- Equipped with two angle stops with mm scale along the cutting edge
- DIN format lines printed on the worktable
- Easy alignment of the material to be cut
- Automatic clamping in the cutting area for quick securing of the material to be cut
TECHNICAL DATA
| |
|
|
|
|
| DIN |
Dimensions
(mm) |
Max. cutting
thickness
(mm) |
Max. number
of sheets
|
Max. cutting
length
(mm) |
| A0 |
1500 x 384 |
2.0 |
20 |
1300 |
| A1 |
1120 x 384 |
2.5 |
25 |
920 |
| A2 |
870 x 384 |
3.0 |
30 |
670 |
| A3 |
710 x 384 |
3.5 |
35 |
510 |
The technical data have been estimated based on paper with a weight of 80 g/m2
