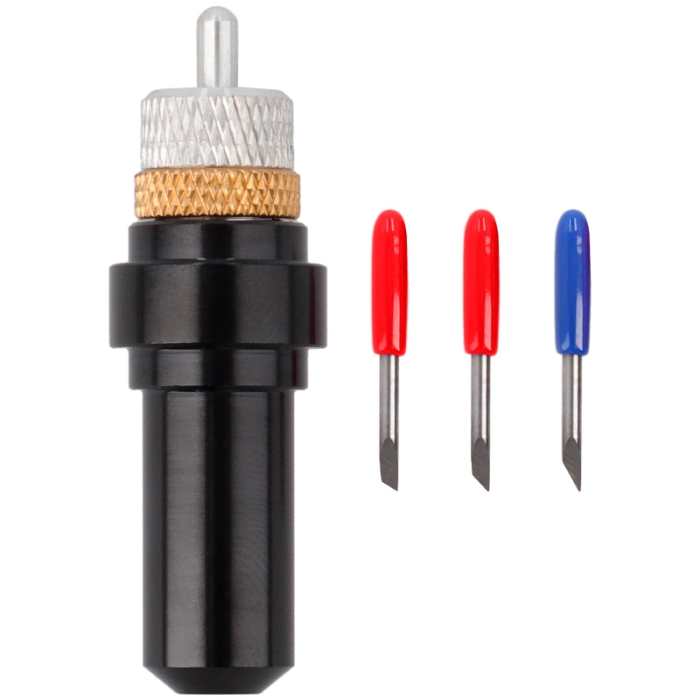

Compatible Blade Holder and Blades - Summa Vinyl Cutter
Compatible Blade Holder and Blades - Summa Vinyl Cutter
Blades compatible with Summa vinyl cutters and their blade holders.
Available for materials: thin (30º), standard (45º), and thick (60º)
More information
More information about the Compatible Blade Holder and Blades - Summa Vinyl Cutter
INDEX
> Description
> Things to keep in mind
> Recommendations
> Specifications
> Measurements
DESCRIPTION
- The blade cutting head is made of cemented carbide. This material provides high hardness and good wear resistance
- Aluminium alloy blade holder with adjustable needle height
THINGS TO KEEP IN MIND
- The colour of the protective cap may be the same on blades of different angles. Ensure it is the correct blade before inserting it
- Make sure to properly fit the blade into the blade holder
- The greater the blade angle, the deeper it will penetrate vertically, allowing for cutting thicker materials
- Conduct preliminary tests on blade placement and adjustment before starting production
RECOMMENDATIONS
- Keep the blade and the inside of the blade holder clean. Accumulation of debris inside will hinder rotation and affect the cutting process
- Perform cuts with the appropriate depth. Avoid cutting through the vinyl's carrier paper or liner
- If the blade is properly adjusted, it will extend its lifespan
SPECIFICATIONS
Reference
|
050423 |
050424 |
050425 |
Blades
|
30º |
45º |
60º |
| Application |
Thin materials |
Standard use |
Thick materials |
| Examples |
Window films |
Vinyl and transfer paper |
Flock, sandblast, cardstock or reflective materials |
MEASUREMENTS
| Blades (mm) |
Ø1.45 x 20 |
| Blade Holder (mm) |
Ø15.8 x 49.7
|
| Gross weight of blades (g) |
16 |
| Net weight of blades (g) |
2 |
| Gross weight of blade holder (g) |
16 |
| Net weight of blade holder (g) |
12 |
