More information about the Button Badges - Ø44mm

INDEX

> Description

> Things to keep in mind

> Compatibility with badge machines

> Templates for customisation

> How to customise Ø44 mm round badges?

> Related posts

DESCRIPTION

• Very durable chrome-plated steel mould

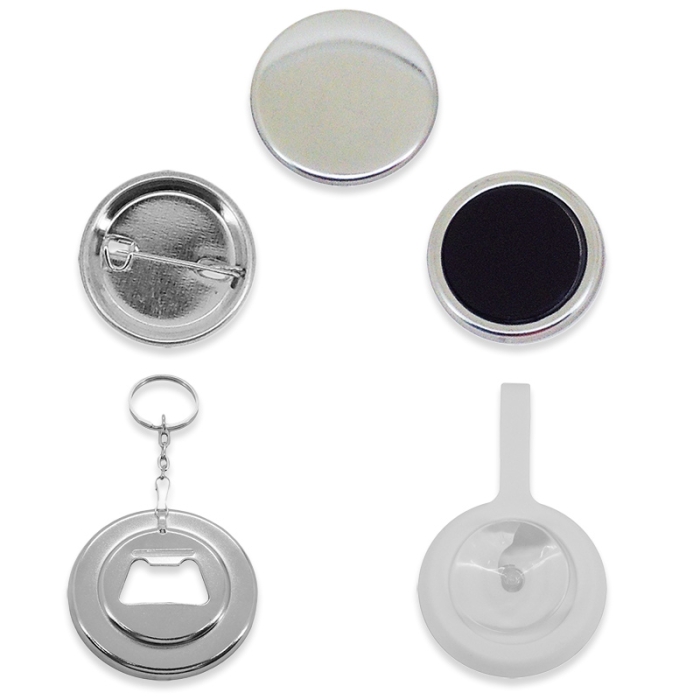

• 1 complete badge consists of:

  • 1 transparent protective sheet (acetate)
  • 1 front metal plate for placing the design
  • 1 rear metal plate, which varies depending on the model


THINGS TO KEEP IN MIND

• Compatible with any assembly machine, provided the shape and size of the sheet metal match
• The magnet for magnetic badges is supplied separately. It is flexible and comes with adhesive to attach it to the back plate
• The hanger back is a white plastic hook with a suction cup to stick the badge to any smooth surface
• Each bag of badges includes 20, 50 or 200 complete badge sets (front + back + acetate)

COMPATIBILITY WITH BADGE MACHINES

*We recommend carrying out preliminary assembly tests with this machine

TEMPLATES FOR CUSTOMISATION

To view the templates, open the PDF file using Photoshop. Remember to activate the layers:

Round badge templates (.pdf - 5.4MB)

HOW TO CUSTOMISE Ø44 MM ROUND BADGES?

STEP 1: Print the design

• Always use a template with cut and bleed guides
• Ensure the design has a margin for folding
• Print on 100–110 g/m² paper for an optimal finish

STEP 2: Cut out the design

• Cut along the outermost edge of the template
• You can use scissors, a die cutter or a plotter depending on the volume and precision required

STEP 3: Assemble the badge

• Install the circular mould of Ø44 mm
• Part A of the mould:

  • Place the front plate (sharp edge facing down)
  • Position the cut-out design on top
  • Add the protective sheet
  • Rotate the base to align Part A with the top part
  • Press the lever and lift it back up
• Part B of the mould:

  • Place 1 or 2 washers in Part B (included with the mould). The quantity depends on the type of back plate, so prior testing is recommended
  • Place the back plate with the sharp edge facing up and align it with the pin. For hanger badges, insert the hook through the side hole of Part B and ensure the back plate is fully inside the mould with the edge facing up
  • Rotate the base to align it with the top part
  • Press the lever again
  • Your badge is now ready
  • For the magnet model, stick the magnet to the back of the badge
