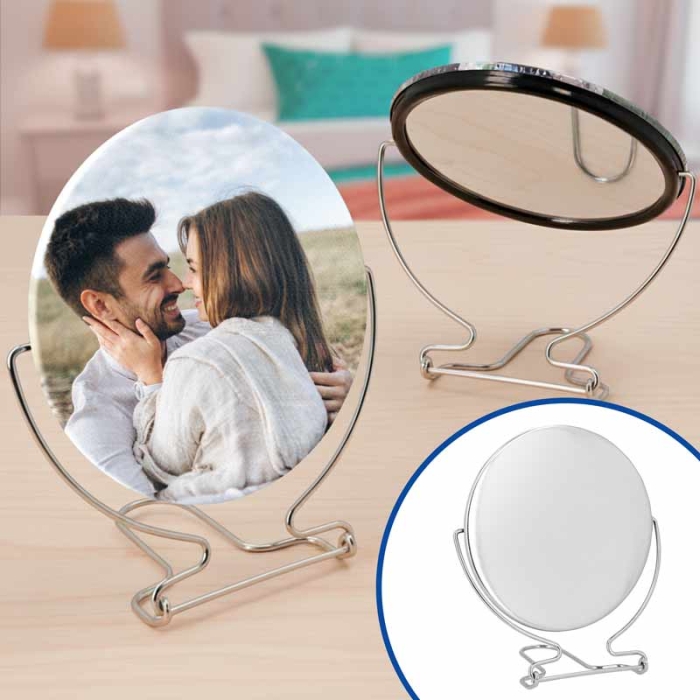

More information about Tabletop Mirrors with Ø100mm Metal Plate

INDEX

> Description

> Things to keep in mind

> Templates for customisation

> How to customise a badge mirror with the Evolution machine?

DESCRIPTION

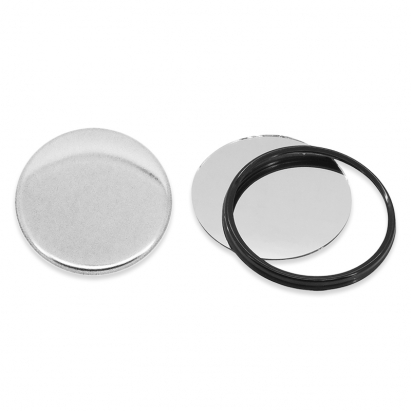

• 1 complete badge mirror set consists of:

  • 1 transparent protective sheet (acetate)
  • 1 front metal plate for placing the design
  • 1 metal stand
  • 1 adhesive foam piece to attach the mirror to the front plate
  • 1 mirror + 1 round black plastic frame (back plate)
• Highly durable chrome steel mould

THINGS TO KEEP IN MIND

• Each bag of badge mirrors includes 10 complete sets (front plate + mirror + acetate + stand + foam + frame)
• Both the badge mirror and the mould are compatible with the Evolution assembly machine

TEMPLATES FOR CUSTOMISATION

To view the template layers, open the PDF file using Photoshop. Remember to activate them:

Round badge templates (.pdf - 5.4MB)

HOW TO CUSTOMISE A BADGE MIRROR WITH THE EVOLUTION MACHINE?

STEP 1: Print the design

• Always use a template with cut and bleed guides
• Ensure the design has a margin for folding
• Print on 100–110 g/m² paper for an optimal finish

STEP 2: Cut out the design

• Cut along the outermost edge of the template
• You can use scissors, a die cutter, or a plotter depending on the volume and precision required

STEP 3: Assemble the badge

• Install the round mould of Ø100 mm. Remember to place the washer in Part A (included with the mould)
• Part A of the mould:

  • Place the front plate (sharp edge facing down)
  • Position the cut-out design on top
  • Add the protective sheet
  • Rotate the base to align Part A with the top section
  • Press the lever and raise it again
• Part B of the mould:
  • Place the frame (edge facing up), then the mirror (face down), and finally stick the foam to the back
  • Place the back plate (sharp edge facing up) in Part B. Align with the pin to ensure correct orientation
  • Rotate the base to align with the top section
  • Press the lever again
  • Your badge is now ready
  • Attach the metal stand by inserting both ends of the stand into the two holes in the frame
