More information about Automatic Tape Dispensers

INDEX

> Description

> Things to keep in mind

> Control panel

> Instructions for use

> Technical data

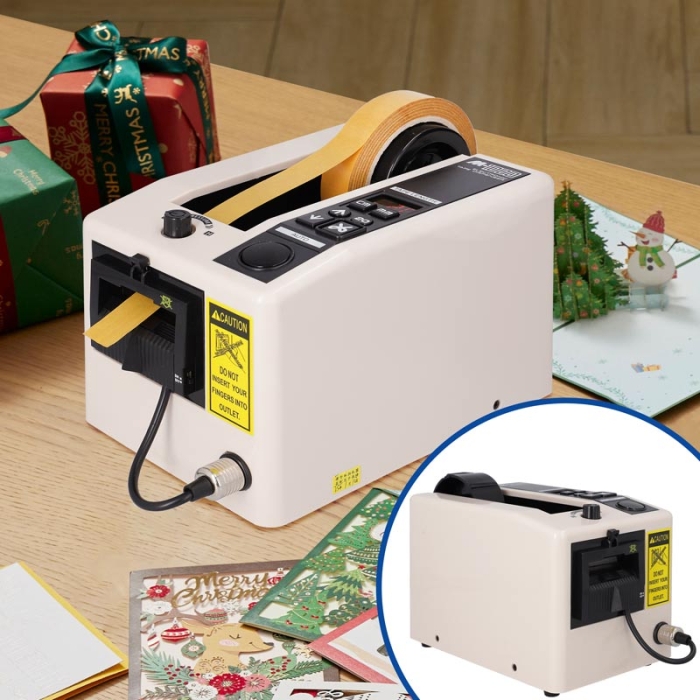

DESCRIPTION

• Different cutting modes. Automatic, which cuts a new strip when the previous one is removed, and manual, which activates cutting by pressing a button
• 3 roll holder sizes in 1, allowing tapes with an inner diameter or core of 2.5 cm, 3.2 cm, and 7.5 cm to be placed
• Allows adjustment of roller pressure according to the thickness of the material. For thin materials, higher pressure is recommended
• Easily adjusts the cutting length on the screen with the cm and mm buttons
• Suitable for adhesive tapes with a maximum outer diameter of 15 cm
• Desktop accessories, very useful for sublimation, crafts, scrapbooking, or packaging work

THINGS TO KEEP IN MIND

• Electric-powered dispensers
• Do not insert fingers into the dispenser's cutting slot. It contains a sharp blade

CONTROL PANEL

• Buttons cm and mm: adjust the cutting length by 1 (mm) and by 10 (cm), displayed on the upper screen
• AUTO Button: press to cut the adhesive tape automatically, provided the sensor is activated
• Button \u2191: rotates the holder counterclockwise to remove the adhesive tape from the roller
• Button 20: resets the cutting length to 20 mm
• Button \u2193: rotates the holder clockwise to feed the adhesive tape into the roller

• “Scissors” Button: press for manual cutting
• Pressure adjustment wheel: adjusts the pressure to pass the material and ensure the tape dispenses straight

INSTRUCTIONS FOR USE

• Connect and turn on the dispenser, the screen indicator will show 20
• Place the adhesive tape in the centre and feed the tape into the roller by pressing the \u2193 button until it slightly protrudes
• Press the “scissors” button to cut the excess adhesive tape
• Adjust the cutting length with the cm and mm buttons
• Adjust the pressure according to the type of adhesive tape used. If the pressure adjustment does not dispense the tape straight, apply more pressure
• Turn on the sensor to work in automatic mode. It is located on the side of the tape exit hole
• You can start working

TECHNICAL DATA
