The most suitable parameter for printing is 300gr coated matte paper
Always print at the actual size, never fit or fit to the page. Depending on the programme you use, you must select the following scales:
In PDF. Page scale: None
In Adobe Illustrator. Scale: Do not change scale
RECOMMENDATIONS FOR THE USE OF PLASTIC SHEETS
Make sure the sheets are acclimatised at the printing site 24 hours in advance
Air the sheets before printing. It is advisable to remove them from the packaging a few minutes before printing
Avoid printing on the fold, as far as possible
RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATION PRINTING
Parameters are given for guidance only. It is recommended to carry out preliminary tests in order to make the necessary adjustments before starting production.
Print the design in mode mirror
Preheat the press to 180 ºC
Place the sheet on the base plate of the iron
Place the pre-printed design on the sheet and fix them with hot-melt tape to prevent them from moving
Close the press at medium pressure for 60 seconds
With the help of a protective glove, remove the freshly printed sheet of paper
https://www.brildor.com/en/a4-plastic-tri-fold-printable-sheet22684A4 Plastic Tri-fold Printable Sheet - Pack of 10 pcs<p class="enlace"><a id="saber-mas"></a> </p>
<h2>More information about the A4 Plastic Tri-fold Printable Sheet - Pack of 10 pcs</h2>
<p> </p>
<p><strong>INDEX</strong></p>
<p>> <a href="#saber-mas1">Description</a></p>
<p>> <a href="#saber-mas2">Things to keep in mind</a></p>
<p>> <a href="#saber-mas3">Dimensions</a></p>
<p>> <a href="#saber-mas4">Template to customise</a></p>
<p>> <a href="#saber-mas5">Recommendations for the configuration of the printer</a></p>
<p>> <a href="#saber-mas6">Recommendations for the use of the sheets</a></p>
<p>> <a href="#saber-mas7">Recommended instructions and parameters for sublimation printing</a></p>
<p>> <a href="#saber-mas8">Recommended environmental conditions</a></p>
<p> </p>
<p><a name="saber-mas1"></a></p>
<p><strong>DESCRIPTION</strong></p>
<ul>

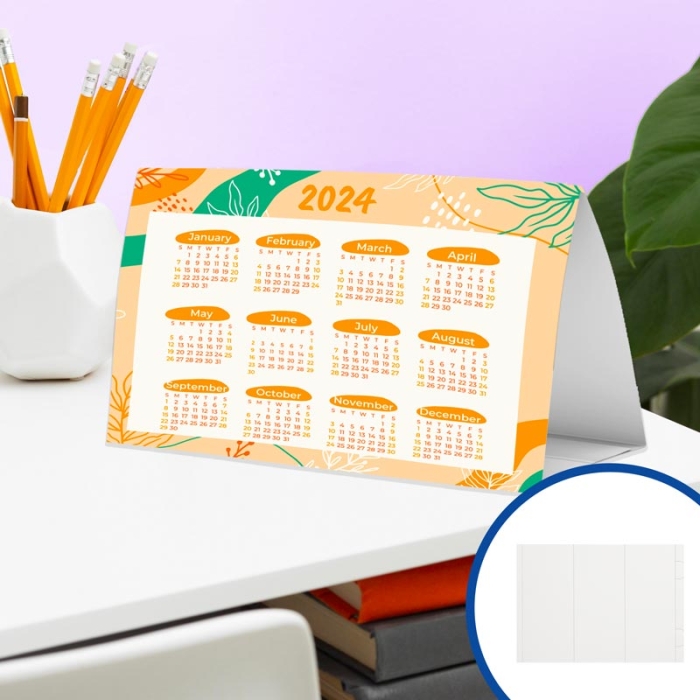

<li>Ideal for personalising menus in tri-fold form, information or advertising leaflets, even for making calendars</li>
<li>Resistant and waterproof material. Water and grease resistant</li>
<li>Each sheet has 2 creases for easy folding. Divides the sheet into 3 printable parts of<span class="azul-negrita"> 9 x 21 cm</span> each</li>
<li>Includes 2 tabs or tabs on one side and on the other side, 2 slots to insert and close the trifold without using adhesive</li>
<li>Suitable for monochrome and full colour printing</li>
<li>Allows thermal transfer and dry toner printing: laser, LED (without oil fuser) and fast fusing</li>
<li>Easy to handle. Can be cut to size, folded and perforated</li>
</ul>
<p> </p>
<p><a name="saber-mas2"></a></p>
<p><strong>THINGS TO KEEP IN MIND</strong></p>
<ul>
<li>Shelf life of paper: 18 months from delivery, provided storage conditions are met</li>
<li>Triptych tabs can be cut off if not required</li>
</ul>
<p> </p>
<p><a name="saber-mas3"></a></p>
<p><strong>DIMENSIONS</strong></p>
<table>
<tbody>
<tr>
<td><strong>Sheet (cm)</strong></td>
<td><span class="azul-negrita">21 x 29,6</span></td>
</tr>
<tr>
<td><strong>Tab (cm)<br></strong></td>
<td><span class="azul-negrita">1.5 x 3<br></span></td>
</tr>
<tr>
<td><strong>Groove (cm)<br></strong></td>
<td><span class="azul-negrita">2,5 <br></span></td>
</tr>
<tr>
<td><strong>Thickness (µ)</strong></td>
<td><span class="azul-negrita">195</span></td>
</tr>
<tr>
<td><strong>Weight (g/m<sup>2</sup>)</strong></td>
<td><span class="azul-negrita">260</span></td>
</tr>
<tr>
<td><strong>Print area (cm)</strong></td>
<td><span class="azul-negrita">21 x 29,6</span></td>
</tr>
<tr>
<td><strong>Weight sheet (g)</strong></td>
<td><span class="azul-negrita">16</span></td>
</tr>
<tr>
<td><strong>Weight pack (g)</strong></td>
<td><span class="azul-negrita">166</span></td>
</tr>
</tbody>
</table>
<p><a name="saber-mas4"></a></p>
<p> </p>
<p><strong>TEMPLATE FOR CUSTOMISATION<br></strong></p>
<p><span style="font-weight: 400;">To view the template, open the PDF file using Photoshop. Remember to activate the layers:<br></span></p>
<p><a title="Template sheet A4 plastic printable trifold sheet " href="https://www.brildor.com/media/upload/descargas/Plantilla_hoja_A4_imprimible_laser_para_menu_forma_triptico.pdf" target="_blank" rel="nofollow noopener">Template sheet A4 plastic printable trifold sheet (.pdf - 0,773 MB)</a></p>
<p> </p>
<p><a name="saber-mas5"></a></p>
<p><strong>PRINTER CONFIGURATION RECOMMENDATIONS</strong></p>
<ul>
<li>Print on the bypass tray of your printer</li>
<li>The most suitable parameter for printing is <strong>300gr coated matte paper</strong></li>
<li>Always print at the actual size, never fit or fit to the page. Depending on the programme you use, you must select the following scales:<br>
<ul>
<li>In PDF. Page scale: None</li>
<li>In Adobe Illustrator. Scale: Do not change scale</li>
</ul>
</li>
</ul>
<p> </p>
<p><a name="saber-mas6"></a></p>
<p><strong>RECOMMENDATIONS FOR THE USE OF PLASTIC SHEETS<br></strong></p>
<ul>
<li>Make sure the sheets are acclimatised at the printing site 24 hours in advance</li>
<li>Air the sheets before printing. It is advisable to remove them from the packaging a few minutes before printing</li>
<li>Avoid printing on the fold, as far as possible</li>
</ul>
<p> </p>
<p><a name="saber-mas7"></a></p>
<p><strong>RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATION PRINTING</strong></p>
<p>Parameters are given for<strong> guidance only</strong>. It is recommended to carry out preliminary tests in order to make the necessary adjustments before starting production.<strong><br></strong></p>
<ul>
<li>Print the design in<strong> mode</strong><strong> mirror</strong></li>
<li>Preheat the press to <span class="azul-negrita">180 ºC</span></li>
<li>Place the sheet on the base plate of the iron</li>
<li>Place the pre-printed design on the sheet and fix them with hot-melt tape to prevent them from moving</li>
<li>Close the press at <strong>medium pressure</strong> for <span class="azul-negrita">60 seconds</span></li>
<li>With the help of a protective glove, remove the freshly printed sheet of paper</li>
<li>Carefully remove the paper</li>
</ul>
<p> </p>
<p><a name="saber-mas8"></a></p>
<p><strong>RECOMMENDED ENVIRONMENTAL CONDITIONS <br></strong></p>
<table>
<tbody>
<tr>
<td><strong>Temperature of the printing site</strong></td>
<td><span class="azul-negrita">10º </span>to<span class="azul-negrita"> 30 ºC</span></td>
</tr>
<tr>
<td><strong>Relative humidity of the printing site</strong></td>
<td>40% - 55% </td>
</tr>
<tr>
<td><strong>Operating temperature</strong></td>
<td><span class="azul-negrita">-40º</span> to<span class="azul-negrita"> 120 ºC</span></td>
</tr>
<tr>
<td><strong>In-use relative humidity</strong></td>
<td>10% - 100%</td>
</tr>
<tr>
<td><strong>Storage temperature</strong></td>
<td><span class="azul-negrita">10º </span>to<span class="azul-negrita"> 20 ºC</span></td>
</tr>
<tr>
<td><strong>Storage relative humidity</strong></td>
<td>20% - 55%</td>
</tr>
</tbody>
</table>
<p> </p>https://www.brildor.com/media/catalog/product/h/o/hoja-a4-plastica-imprimible-tripticos-principal.jpg7.99outofstock7.997.9900000https://www.brildor.com/media/catalog/product/h/o/hoja-a4-plastica-imprimible-tripticos-principal.jpg22683226862268822697/Print Media/Print Media/Láminas plásticas2021-07-24T05:39:07+0000
