Sublimmation Ceramic Stackable Glass
Sublimmation Ceramic Stackable Glass

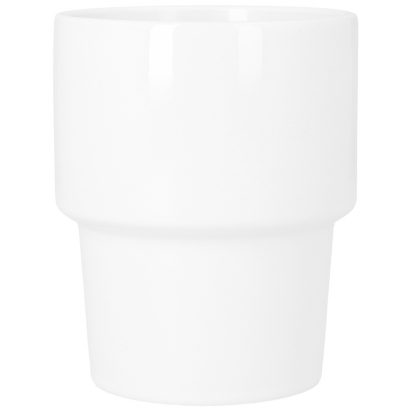

Stackable cup of 12 oz printable using the technique of dye sublimation printing.
- From white ceramic with a gloss finish
- Top and bottom can be sublimated separately
Related Products
More information about the Sublimation Ceramic Stackable Glass
INDEX
> Recommended instructions and parameters for sublimation printing
DESCRIPTION
- Ideal for personalising several cups with designs and when stacked together, they will form an original composition
- Useful as a no handle mug to save storage space in the kitchen, pencil pot or planter
- Lower part of smaller diameter to fit into other mugs of the same type
- Resistant to microwave and dishwasher
- Can also be customised using other techniques such as DTF, screen printing, transfer y self-adhesive vinyl
- In the Related Products you will find different models of presentation boxes suitable for this cup
THINGS TO KEEP IN MIND
- You can sublimate the bottom part using the heat shrink bags, one stripping gun and a sublimation oven. The upper part can be sublimated with as well as with a heat pressas well as with sublimation oven
DIMENSIONS
| Maximum capacity (oz ≈ ml) |
12 ≈ 360 |
| Inner diameter (cm) |
Ø7.3 |
| Outside diameter (cm) |
Ø8.4 |
| Base (cm) |
Ø6.1 |
| Height (cm) |
10.3 |
| Thickness (mm) |
3 |
| Top area (cm) printable top (cm) |
26.5 x 5.5 |
| Bottom area (cm) printable bottom (cm) |
21.5 x 4 |
| Weight (g) |
318 |
RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATION PRINTING
Parameters given for guidance only. It is recommended to carry out preliminary tests in order to make the necessary adjustments before starting production.
WITH CUP PLATE
- Print the design in mode mirror
- Preheat the press to 200 ºC
- Place the printed paper around the glass, and stick it with adhesive tape thermal
- Close the press at medium pressure for 180-200 seconds
- With the help of a protective glove, remove the freshly printed glass.
- Carefully peel off the paper
WITH A SUBLIMATION OVEN
- Print the design in mode mirror
- Preheat the press to 200 ºC
- Place the printed design in mirror image around the beaker and fix it using adhesive heat tape.
- Tighten the clamp, or insert the beaker into a heat shrinkable bag heat shrink and heat with the heat shrink stripping gun avoiding the formation of wrinkles. You can also use a silicone sheet
- Sublimate in the oven for 8 minutes
- Using a protective glove, remove the wrap, the silicone sheet, or the bag, depending on the accessory you used
- Carefully peel off the paper of the glass
| Ref. | 038202 |
|---|---|
| Net Weight (kg) | 0.318 |
| Gross Weight (kg) | 0.319 |
| Billable Weight (kg) | 0.350000 |
| Dimensions (mm) | Ø85 x 105 |
| Print area (mm) | 270 x 55 (superior) y 220 x 40 (inferior) |
| Thickness (mm) | 3 |
| Colour | White |
| Surface material | Ceramic |
| Items | Glasses |
| Marking techniques | Dye sublimation |
