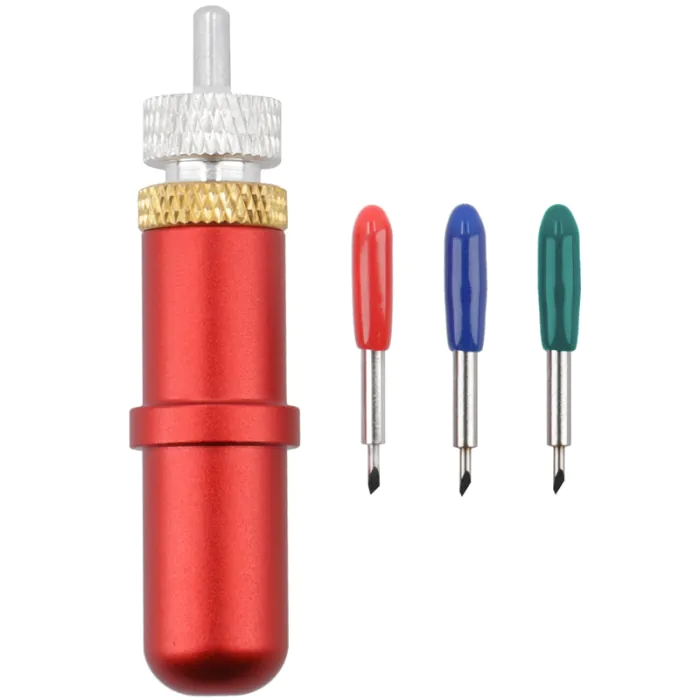

Original Siser blades and their blade holder for Romeo and Juliet cutting plotters.
- 45º: for vinyl and thin materials
- 60º: for thick or textured materials

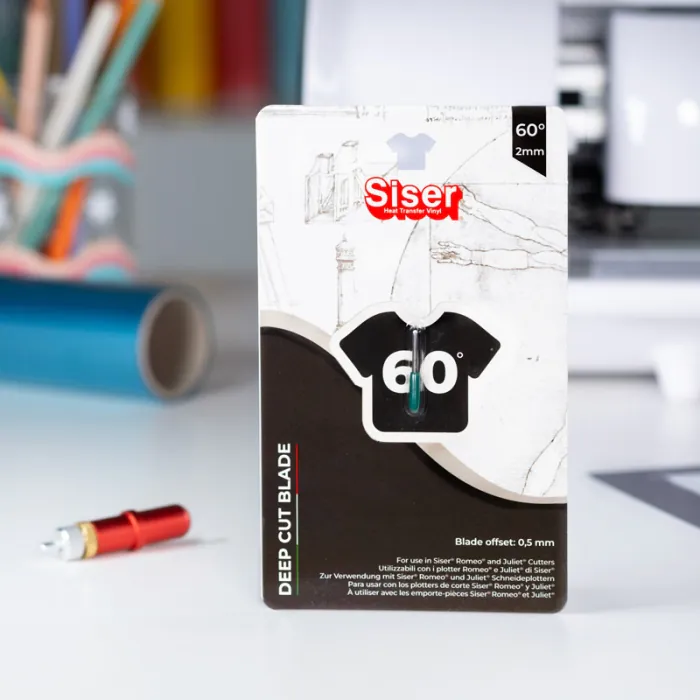

- Deep Cut: for materials up to 2 mm
More information
More information about the Blade Holders and Blades - Siser Cutting Plotters
INDEX
> Description
> Things to Keep in Mind
> Recommendations
> Specifications
> Measurements
DESCRIPTION

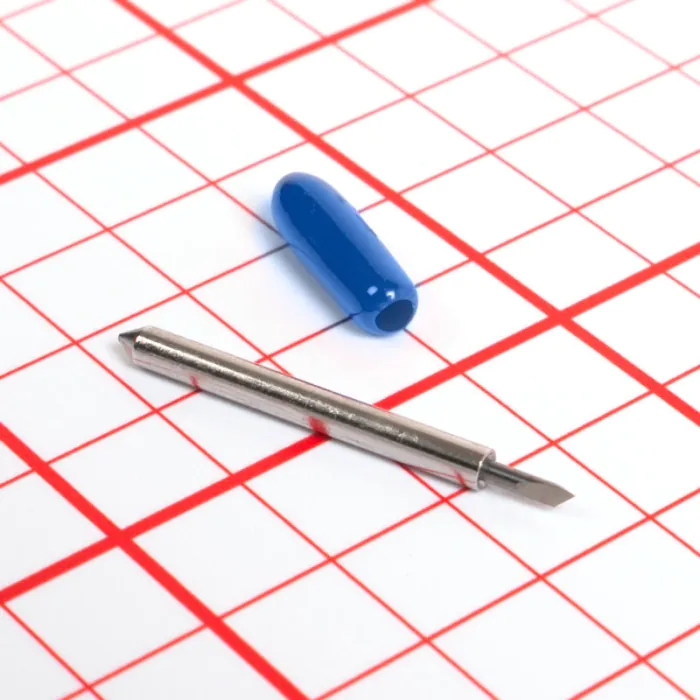

- Cutting head with cemented carbide blades, featuring high hardness and good wear resistance

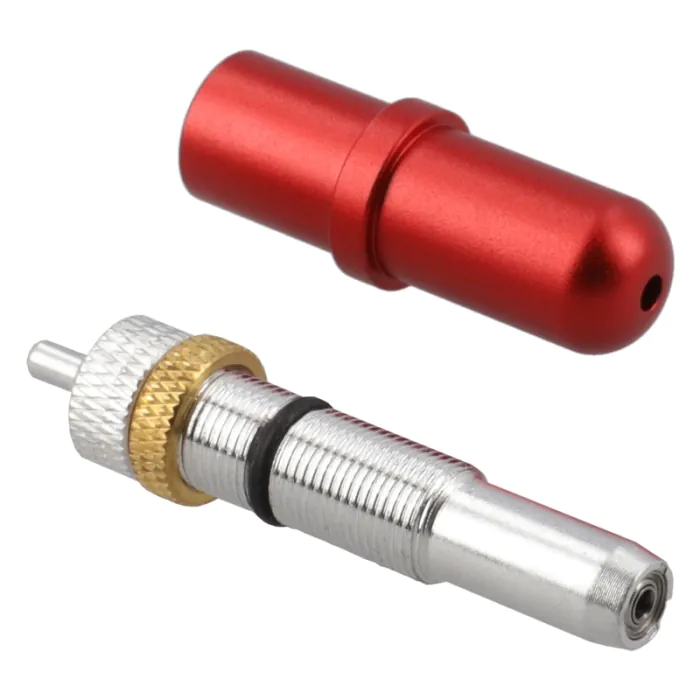

- Anodised aluminium blade holder with adjustable needle height
- Easily replace the blade, as the internal magnet of the blade holder allows for quick fitting
THINGS TO KEEP IN MIND
- Ensure the blade is correctly fitted into the blade holder

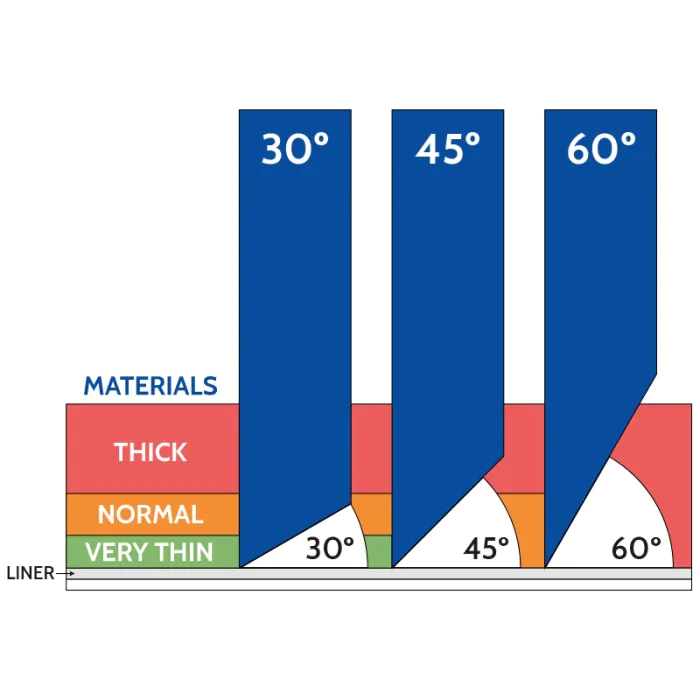

- The greater the blade angle, the deeper it will penetrate vertically, allowing for cutting thicker materials

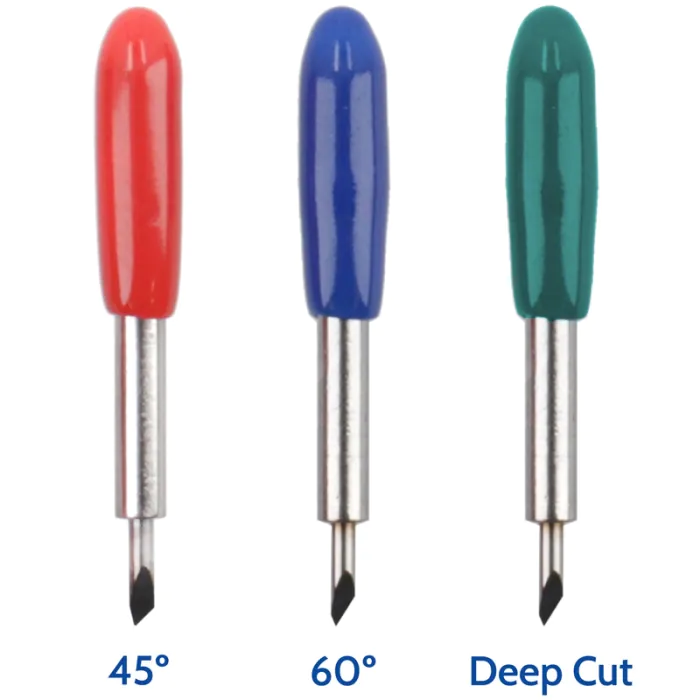

- The colour of the protective cap helps identify the blades: red for 45º, blue for 60º, and green for Deep Cut
- Conduct preliminary tests on blade placement and adjustment before starting production
RECOMMENDATIONS
- Keep the blade and the inside of the blade holder clean. Accumulation of debris inside can hinder rotation and affect the cutting process
- Make cuts with the appropriate depth. Avoid cutting through the vinyl carrier paper or liner
- If the blade is correctly adjusted, you will extend its lifespan

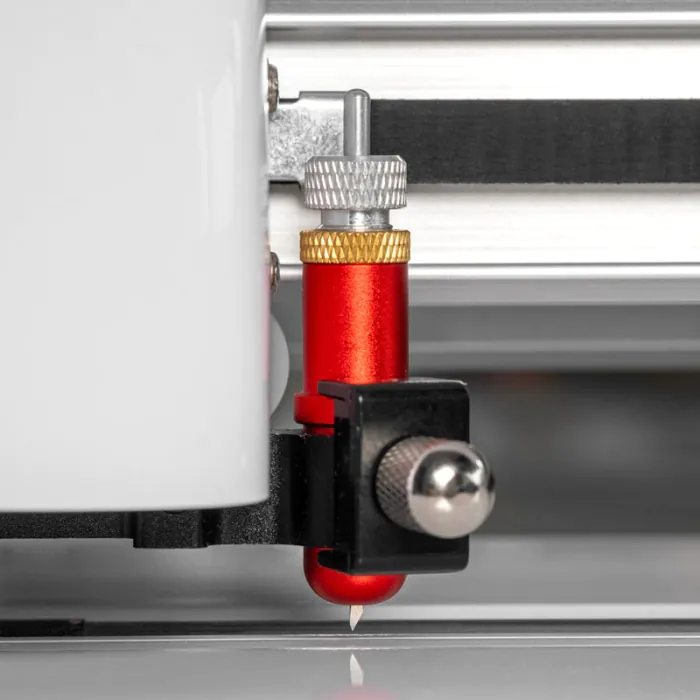

- To adjust the blade height, turn the inner ring with the main screw and tighten the ring to lock the blade
SPECIFICATIONS
| Ref. |
054130 |
054131 |
056467 |
| Blades |
45º |
60º |
60º
Deep Cut |
| Offset (mm) |
-- |
-- |
0.5 |
| Application |
Standard use |
Thick materials |
Very thick materials:
faux leather, magnet,
felt or EVA foam |
MEASUREMENTS
| Blades (mm) |
Ø2.5 x 23 |
| Blade Holders (mm) |
Ø14 x 55 |
