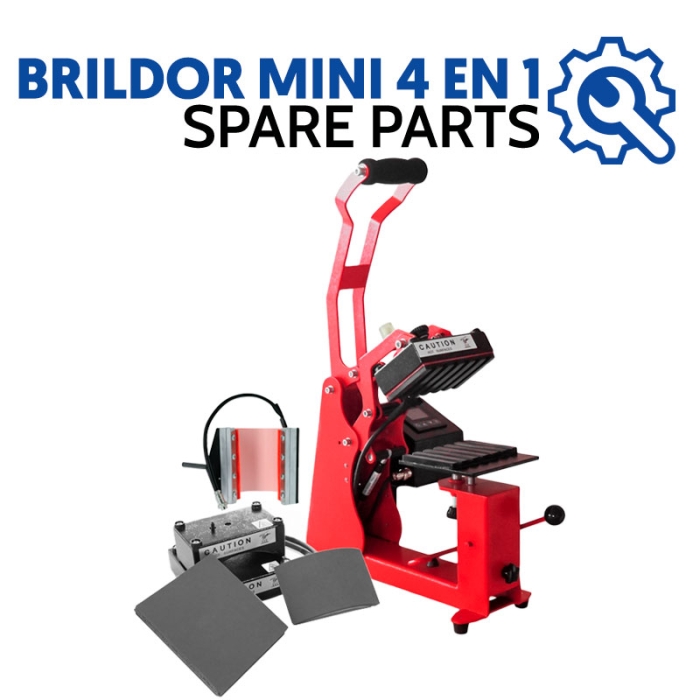

More information about the Spare Parts for Brildor Mini 4-in-1 Combo Press

INDEX

> Description of the replacements

> Exploded view

> Warranty

DESCRIPTION OF THE REPLACEMENTS

Cylindrical heating element 10-11oz

Ref. 040928

Heating part. Dimensions: Ø7.5 - Ø9.5 x 13 cm

Flat plate heating element

Ref. 0040139

Heating part. Dimensions: 15 x 15 cm.

Flat plate and heating element

Ref. 0038908

Set for transfers on flat surfaces. Pressing surface: 15 x 15 cm.

Plate and heating element for caps

Ref. 038907

Set for transfers on caps or any curved surface. Pressing surface: 15 x 8 cm.

Heating element for 6 pens

Ref. 046717

Heating part. Dimensions: 15 x 10 cm.

Plate and heating element for 6 pens

Ref. 038909

Set with 6 cavities for transfers on pens, markers, etc. Each cavity measures: 1 x 0.7 x 10 cm approximately. Dimensions: 15 x 10 cm.

Limit switch

Ref. 029429

End-of-travel micro switch.

GY-10 digital controller

Ref. 053947

Dimensions: 7.2 x 7.2 x 4 cm.

EXPLODED VIEW

Combo Brildor Mini 4-in-1 Press Manual (.pdf - 697 kB)

WARRANTY

Replacements: 3 months

The period starts from the invoice date.
