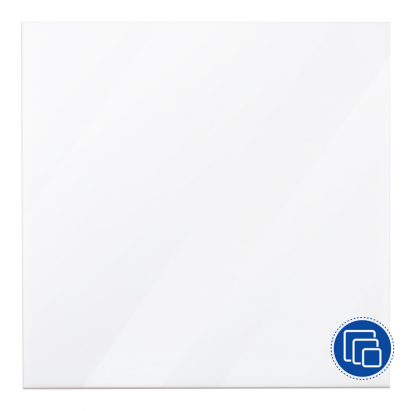

Sublimation Tiles - Square

Square-shaped tiles you can personalise using dye sublimation printing.

  • Made of floss finish white ceramic
  • Available in different sizes, all 5 mm thick
  • Ideal for decoration, to use as placemats or to make original posters

More information



Availability:
Shown on each product
Product
Price
Availability
Qty
4.5x4.5 Ref: 049932
Square White Tile 45x45mm
€0.89 VAT not included / Each Unit
  • Buy 12 for €0.80 each
  • Buy 144 for €0.71 each
  • Buy 1728 for €0.62 each
Availability Immediate: 599 units
5x5 Ref: 000201
Square White Tile 48x48mm
€0.89 VAT not included / Each Unit
  • Buy 12 for €0.80 each
  • Buy 144 for €0.71 each
  • Buy 1728 for €0.62 each
Availability Immediate: 0 units
Expected entries:

27/01/23: 360 units
10x10 Made in EU Ref: 000205
Square White Tile 97x97mm - Made in Europe
€1.49 VAT not included / Each Unit
  • Buy 12 for €1.34 each
  • Buy 144 for €1.19 each
  • Buy 1728 for €1.04 each
Availability Immediate: 184 units
10x10 Ref: 000083
Square White Tile 108x108mm
€0.80 VAT not included / Each Unit
  • Buy 12 for €0.72 each
  • Buy 144 for €0.64 each
  • Buy 1728 for €0.56 each
Availability Immediate: 0 units
Expected entries:

27/01/23: more than 500 units
15x15 Made in EU Ref: 020031
Square White Tile 147x147mm - Made in Europe
€2.10 VAT not included / Each Unit
  • Buy 12 for €1.89 each
  • Buy 144 for €1.68 each
  • Buy 1728 for €1.47 each
Availability Immediate: 0 units
Expected entries:

30/11/22: 350 units
02/12/22: 350 units
15x15 Ref: 000084
Square White Tile 152x152mm
€1.50 VAT not included / Each Unit
  • Buy 12 for €1.35 each
  • Buy 144 for €1.20 each
  • Buy 1728 for €1.05 each
Availability Immediate: 0 units
Expected entries:

31/01/23: more than 500 units
20x20 Made in EU Ref: 000206
Square White Tile 198x198 mm - Made in Europe
€1.99 VAT not included / Each Unit
  • Buy 12 for €1.79 each
  • Buy 144 for €1.59 each
  • Buy 1728 for €1.39 each
Availability Immediate: 333 units
20x20 Ref: 009469
Square White Tile 202x202mm
€2.10 VAT not included / Each Unit
  • Buy 12 for €1.89 each
  • Buy 144 for €1.68 each
  • Buy 1728 for €1.47 each
Availability Immediate: 0 units
Expected entries:

27/01/23: 1008 units
View Price
VAT not included
Reward Points
Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program Get free € to redeem on your next order by buying these products. Discover the Brildor Loyalty Program



More information about the white square sublimation tiles



INDEX

> Description

> Dimensions/ Print area

> Recommended instructions and parameters for sublimation printing

Recommendations

Remarks

With a heat press - Direct method

With a heat press - Indirect method

With sublimation oven





DESCRIPTION

  • We offer both European and non-European tiles, the only difference being the size
  • Our white sublimation tiles have a high-quality polyester coating, which gives them maximum durability and uniformity in the print
  • With these blank tiles, you can print photos as personalised gifts or you can also create decorative elements if you customise them with motivational or funny phrases, quotes or beautiful images. You can even create an eye-catching collage made up of several tiles
  • If you live in a tourist area, you can also make souvenirs with the most representative images of your city
  • Suitable for sublimation because of their polyester coating on the glazed side
  • Reverse side in natural ceramic
  • Can be personalised with a flat heat press or sublimation oven
  • Depending on the batches, they may have small irregularities on their surface, which you can avoid thanks to the Nomex pads, which you will find in the Related Products. You will also find heat shrink bags in case you want to sublimate them in the oven





DIMENSIONS / PRINT AREA

Reference no Range
Dimensions (cm)
049932
4.5x4.5 4.5 x 4.5
000201 5x5 4.8 x 4.8
000205 10x10 Made in EU 9.7 x 9.7
000083 10x10 10.8 x 10.8
020031 15x15 Made in EU 14.7 x 14.7
000084 15x15 15.2 x 15.2
000206 20x20 Made in EU 19.8 x 19.8
009469 20x20 20.2 x 20.2





RECOMMENDED INSTRUCTIONS AND PARAMETERS FOR SUBLIMATION PRINTING



BEFORE STARTING THE SUBLIMATION PROCESS

If the tile has been stored in a cold place, it is possible that moisture has accumulated and this can affect the sublimation. In these circumstances, you should:

  • Pre-press or pre-heat the tile with the printable side up and protective paper at 175ºC for 5-10 seconds, medium/high pressure
  • Let the tile cool before sublimating it



RECOMMENDATIONS

  • These tiles can be sublimated with a flat heat press using either the direct or the indirect method. Testing is recommended to determine which of these methods produces the highest quality print. Also, testing will allow you to make adjustments to the sublimation parameters
  • The larger the tile, the longer the pressing time should be. For the indirect method: 300 seconds will suffice for tiles measuring 10 x 10 cm, 320-350 seconds for 15 x 15 cm tiles and 360-400 seconds for 20 x 20 cm tiles
  • A sign that the transfer process has lasted the right time is that the amount of residual ink on the paper is minimal
  • It is important to follow the colour profile guidelines of each ink manufacturer
  • Tiles may have irregularities on the printable side. If you decide to use the direct sublimation method with a heat press, the following is recommended for a homogeneous heat transfer: (1) once the pressing time is over, open the press and without removing the tile, lift the paper slightly from one corner (without removing it completely); (2) if the image has not been transferred correctly on the surface of the tile, replace the paper and turn the tile 180º. Press again for another 50 seconds



REMARKS

  • Ref. 000205 is a mesh-backed tile It should be removed before sublimating the tile to prevent it from burning during the heat transfer process
  • In tests carried out with the Ref. 000083 tile, we have obtained good results with the following parameters: 180ºC/medium-high pressure/180 s (direct method) and 180ºC/medium-high pressure/700 s (indirect method)



WITH A FLAT HEAT PRESS - DIRECT METHOD

  • Print the paper in mirror image and trim it
  • Preheat the press to 180ºC
  • Use a Nomex pad on the lower platen of the press for even heat distribution
  • Place the printed paper on the tile and fix it with heat-resistant tape. Place the tile and paper with the printable side up on the press
  • Press for 180 seconds, medium-heavy pressure. You may need to adjust the pressing time slightly depending on the size of the tile
  • Using a protective glove, remove the newly printed tile
  • Carefully peel off the printed paper



WITH A FLAT HEAT PRESS - INDIRECT METHOD

  • Print the paper in mirror image and trim it
  • Preheat the press to 180ºC
  • Use a Nomex pad on the lower platen of the press for even heat distribution
  • Place the printed paper on the tile and fix it with heat-resistant tape. Place the tile and paper with the printable side up on the press
  • Press for 300 seconds, medium-heavy pressure Depending on the size of the tile, you may have to increase the pressing time slightly (see Recommendations section)
  • Using a protective glove, remove the newly printed tile
  • Carefully peel off the printed paper



WITH A SUBLIMATION OVEN

  • Print the design you want to print on the tile in mirror image
  • Preheat the oven to 175ºC
  • Place the printed design face down on the white side of the tile and fix it with heat-resistant tape
  • If you use a 3D oven, place the tile with the printed side facing upwards. Close the membrane and create a vacuum. Make sure that no air bubbles remain on the surface
  • Another option is using heat shrink bags. With the help of a heat gun, shrink the design to the tile, removing all the air from inside
  • Close the oven for 13 minutes
  • Open the oven and take out the freshly sublimated tile with the help of a protective glove
  • Remove the paper carefully





More Information
Ref. 914084
Thickness (mm) 5
Colour White
Surface material Ceramic
Items Tiles, Ceramics
Marking techniques Dye sublimation
