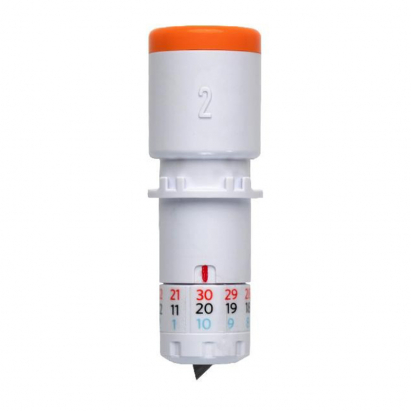

More information about the 3 mm Kraft Blade for Cameo 4
The blade is automatically detected by the Silhouette Studio software. You will not need to select it.
Stainless steel blade, suitable for cutting materials up to 3 mm thick.
Manual adjustment of the cutting depth by twisting the lower part until the red line points to the desired value.
It may be recommended to use a strong-tack cutting mat when using the 3 mm Kraft Blade with certain materials.
It is convenient to cut heavier media gradually (using a series of passes), and manually adjust each material’s settings separately. This will prevent the blade from digging into the mat which could mess up the entire cut.
Presented in 2-unit blister packs.
INSTRUCTIONS FOR USE
Adjust the length of the blade according to the material to be cut.
Insert the blade in the right tool holder (Tool Holder 2).
Lock the tool by pushing the lock lever all the way in.
When working with a new type of material, you should always run some tests to find which settings will give you better results.
Once the design is ready in Silhouette Studio, click on “SEND” (top-right corner).
Select the settings for the material you will be cutting and send the design to the plotter.
