Laser Cut Heat Transfer Film - Sef Laval LaserFlex
Laser Cut Heat Transfer Film - Sef Laval LaserFlex

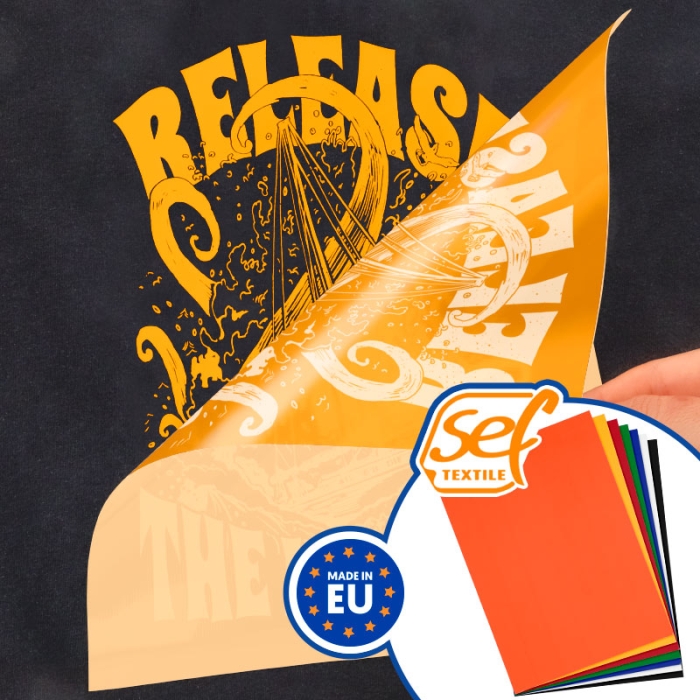

Heat transfer vinyl for laser cutting. Designed to cut complex or detailed designs as it does not require weeding.
- Made of 60 μ thick polyurethane
- Suitable for fabrics made of cotton, polyester and their blends
- Sale unit: DIN A3 sheets (29.7 x 42 cm)
More information
More information about the Laser Cut Heat Transfer Film - Sef Laval LaserFlex
INDEX
> Description
> Things to keep in mind
> Technical characteristics
> Cutting instructions
> Transfer parameters
> Application instructions
> Wash resistance
> Related posts
> Colour card and data sheet
DESCRIPTION
LASERFLEX is a water-based PU (polyurethane) film for transferring your designs on fabrics without water-repellent impregnation.
- The vinyl is cut as an engraving and therefore does not need to be weeded
- The image resolution should be at 500-600 dpi
- Made in France by Sef Laval
THINGS TO KEEP IN MIND
- The cutting configuration of the laser machine will depend on each model. For this reason, we recommend carrying out preliminary tests to establish the appropriate parameters
- The vinyl will leave a dust residue on the machine after cutting. It is advisable to clean this residue when you have finished cutting the vinyl
TECHNICAL CHARACTERISTICS
| Vinyl |
Water-based polyurethane |
| Thickness (µ) |
60 |
| Includes transporter |
No |
| Fabrics |
Polyester, cotton and cotton-polyester blends |
| Laser cutting |
Yes |
| Discard |
Warm / Cold |
CUTTING INSTRUCTIONS
- Place a 3 mm wooden board on the laser machine to avoid reflections from the work bed
- Place the vinyl on the wooden board with the liner side down
- Fix the vinyl to the wooden board using adhesive tape so that it does not move due to the compressed air from the machine
- Go to Maintain then press Release Motors to adjust the height of the laser head so that it is correctly focused
- Load the image and place it in the correct position
- In the document settings, adjust the resolution between 500-600 dpi
- Now go to the Layer panel and set the cutting speed and cutting power
- Start cutting
For the Flux Beamo we have used the following settings:
- Print resolution: 500 dpi
- Power: 21%
- Speed: 110 mm/s
TRANSFER PARAMETERS
- Knife blade: 45º
- Temperature: 165ºC
- Time: 17 seconds
- Pressure: 2.5 - 3.0 bar [medium pressure]
APPLICATION INSTRUCTIONS
- Wipe off any dust from the vinyl with a dry cloth
- Trim off the excess white edges of the vinyl
- Preheat the press to 160ºC
- Place the garment on the press and pre-press for 4-5 seconds to remove wrinkles and moisture from the fabric
- Position the vinyl over the garment and cover with protective paper
- Press for 17 seconds, medium pressure
- Cool peel the liner
- Place the protective paper over the vinyl and press again for 5 seconds with the same parameters
WASH RESISTANCE
- Washing resistance: 60ºC max
RELATED POSTS
Cutting vinyl: How to choose the one your garment needs
Laser cutting and engraving: everything you can do
COLOUR CARD AND DATA SHEET
LaserFlex colour card and data sheet (pdf - 0.45 MB)
