Very useful for drying screen printing frames after emulsion application or washing
Drying process through hot air recirculation

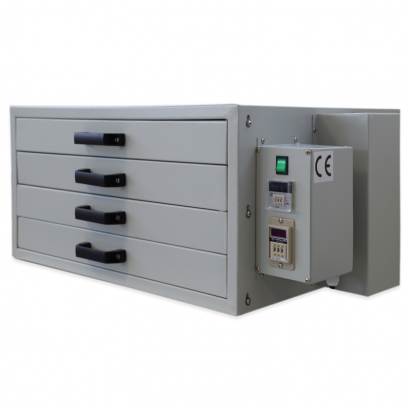

Highly durable grey stainless steel casing. Includes 4 black plastic handles for opening and closing the drawers
Equipped with an internal fan that ensures a balanced temperature throughout the oven, thus improving drying efficiency
Fully extendable horizontal drawers that slide out via side guides
Once the programmed drying time is observed to have ended, it must be turned off manually
With European Community (CE) conformity certificate

CONTROLLER BUTTONS

Green single-pole switch for turning on or off
6 buttons on the temperature controller: 3 buttons at the top to decrease the temperature in 3-digit format and 3 more at the bottom to increase the temperature
6 buttons on the timer: 3 buttons at the top to decrease the time in 3-digit format and 3 more at the bottom to increase the time

HOW DOES THIS OVEN WORK?

Prepare your screen and place it in one of the oven drawers
Press the power switch down. The timer and temperature controller will turn on simultaneously
Set the temperature and time according to your screen's requirements, keeping in mind that it does not alert once the time is up. Turning off is manual
Under normal conditions with a temperature of 65 °C for approximately 2 minutes is sufficient
Open the drawer carefully and remove the screen with a protective glove

TECHNICAL DATA

Shut-off	Manual
Control panel	LCD screen
Tray dimensions (cm)	64 x 53 x 4
Maximum temperature (ºC)	78
Voltage (V)	220
Power (W)	2000
Packaging (cm)	92 x 65 x 44
Net weight (kg)	51

WARRANTY

As stipulated by law in: General Terms and Conditions for the Sale of Goods

Additional Information

More Information
Ref.	038701
Net Weight (kg)	51
Gross Weight (kg)	56.1
Billable Weight (kg)	69.0900
Height (mm)	360
Width (mm)	750
Depth (mm)	610
Maximum Screen Size (mm)	500 x 600
Voltage (V)	220
Power (W)	2000
