High-quality Filafresh® filaments by Tecnikoa, scented in various colours and fragrances for 3D printing. Ideal for printing semi-rigid objects that emit different aromas thanks to natural additives.
Suitable for printing various everyday objects such as jewellery, phone or tablet cases, stress balls, keyrings, and even air fresheners or diffusers
Their odour property allows for the development of 3D pieces suitable for the visually impaired or sensory and language development therapies with olfactory stimulation toys
Developed with natural additives that provide intense fragrances lasting up to 2 years indoors
Semi-rigid structure that facilitates printing with a smooth and pleasant finish to the touch
Similar to PLA filaments in extrusion temperatures but with greater compression and tensile strength
100% recyclable and non-toxic material, perfect for children or pets
High resistance to abrasion, wear, impact, and temperatures up to 80 ºC
Compatible with 3D printers with direct or bowden extruders

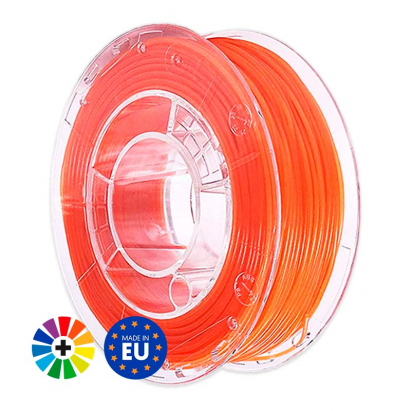

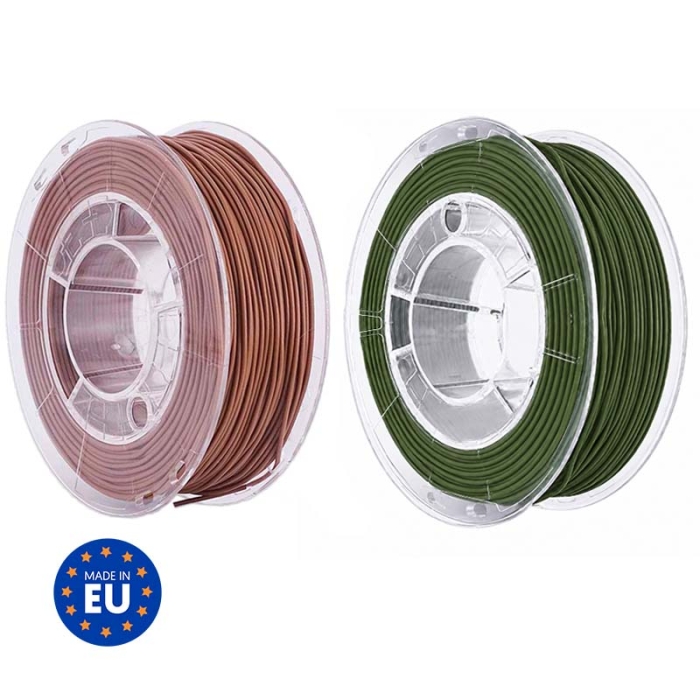

Presented vacuum-packed and wound on a transparent plastic spool or reel inside a cardboard box
THINGS TO KEEP IN MIND
TPU is a material prone to absorbing moisture. When this happens, the filament bubbles or "cracks" during printing
To remove moisture, you can use any of the following strategies:
Leave the filament in a closed room with a dehumidifier for 24 hours
Place the filament in an oven at a temperature of 60 °C for 2 hours
(*) Indicative values. It is advisable to conduct tests with the 3D printer to determine the most suitable parameters.
APPROXIMATE DIMENSIONS
Spool (cm)
Ø14 x 4.2
Filament weight (kg)
0.25
Spool with filament weight (kg)
0.39
Presentation box (cm)
16 x 6 x 16
Box weight (kg)
0.45
STORAGE AND PRESERVATION
Filaments tend to absorb moisture from the environment, leading to printing or finish issues. Therefore, it is important to maintain the relative humidity between 10-15%
Moisture degrades the filament, causing clogs in the extruder and altering its physical and mechanical properties
To keep the filament in good condition and preserve its scent for as long as possible, proper storage and drying processes are important
The filament should be stored in airtight and preferably vacuum-sealed containers. Zip bags with silica gel beads, vacuum-sealed bags, or vacuum-sealed food containers can be used
There are various techniques to remove moisture, including:
Conventional methods such as drying in a domestic oven or a food dehydrator. At low temperatures and for long periods
Professional methods such as filament dryers
The lifespan of a filament can vary depending on several factors; hence, it is important to follow the manufacturer's recommendations regarding drying and storage parameters
